STAND - REAR BRAKE
PV50 1990 (L) (E01)

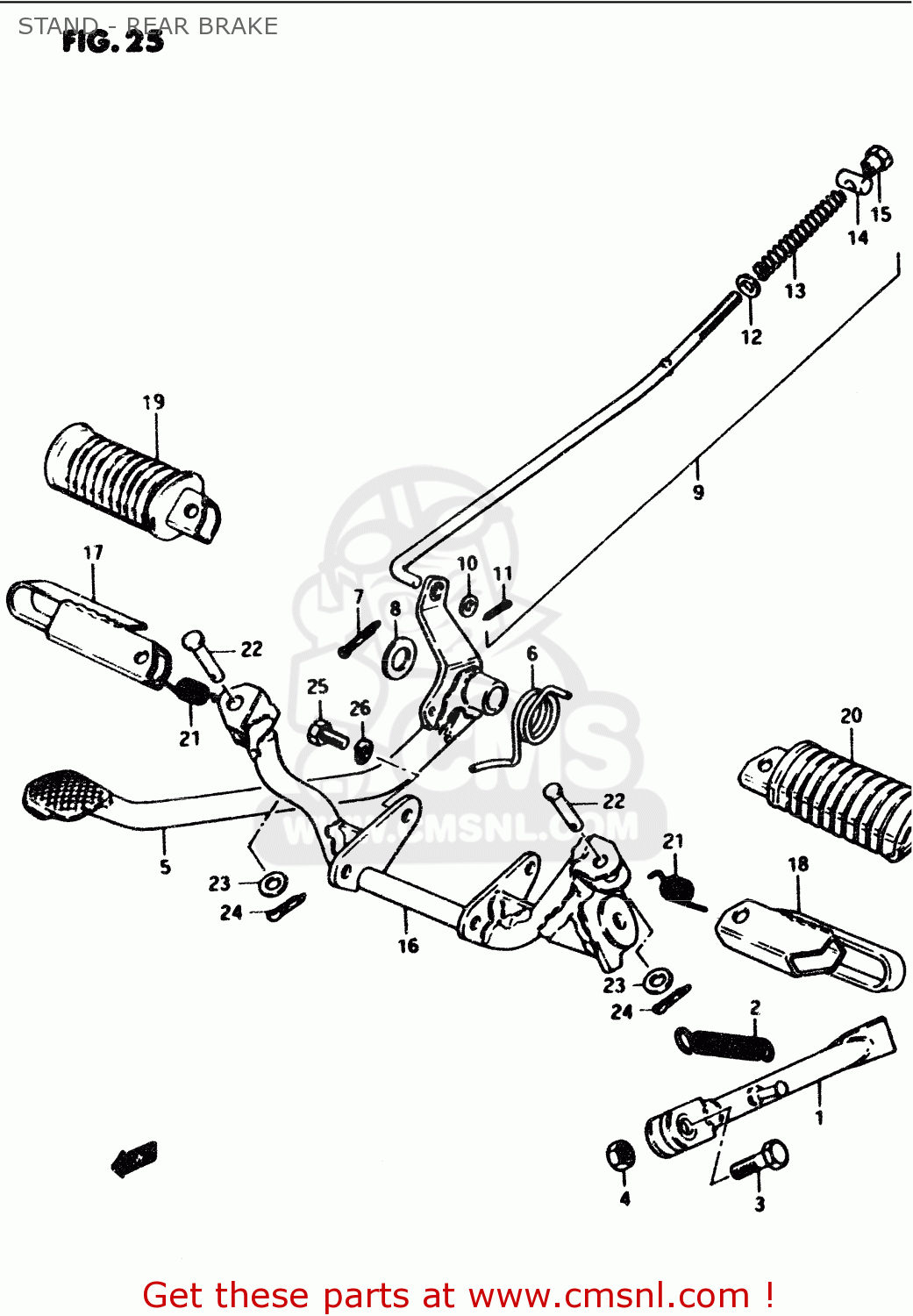

Stand - rear brake diagram PV50 1990 (L) (E01)
STAND - REAR BRAKE PV50 1990 (L) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231043001
ref: 1-1
MODEL X/D/H/L/M
STAND,PROP
€ 18.00
1-2
4231017210
ref: 1-2
MODEL R
STAND,PROP
€ 26.50
1-3
4231017200
ref: 1-3
MODEL M E16
STAND, PROP
€ 0.00
1-4
4231017220
ref: 1-4
MODEL R E16
STAND, PROP
€ 0.00
2-1
0944314017
ref: 2-1
SPRING
€ 6.50
2-2
0944314015
ref: 2-2
E16
SPRING
€ 3.00
3
0910010007
ref: 3
BOLT
€ 4.50
4-1
0831012108
ref: 4-1
MODEL X/D/H/L/M
NUT
€ 2.50
4-2
0831000103
ref: 4-2
MODEL R
NUT
€ 2.00
5-1
4311017200
ref: 5-1
MODEL X/D/H/L/M
PEDAL, BRAKE
€ 0.00
5-2
4311017201
ref: 5-2
MODEL R
PEDAL,BRAKE
€ 0.00
6
0944831013
ref: 6
SPRING
€ 3.00
7
0411130308
ref: 7
COTTER PIN
€ 1.50
8
0916015002
ref: 8
WASHER(15.5X26X2.3)
€ 2.00
9
4330017200
ref: 9
ROD ASSY,RR BRAKE
€ 0.00
10-1
0832221057
ref: 10-1
MODEL X/D/H/L/M
WASHER
€ 2.50
10-2
0832201053
ref: 10-2
MODEL R
WASHER
€ 2.50
11
0411120208
ref: 11
PIN 20X20
€ 1.50
12-1
0832221067
ref: 12-1
MODEL X/D/H/L/M
WASHER
€ 2.00
12-2
0832201063
ref: 12-2
MODEL R
WASHER
€ 2.00
13
0944009004
ref: 13
SPRING
€ 2.00
14
0920911002
ref: 14
PIN(11X18)
€ 2.00
15
0915006009
ref: 15
NUT (6MM)
€ 3.50
16-1
4351017210
ref: 16-1
BAR,FR FOOTREST
€ 0.00
16-2
4351017220
ref: 16-2
E16
BAR, FRONT FOOTREST
€ 0.00
16-3
4351017200
ref: 16-3
E43
BAR, FRONT FOOTREST
€ 0.00
17
4355046000019
ref: 17
FOOTREST,FR,R
€ 9.00
18
4356046000019
ref: 18
FOOTREST,FR,L
€ 9.00
19
4355049002
ref: 19
E43
RUBBER,FRONT FOOTREST
€ 22.50
20
4356049002
ref: 20
E43
FOOTREST
€ 22.50
21
0944814012
ref: 21
SPRING
€ 3.00
22
0920008002
ref: 22
PIN
€ 2.00
23-1
0832211088
ref: 23-1
MODEL X/D/H/L/M
WASHER
€ 2.00
23-2
0832201083
ref: 23-2
MODEL R
WASHER
€ 1.50
24
0411120208
ref: 24
PIN 20X20
€ 1.50
25-1
0110708167
ref: 25-1
MODEL X/D/H/L/M
BOLT,8X16
€ 2.00
25-2
0157008163
ref: 25-2
MODEL R
BOLT, UPPER
€ 2.00
26
0832121088
ref: 26
LOCK WASHER
€ 2.00
