MAGNETO (MODEL D/H/L/M E15)
PV50 1990 (L) (E01)

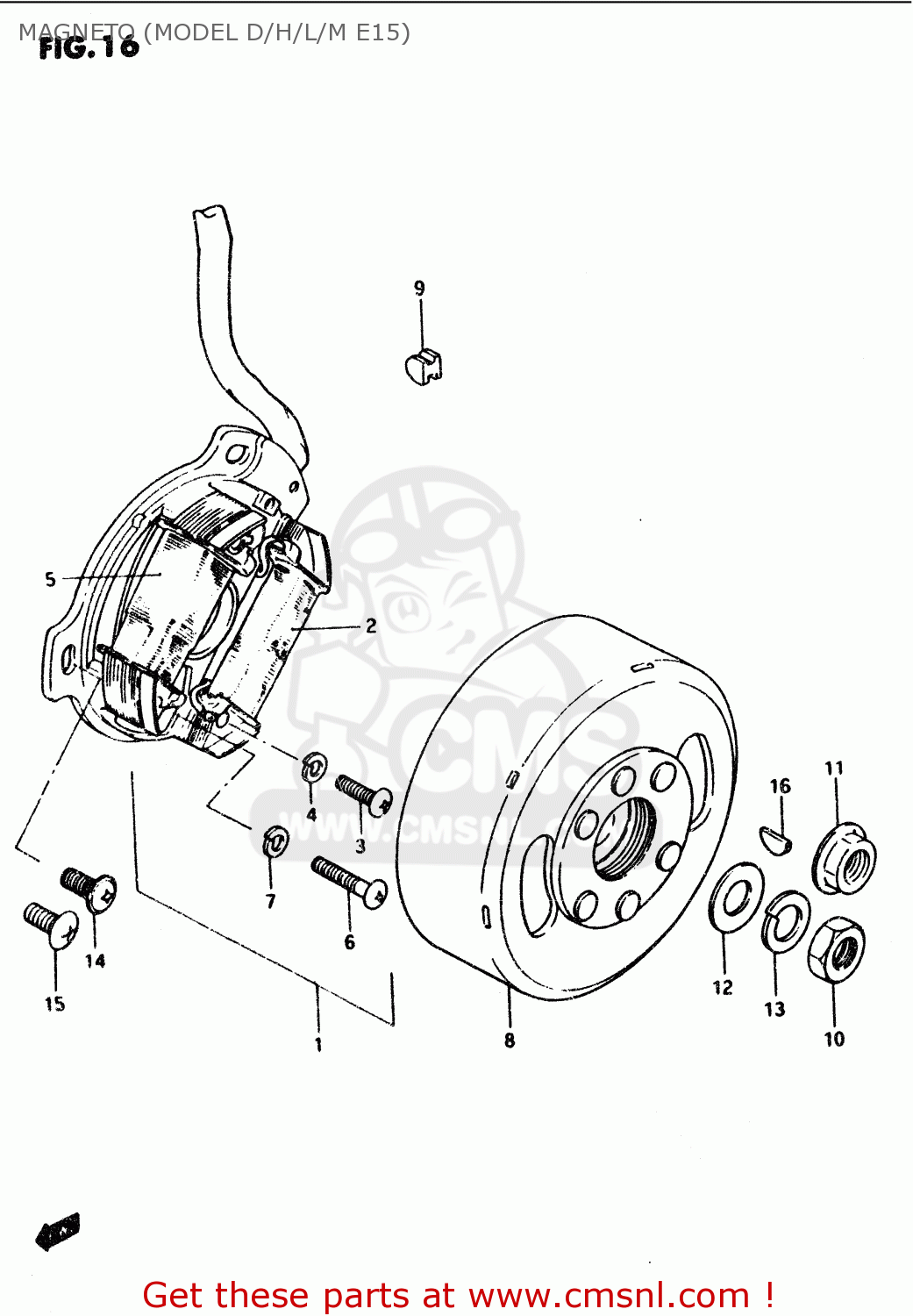

Magneto (model d/h/l/m e15) diagram PV50 1990 (L) (E01)
MAGNETO (MODEL D/H/L/M E15) PV50 1990 (L) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3210117230
ref: 1
STATOR ASSY
€ 0.00
2
3214028B01
ref: 2
COIL,PRIMARY
€ 59.00
3
0211204167
ref: 3
SCREW
€ 1.00
4
0832121047
ref: 4
WASHER,LOCK 4M
€ 2.00
5
3212017220
ref: 5
COIL, LIGHTING
€ 0.00
6
0211204258
ref: 6
SCREW 4X25
€ 2.00
7
0832121047
ref: 7
WASHER,LOCK 4M
€ 2.00
8
3210217230
ref: 8
ROTOR ASSY
€ 0.00
9
0925904001
ref: 9
PLUG
€ 3.50
10
0914010003
ref: 10
MODEL D
NUT (10MM)
€ 3.50
11
0831616108
ref: 11
MODEL H/L/M
NUT
€ 2.00
12
0832221108
ref: 12
MODEL D
WASHER
€ 2.50
13
0832121107
ref: 13
MODEL D
WASHER,LOCK,10
€ 2.00
14
0913905011
ref: 14
MODEL D
SCREW(5X14)
€ 3.00
15
0214205128
ref: 15
MODEL H/L/M
SCREW
€ 1.50
16
0834131039
ref: 16
KEY
€ 2.00
