PV50 1990 (L) (E01)

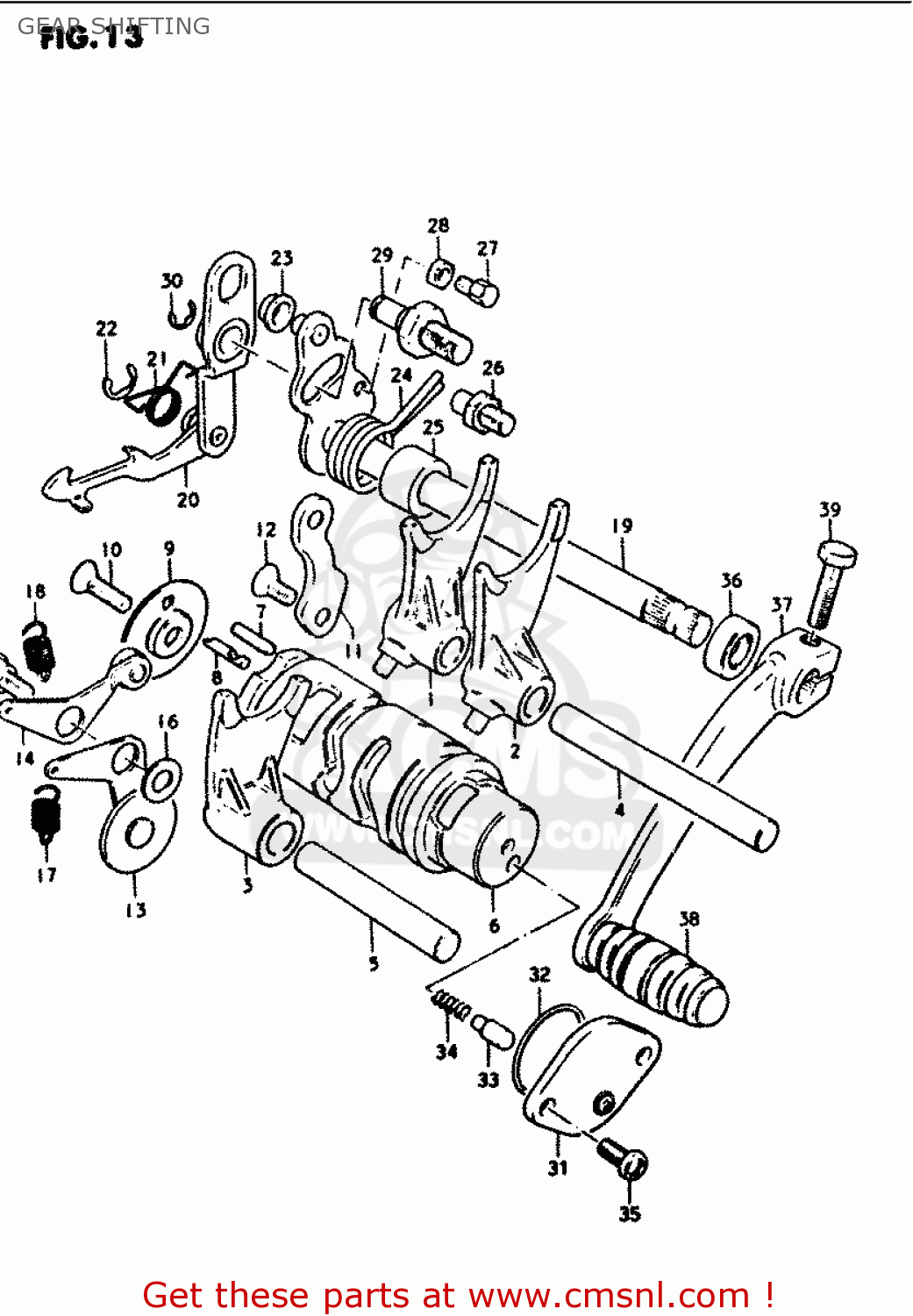

Gear shifting diagram PV50 1990 (L) (E01)
GEAR SHIFTING PV50 1990 (L) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
2521146003
ref: 1
FORK,GEAR SHIFT NO.1
€ 38.50
2
2523146001
ref: 2
FORK,GEAR SHIFT NO.2
€ 29.50
3
2522146000
ref: 3
E43
FORK,GEAR SHIFT NO.2
€ 20.00
4
2541114330
ref: 4
SHAFT,GEAR SHIFT FORK
€ 14.00
5
2542135402
ref: 5
ARROW LEFT25421-3540
SHAFT,GEAR SHIFT FORK
€ 19.00
6-1
2531146110
ref: 6-1
CAM, GEAR SHIFTING
€ 36.50
6-2
2531146000
ref: 6-2
E43
CAM,GEAR SHIFT
€ 59.00
7
0926104009
ref: 7
PIN(4X15.8)
€ 1.50
8
0920904015
ref: 8
PIN
€ 2.50
9
2532246000
ref: 9
RETAINER,GEAR SHIFT CAM DR PIN
€ 5.50
10-1
0212206208
ref: 10-1
MODEL X/D/H/L/M
SCREW
€ 2.00
10-2
0212206203
ref: 10-2
MODEL R
SCREW
€ 2.00
11
2534146000
ref: 11
GUIDE,GEAR SHIFT CAM
€ 6.00
12-1
0212206128
ref: 12-1
MODEL X/D/H/L/M
SCREW
€ 3.00
12-2
0212206123
ref: 12-2
MODEL R
SCREW
€ 3.00
13
2535046000
ref: 13
STOPPER,GEAR SHIFT CAM
€ 7.00
14
2539046001
ref: 14
STOPPER,GEAR SHIFT CAM NEUTRAL
€ 9.00
15
0911106020
ref: 15
BOLT(6X18.3)
€ 2.00
16-1
0832221067
ref: 16-1
MODEL X/D/H/L/M
WASHER
€ 2.00
16-2
0832201063
ref: 16-2
MODEL R
WASHER
€ 2.00
17
0944308017
ref: 17
SPRING
€ 2.00
18
0944310017
ref: 18
SPRING
€ 2.00
19
2551046002
ref: 19
SHAFT,GEAR SHIFT
€ 32.50
20
2554046004
ref: 20
PAWL,GEAR SHIFT
€ 16.50
21
0944813006
ref: 21
SPRING
€ 2.00
22
0833211076
ref: 22
E RING
€ 2.00
23
0918007014
ref: 23
SPACER(7X10X5)
€ 4.00
24
0944426015
ref: 24
SPRING
€ 4.00
25-1
0918012068
ref: 25-1
MODEL X/D
SPACER(12X20X15.3)
€ 3.00
25-2
0918012083
ref: 25-2
MODEL H/L/M/R
SPACER(12X20X15.3)
€ 2.50
26
2567101000
ref: 26
STOPPER,GEAR SHIFT CAM
€ 3.00
27
2567346000
ref: 27
BOLT,GEAR SHAFT RETURN SPR SET
€ 4.00
28-1
0831022067
ref: 28-1
MODEL X/D/H/L/M
NUT 6MM
€ 2.50
28-2
0914006023
ref: 28-2
MODEL R
NUT
€ 2.00
29
2567246001
ref: 29
STOPPER,GEAR SHIFT CAM
€ 4.50
30
0833211068
ref: 30
E RING 6MM
€ 2.00
31
3772029350
ref: 31
E16,E43
BODY,GEAR SHIFT SWITCH
€ 10.50
32
0928026003
ref: 32
E16,E43
O-RING (D:2.4 ID:26.2)
€ 2.50
33
0920905011
ref: 33
E16,E43
PIN(5X15.5)
€ 2.00
34
0944004010
ref: 34
E16,E43
SPRING
€ 1.50
35
0211205128
ref: 35
E16,E43
SCREW
€ 2.50
36
0928512002
ref: 36
OIL SEAL
€ 7.00
37
2560039101
ref: 37
LEVER ASSY,GEAR SHIFT
€ 71.00
38
2565216500
ref: 38
RUBBER,GEAR SHIFT PEDAL
€ 4.00
39-1
0910006091
ref: 39-1
MODEL X/D/H/L/M
BOLT
€ 2.00
39-2
0150006203
ref: 39-2
MODEL R
BOLT
€ 2.00
