REAR COMBINATION LAMP (E43)

PV50 1990 (L) (E01)

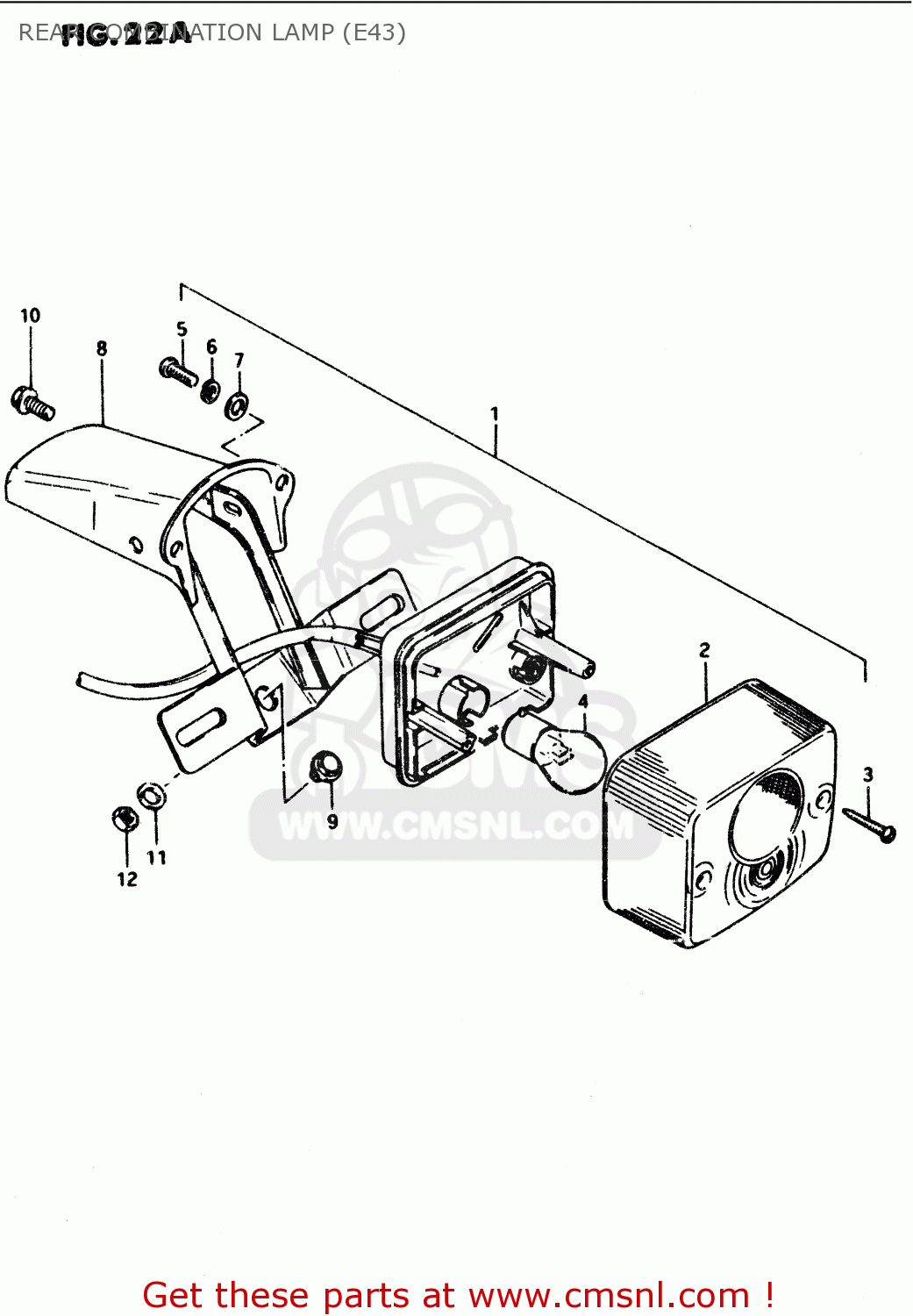

Rear combination lamp (e43) diagram PV50 1990 (L) (E01)

REAR COMBINATION LAMP (E43) PV50 1990 (L) (E01)
REAR COMBINATION LAMP (E43) PV50 1990 (L) (E01)
REAR COMBINATION LAMP (E43) PV50 1990 (L) (E01)
prices are in EUR
ref
part #
description
quantity
1
3572017200
ref: 1
LAMP UNIT, REAR COMBINATION
€ 65.50
2
3571202300
ref: 2
LENS
3571202300
€ 18.50
3
0321104207
ref: 3
SCREW
0321104207
€ 1.50
4
0947106008
ref: 4
BULB(6V10/3W,STANLEY,A4854H)
0947106008
€ 4.50
5
0211205164
ref: 5
SCREW
0211205164
€ 2.00
6
0832121055
ref: 6
WASHER,LOCK
0832121055
€ 3.00
7
0832221055
ref: 7
WASHER,5MM
0832221055
€ 2.50
8
3572617200
ref: 8
BRACKET
€ 0.00
9
0151706105
ref: 9
BOLT
€ 2.50
10
0151706166
ref: 10
BOLT
€ 2.50
11
0832221066
ref: 11
WASHER, LOWER
0832221066
€ 2.00
12
0831012066
ref: 12
NUT
0831012066
€ 2.00
