FRONT FORK
PV50 1994 (R) (E01)

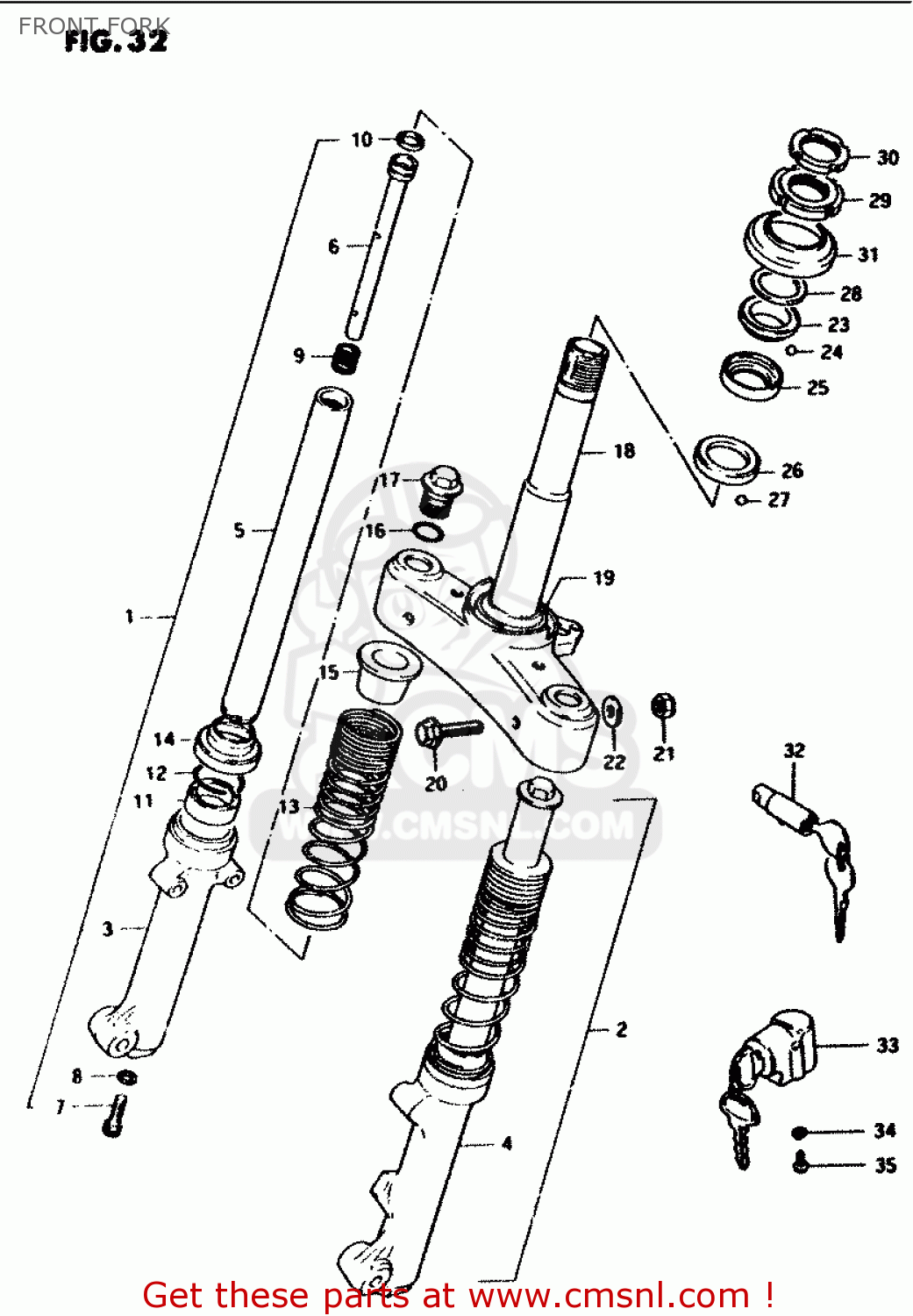

Front fork diagram PV50 1994 (R) (E01)
FRONT FORK PV50 1994 (R) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
5110317200
ref: 1-1
MODEL X/D/H/L
DAMPER ASSY, RH
€ 205.00
1-2
5110317201
ref: 1-2
MODEL M/R
DAMPER ASSY,FR FORK,R
€ 205.00
2-1
5110417200
ref: 2-1
MODEL X/D/H/L
DAMPER ASSY, LH
€ 251.50
2-2
5110417201
ref: 2-2
MODEL M/R
DAMPER ASSY,FR FORK,L
€ 251.50
3-1
5113117200
ref: 3-1
MODEL X/D/H/L
OUTER TUBE, RH
€ 0.00
3-2
5113117201
ref: 3-2
MODEL M/R
OUTER TUBE, RH
€ 0.00
4-1
5114117200
ref: 4-1
MODEL X/D/H/L
OUTER TUBE, LH
€ 0.00
4-2
5114117201
ref: 4-2
MODEL M/R
OUTER TUBE, LH
€ 0.00
5
5111017200
ref: 5
TUBE,INNER
€ 98.00
6
5114617200
ref: 6
PIPE, SEAT
€ 0.00
7
5114748130
ref: 7
BOLT(8X27)
€ 3.50
8
5114836011
ref: 8
GASKET (NAS)
€ 4.00
9
5117746100
ref: 9
SPRING,REBOUND
€ 3.50
10
5119646100
ref: 10
RING,PISTON
€ 6.00
11
5115303400
ref: 11
SEAL,OIL
€ 10.50
12-1
5115646100
ref: 12-1
MODEL X/D/H/L
CIRCLIP,FORK OIL SEAL
€ 3.50
12-2
5115648130
ref: 12-2
MODEL M/R
RING,OIL SEAL STOPPER
€ 3.50
13
5117117200
ref: 13
SPRING
€ 22.00
14
5157117200
ref: 14
DUST SEAL
€ 11.50
15
5117317200
ref: 15
GUIDE,SPRING
€ 4.00
16
5118146190
ref: 16
O-RING,FORK INNER TUBE
€ 5.50
17
5135146190
ref: 17
CAP
€ 15.00
18-1
5140017820
ref: 18-1
MODEL X/D/H/L/M
STEERING STEM
€ 171.50
18-2
5140017821
ref: 18-2
MODEL R
STEM SET,STEERING
€ 171.50
18-3
5140017810
ref: 18-3
E43
STEM,STEERING
€ 0.00
19
5162204000
ref: 19
RACE,STEERING OUTER LWR
€ 9.50
20
0910310026
ref: 20
BOLT 10X58
€ 3.00
21
0831931105
ref: 21
NUT 10MM
€ 3.00
22
0832221105
ref: 22
WASHER 10MM
€ 2.50
23
5162128000
ref: 23
RACE,STEERING OUTER UPR
€ 7.00
24
0611106003
ref: 24
BALL
€ 1.50
25
5161120002
ref: 25
RACE,STEERING INNER UPR
€ 5.50
26
5161204000
ref: 26
RACE,STEERING INNER LWR
€ 6.50
27
0611106003
ref: 27
BALL
€ 1.50
28
0916626001
ref: 28
WASHER
€ 2.00
29
5163128000
ref: 29
NUT,STEERING STEM(25X44X10)
€ 12.50
30
5163202400
ref: 30
NUT,STEERING STEM LOCK
€ 7.00
31
5164325001
ref: 31
DUST SEAL,STEERING UPR
€ 4.50
32
5190022662
ref: 32
PURCHASE LOCALLY
LOCK ASSEMBLY,STEERING (NEI
€ 168.50
33
5190030831
ref: 33
E43
LOCK ASSY,STEERING
€ 30.00
34
0832121057
ref: 34
E43
LOCK WASHER
€ 2.00
35
0211205168
ref: 35
E43
SCREW
€ 2.50
