HEADLAMP (E43)
PV50 1994 (R) (E01)

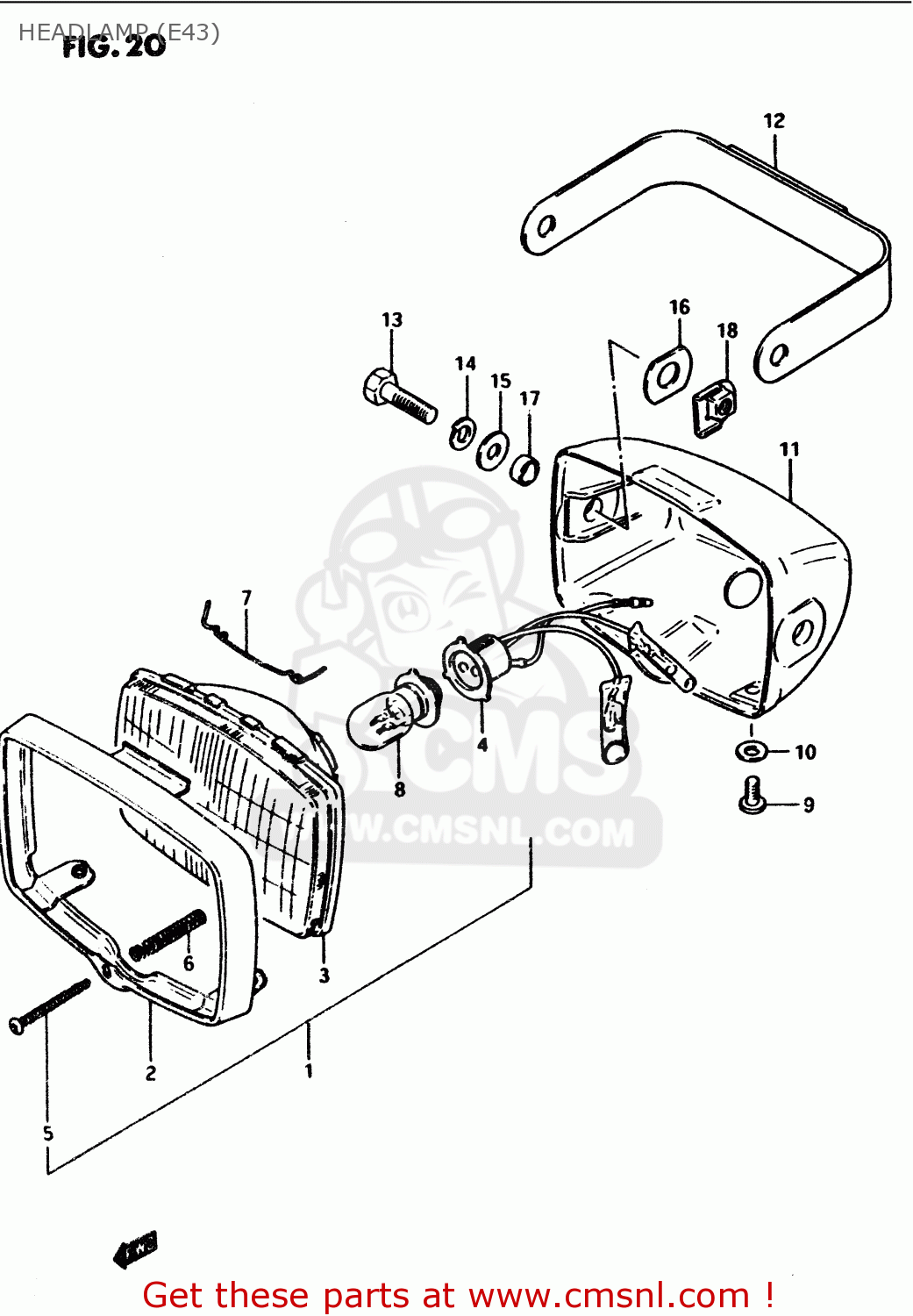

Headlamp (e43) diagram PV50 1994 (R) (E01)
HEADLAMP (E43) PV50 1994 (R) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
16352205
ref: 1
LYKT KOMPL E16
€ 0.00
2
3511135301
ref: 2
RIM
€ 33.50
3
3512135300
ref: 3
LAMP UNIT
€ 54.00
4
3517135300
ref: 4
SOCKET,HEADLAMP
€ 22.50
5
3515135302
ref: 5
SCREW,HEADLAMP ADJUST
€ 2.50
6
3515435300
ref: 6
SPRING,HEAD LAMP ADJUSTER
€ 3.00
7
35128353A0
ref: 7
SPRING,HEADLAMP UNIT
€ 3.50
8
M2102000
ref: 8
PARE
€ 0.00
9
0211205128
ref: 9
SCREW
€ 2.50
10
0832221057
ref: 10
WASHER
€ 2.50
11
5181117202291
ref: 11
HOUSING,HEADLAMP(BLACK)
€ 52.50
12
5135017211
ref: 12
BRACKET,HEAD LAMP HOUSING
€ 0.00
13
0110708207
ref: 13
BOLT
€ 3.00
14
0832121088
ref: 14
LOCK WASHER
€ 2.00
15
0832211088
ref: 15
WASHER
€ 2.00
16
0932912002
ref: 16
CUSHION
€ 3.00
17
0918008030
ref: 17
SPACER (8.8X12X7)
€ 3.50
18
5186046400
ref: 18
PLATE,HEADLAMP HOUSING
€ 3.00
