FUEL COCK
PV50 1994 (R) (E01)

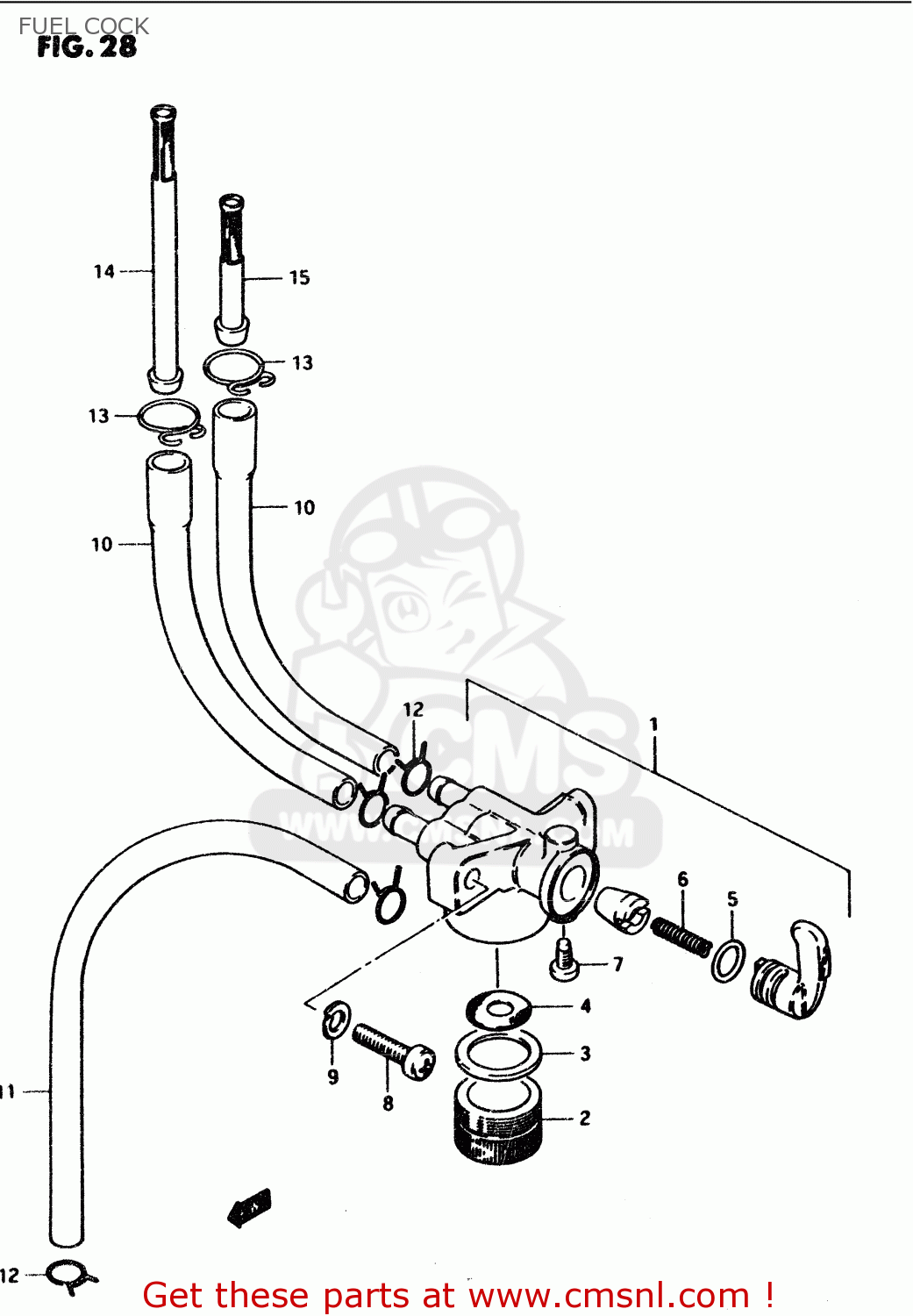

Fuel cock diagram PV50 1994 (R) (E01)
FUEL COCK PV50 1994 (R) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4430017270
ref: 1
COCK ASSY,FUEL
€ 37.00
2
4434717270
ref: 2
CUP
€ 6.00
3
6627398300
ref: 3
GASKET,FUEL FILTER CUP (NAS)
€ 2.00
4
6615298300
ref: 4
NET,FILTER
€ 2.00
5
4435341370
ref: 5
O RING,LEVER
€ 4.00
6
4435732470
ref: 6
SPRING
€ 2.00
7
4434341370
ref: 7
SCREW
€ 2.00
8-1
0211205208
ref: 8-1
MODEL X/D/H/L/M
SCREW 5X20
€ 3.00
8-2
0211235203
ref: 8-2
MODEL R
SCREW
€ 2.50
9
0832121057
ref: 9
LOCK WASHER
€ 2.00
10-1
0934305096
ref: 10-1
MODEL X/D/H
HOSE,FUEL
€ 14.00
10-2
0935950823300
ref: 10-2
MODEL L/M/R
HOSE (5X8.2X300)
€ 14.00
11-1
0934305129
ref: 11-1
MODEL X/D/H
HOSE
€ 13.00
11-2
0935250823300
ref: 11-2
MODEL L/M/R
HOSE
€ 13.00
12
0940108401
ref: 12
CLIP
€ 1.50
13
0940110401
ref: 13
CLIP
€ 1.50
14
4432227001
ref: 14
FILTER,FUEL
€ 4.50
15
4432217200
ref: 15
FILTER,FUEL
€ 4.50
