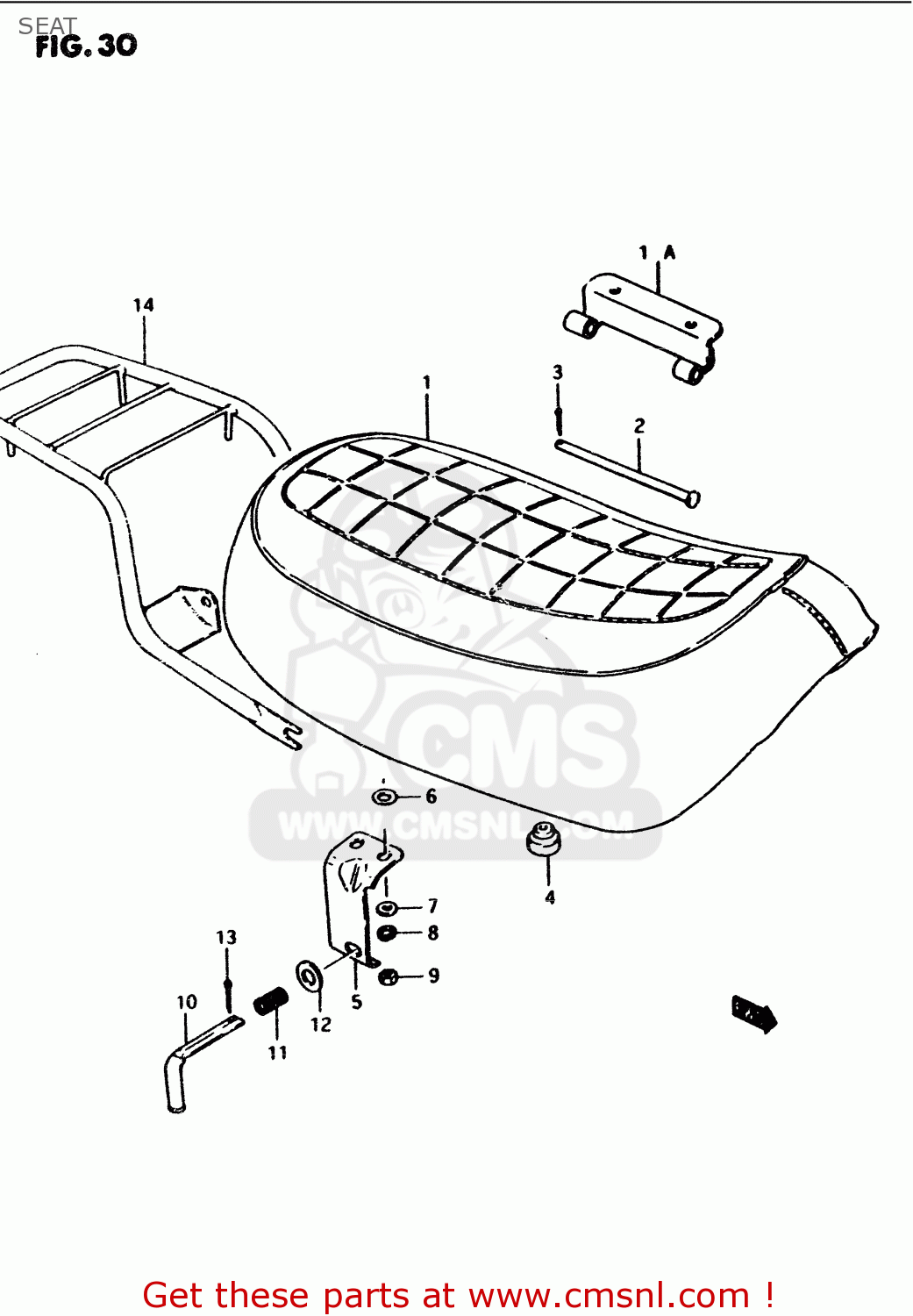

SEAT

ref

part #

description

quantity

1-1

451001725048H
ref: 1-1
MODEL X/D

SEAT (BLACK)

€ 567.00

1-2

45100172504UZ
ref: 1-2
MODEL H

SEAT (BLUE)

€ 567.00

1-3

45100172504NJ
ref: 1-3
MODEL H

SEAT (RED)

€ 567.00

1-4

451001726048H
ref: 1-4
MODEL L/M

SEAT (BLACK)

€ 567.00

1-5

4510017270B9F
ref: 1-5
MODEL R

SEAT SET

€ 0.00

1-6

45100172004NJ
ref: 1-6
MODEL H E43

SEAT (RED)

€ 567.00

1-7

45100172004UZ
ref: 1-7
MODEL H E43

SEAT (BLUE)

€ 567.00

1-8

451001720048H
ref: 1-8
MODEL L/M E43

SEAT (BLACK)

€ 0.00

1A

4521146200
ref: 1A

PLATE,SEAT SUPPORT

€ 24.50

2

0920006030
ref: 2

PIN

€ 5.50

3

0411120158
ref: 3

PIN

€ 1.50

4

0932110001
ref: 4

CUSHION

€ 2.50

5

4521317200
ref: 5

PLATE,CLAMP GUIDE

€ 12.50

6-1

0916008043
ref: 6-1
MODEL X

WASHER(8.5X18X1)

€ 1.50

6-2

0832221088
ref: 6-2
MODEL D/H/L/M

WASHER

€ 2.00

6-3

0832201083
ref: 6-3
MODEL R

WASHER

€ 1.50

7-1

0832221067
ref: 7-1
MODEL X/D/H/L/M

WASHER

€ 2.00

7-2

0832201063
ref: 7-2
MODEL R

WASHER

€ 2.00

8-1

0832121067
ref: 8-1
MODEL X/D/H/L/M

WASHER,LOCK

€ 2.50

8-2

0832101063
ref: 8-2
MODEL R

LOCK WASHER

€ 2.00

9-1

0831011068
ref: 9-1
MODEL X/D/H/L/M

NUT

€ 2.50

9-2

0831000063
ref: 9-2
MODEL R

NUT 6MM

€ 2.00

10

4521017210
ref: 10

BAR, SEAT CLAMP

€ 32.50

11

0944010007
ref: 11

SPRING

€ 2.00

12

0916009007
ref: 12

WASHER (9.5X20X1)

€ 2.00

13

0411120208
ref: 13

PIN 20X20

€ 1.50

14-1

4631017200
ref: 14-1
E43 STD

CARRIER,SPORT

€ 220.50

14-2

4631017200
ref: 14-2
OPT

CARRIER,SPORT

€ 220.50
