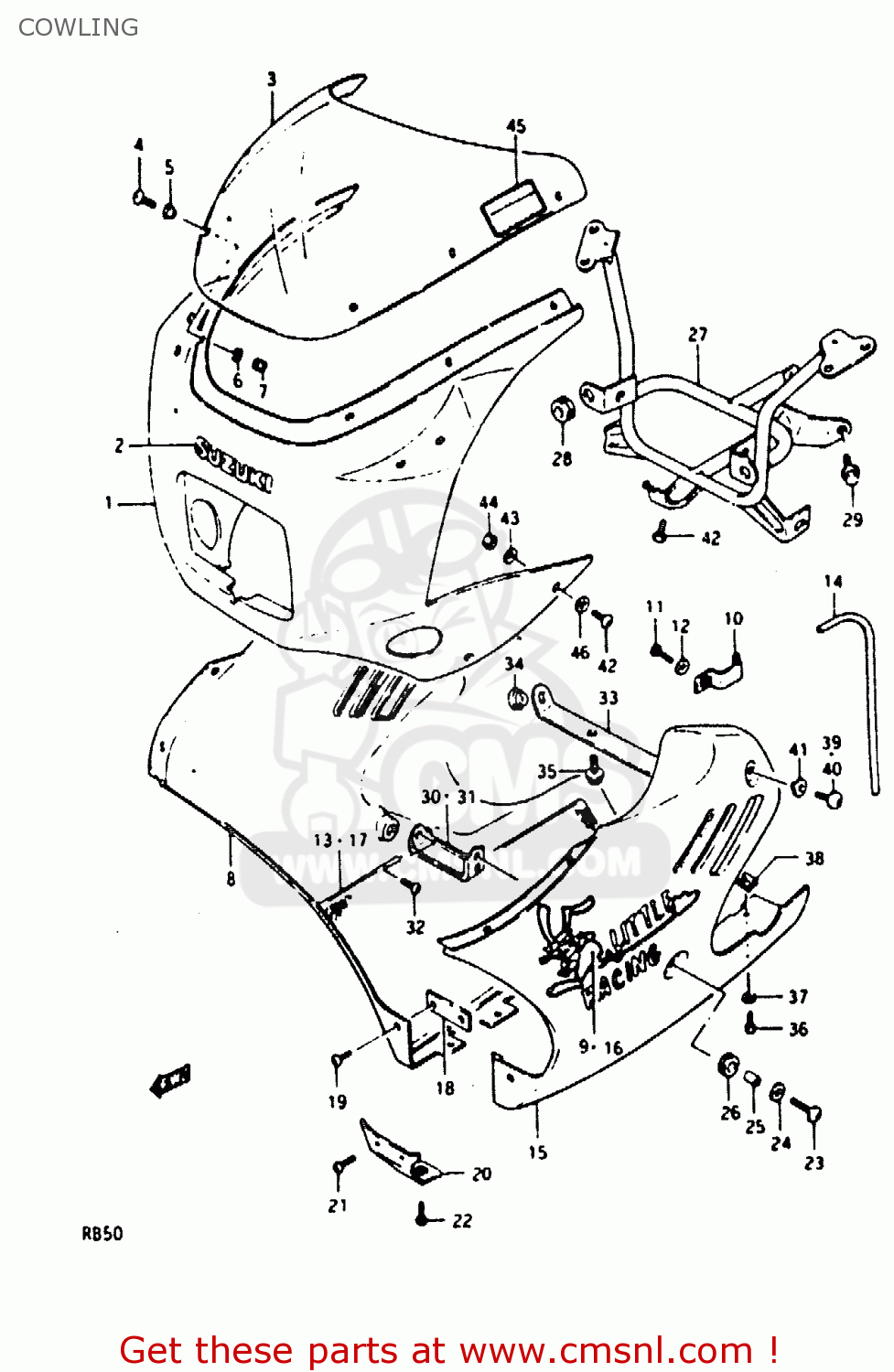

COWLING

ref

part #

description

quantity

1

944002885027C
ref: 1
0.3

BODY,COWLING

€ 167.50

2

6816631300019
ref: 2

EMBLEM

€ 4.00

3

9461128B00
ref: 3
0.3

WINDOW,COWLING

€ 66.50

4

0214205164
ref: 4

SCREW

€ 2.50

5

0932005008
ref: 5

CUSHION

€ 5.00

6

0832221055
ref: 6

WASHER,5MM

€ 2.50

7

0831921055
ref: 7

NUT 8MM

€ 1.50

8-1

947002885027C
ref: 8-1
~F.NO.109835 0.3

COVER SET,COWLING,R

€ 260.00

8-2

947002885127C
ref: 8-2
~F.NO.123835

COVER SET,COWLING,R

€ 260.00

8-3

947002885227C
ref: 8-3
F.NO.123836~

COVER SET,COWLING,R

€ 260.00

9

6826128B108VM
ref: 9

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10

0940307317
ref: 10
F.NO.109836~

CLAMP

€ 0.00

11

0214205128
ref: 11

SCREW

€ 1.50

12

0832221057
ref: 12

WASHER

€ 2.50

13-1

9447328B00
ref: 13-1
~F.NO.123835

SHIELD,UNDER COWL HEAT,R

€ 0.00

13-2

9447328B10
ref: 13-2
F.NO.123836~

NO PRODUCT DESCRIPTION AVAILABLE

€ 23.50

14

0934304119
ref: 14
L:1550@r400

HOSE

€ 12.50

15-1

948002885027C
ref: 15-1
~F.NO.109835 0.3

COVER SET,COWLING,L

€ 242.50

15-2

948002885127C
ref: 15-2
~F.NO.123835

COVER SET,COWLING,L

€ 242.50

15-3

948002885227C
ref: 15-3
F.NO.123836~

COVER SET,COWLING,L

€ 242.50

16

68271288108VM
ref: 16

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

17-1

9447428B00
ref: 17-1
~F.NO.123835

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

17-2

9447428B10
ref: 17-2
F.NO.123836~

NO PRODUCT DESCRIPTION AVAILABLE

€ 26.00

18

9448028B00
ref: 18
~F.NO.123835@r94480-

BRACKET,COWLING LWR

€ 2.00

19

0214205128
ref: 19

SCREW

€ 1.50

20

9448028B10
ref: 20
F.NO.123836~

BRACKET,COWLING LWR

€ 2.00

21

0214105128
ref: 21

SCREW

€ 1.50

22

0214205166
ref: 22

SCREW

€ 2.50

23

0214206207
ref: 23

SCREW

€ 2.00

24

0916006028
ref: 24

WASHER(6.5X18X1)

€ 1.50

25

0918006011
ref: 25

SPACER (6.1X9X9)

€ 2.00

26

0932009016
ref: 26

CUSHION

€ 2.50

27

9451028B01
ref: 27
0.4

BRACE,COWLING

€ 0.00

28

0932008007
ref: 28

CUSHION

€ 4.00

29

0151706164
ref: 29

BOLT

€ 2.50

30

9454028B00
ref: 30
0.3

BRACE,COWLING LWR,R

€ 0.00

31

9455028B00
ref: 31
0.3

BRACE,COWLING,LOWER,LEFT

€ 0.00

32

0214206126
ref: 32

SCREW

€ 2.00

33

9458128B00
ref: 33

PLATE,COWLING SUPPORT

€ 0.00

34

0932110021
ref: 34

CUSHION

€ 4.50

35

0151708125
ref: 35

BOLT

€ 3.50

36-1

0324105166
ref: 36-1
~F.NO.123835

SCREW

€ 1.50

36-2

0324105166
ref: 36-2
F.NO.123836~

SCREW

€ 1.50

37-1

0916005013
ref: 37-1
~F.NO.123835

WASHER(5.2X16X1)

€ 1.50

37-2

0916005013
ref: 37-2
F.NO.123836~

WASHER(5.2X16X1)

€ 1.50

38-1

0914805020
ref: 38-1
~F.NO.123835

NUT

€ 2.00

38-2

0914805020
ref: 38-2
F.NO.123836~

NUT

€ 2.00

39

0214206127
ref: 39

SCREW 6X12

€ 1.50

40

0912506052
ref: 40

SCREW(6X16)

€ 2.00

41

0916906033
ref: 41

WASHER

€ 1.50

42

0214205128
ref: 42

SCREW

€ 1.50

43

0832221056
ref: 43

WASHER

€ 2.50

44

0831011056
ref: 44

NUT

€ 2.50

45

6861228B00
ref: 45

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

46

0832221057
ref: 46

WASHER

€ 2.50

all assemblies
