SEAT

RB50 1987 (H) (E01)

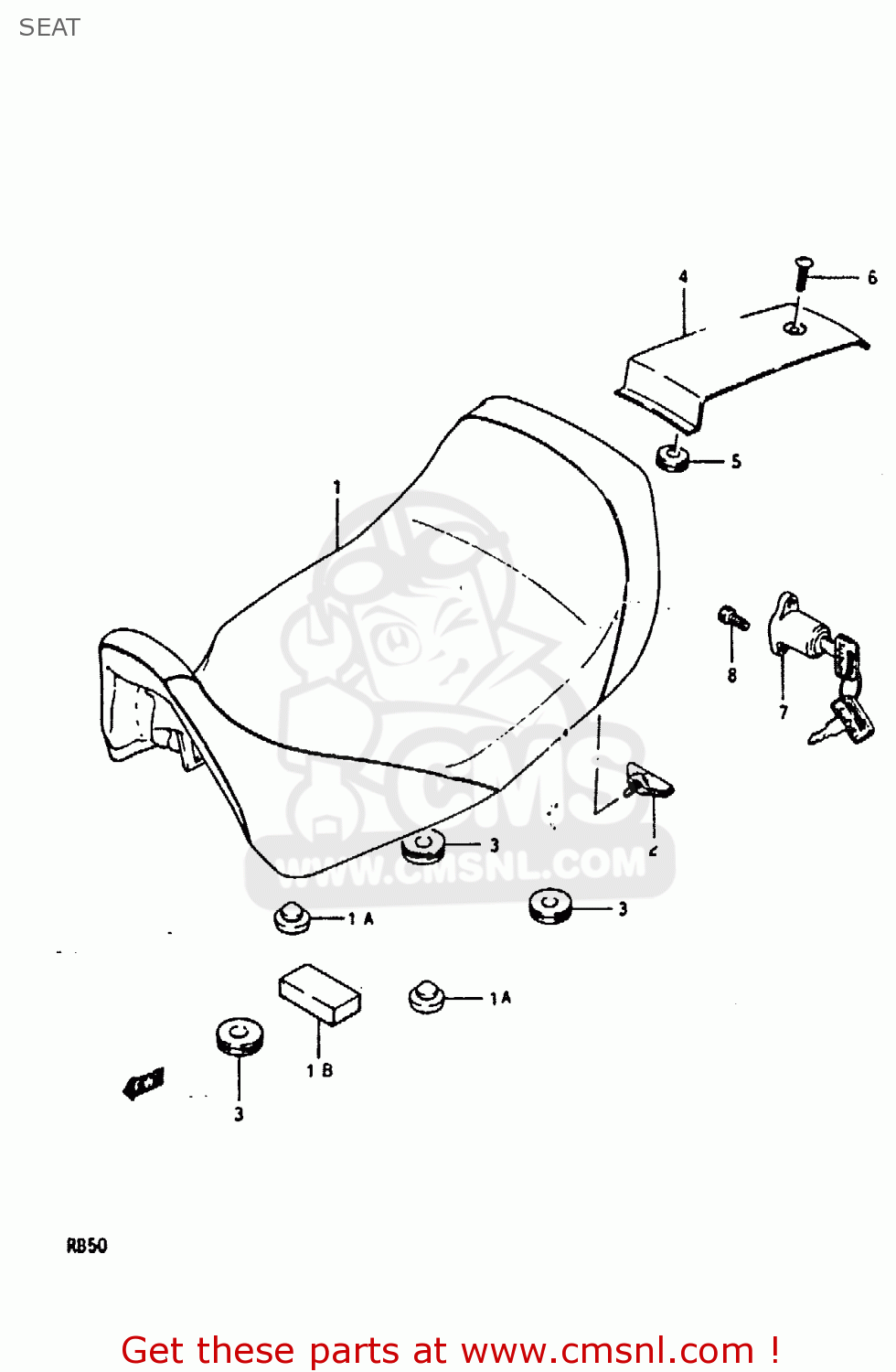

Seat diagram RB50 1987 (H) (E01)

prices are in EUR

ref

part #

description

quantity

1-1

4510028B0054G
ref: 1-1
FOR 14L 0.2

SEAT ASSEMBLY

€ 134.50

1-2

4510028B0044P
ref: 1-2
FOR 07P 0.2

SEAT SET

€ 134.50

0932910001
ref: 1A

CUSHION

€ 2.50

4525503A00
ref: 1B

CUSHION,BATTERY STOPPER

€ 2.50

0911906017
ref: 2

BOLT

€ 4.00

0932009021
ref: 3

CUSHION

€ 4.00

4-1

4551128B0023Z
ref: 4-1
FOR 14L 0.2

COVER,SEAT TAIL

€ 7.50

4-2

4551128B0017Y
ref: 4-2
FOR 07P 0.2

KAP.DUOZIT

€ 18.50

0932008013
ref: 5

CUSHION

€ 4.00

0912505060
ref: 6

SCREW (L:20)

€ 2.50

9570009300KEY
ref: 7
0.2

LOCK SET

€ 57.50

0711006105
ref: 8

BOLT

€ 2.50
