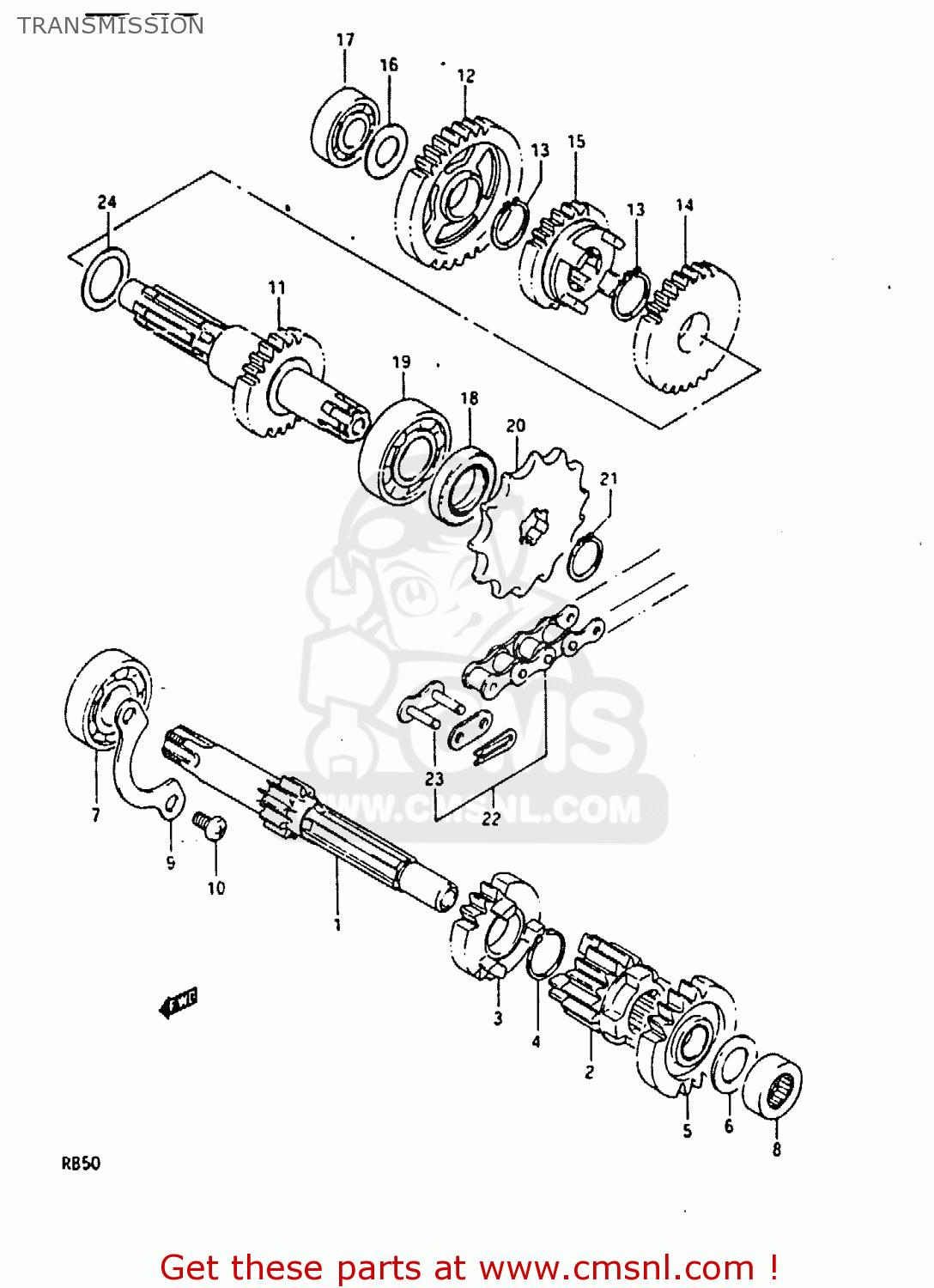

TRANSMISSION

ref

part #

description

quantity

1

2412128B00
ref: 1
3.4

SHAFT,COUNTER

€ 0.00

2

2422128B00
ref: 2
3.4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3

2423128B00
ref: 3
3.4

GEAR,THIRD DRIVE

€ 0.00

4

0938016004
ref: 4

CIRCLIP

€ 0.00

5

2424028B00
ref: 5
3.4

GEAR,FOURTH DRIVE (NT:21)

€ 0.00

6

0821112241
ref: 6

WASHER

€ 2.00

7

0811062030
ref: 7
3.4

BEARING

€ 16.50

8

0926312014
ref: 8
3.4

BEARING(12X19X12)

€ 11.00

9

2474109401
ref: 9

RETAINER,BEARING

€ 3.00

10

0211206108
ref: 10

SCREW

€ 1.50

11-1

2413128B00
ref: 11-1
@r24131-28B01 W/0821

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11-2

2413128B01
ref: 11-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12

2431109402
ref: 12
3.4

GEAR,1ST DRIVEN(NT:34)

€ 0.00

13

0833131178
ref: 13

CIRCLIP

€ 2.00

14

2432109402
ref: 14
3.4

GEAR,2ND DRIVEN(NT:29)

€ 0.00

15

2433128B00
ref: 15
3.4

GEAR,THIRD DRIVEN

€ 36.00

16

0821112241
ref: 16

WASHER

€ 2.00

17

0811362017
ref: 17
3.4

BEARING

€ 11.00

18

0928317011
ref: 18
0.4

OIL SEAL

€ 5.00

19

0926217023
ref: 19
3.4

BEARING(17X40X12)

€ 14.00

20

2751119700
ref: 20
W0.4

SPROCKET,ENGINE(NT:14)

€ 19.00

21

0833131169
ref: 21

CIRCLIP,16MM

€ 2.00

22

2760046721
ref: 22
112LE@r100LE W0.5

CHAIN ASSEMBLY,DRIVE

€ 31.00

23-1

2762001023
ref: 23-1

JOINT,CHAIN(RK)

€ 5.50

23-2

2762001012
ref: 23-2

JOINT

€ 5.00

24

0821117221
ref: 24
W/24131-28B01

WASHER

€ 0.00
