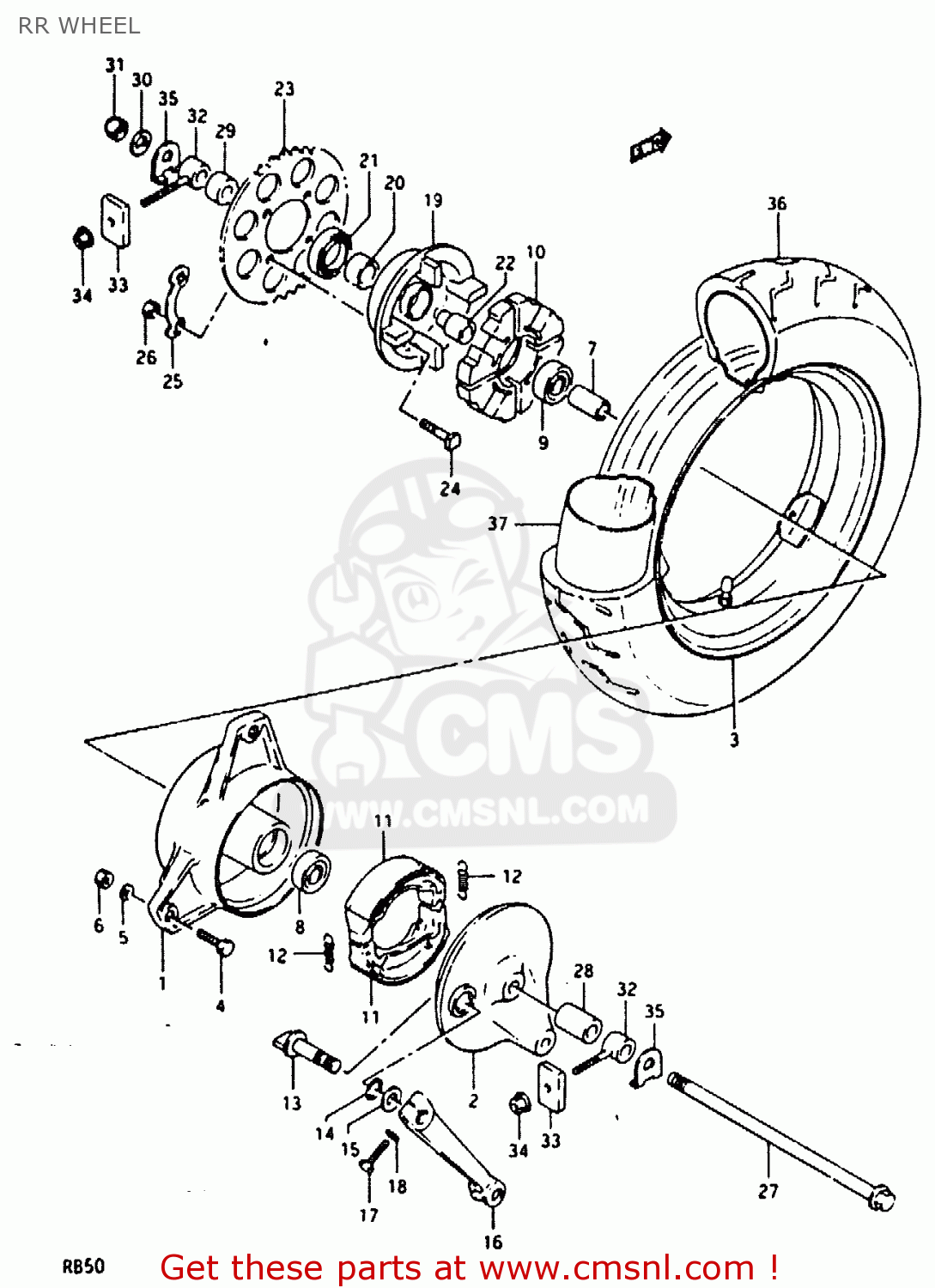

RR WHEEL

ref

part #

description

quantity

1-1

641104320019F
ref: 1-1
FOR 14L 0.6

HUB,REAR

€ 0.00

1-2

641104320029L
ref: 1-2
FOR 07P, 27C 0.6

HUB,REAR WHEEL

€ 0.00

1-3

641104320029D
ref: 1-3
FOR 08X 0.6

HUB,REAR WHEEL

€ 0.00

2-1

6421028B0019F
ref: 2-1
FOR 14L 0.5

PANEL,REAR HUB

€ 80.50

2-2

6421028B0029L
ref: 2-2
FOR 07P, 27C 0.5

PANEL,REAR BRAKE ANCHOR

€ 80.50

2-3

6421028B0029D
ref: 2-3
FOR 08X 0.5

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3-1

553104320019F
ref: 3-1
FOR 14L 0.7

RIM,FRONT WHEEL

€ 94.50

3-2

553104320029L
ref: 3-2
FOR 07P.27C 0.7

WHEEL,RIM

€ 94.50

3-3

553104320029D
ref: 3-3
FOR 08X 0.7

WHEEL,RIM

€ 94.50

4

0910008091
ref: 4

BOLT(8X21.5)

€ 3.00

5

0832121088
ref: 5

LOCK WASHER

€ 2.00

6

0831012088
ref: 6

NUT

€ 2.00

7

0918012069
ref: 7

SPACER (12.6X19X61.5)

€ 0.00

8

0814363017
ref: 8
0.6

BEARING

€ 14.50

9

0814362017
ref: 9
0.6

BEARING

€ 11.50

10

6465101001
ref: 10
0.5

CUSHION,REAR DRUM

€ 9.00

11

5441001010
ref: 11
W0.5

SHOE,BRAKE

€ 39.00

12

0944307001
ref: 12

SPRING(L:34)

€ 2.50

13

5444129304
ref: 13
0.5

CAM,FRONT BRAKE

€ 13.00

14

0928014003
ref: 14

O-RING (D:2.4 ID:13.8)

€ 3.50

15

0916014001
ref: 15

WASHER (14.5X22X1.6)

€ 2.50

16

6445144400
ref: 16
0.2

LEVER,RR BRAKE CAM

€ 42.00

17

0110706257
ref: 17

BOLT

€ 2.00

18

0832121067
ref: 18

WASHER,LOCK

€ 2.50

19

6461101001
ref: 19
0.6

DRUM,REAR SPROCKET MOUNT

€ 56.50

20

0926217023
ref: 20
0.6

BEARING(17X40X12)

€ 14.00

21

0928525001
ref: 21
0.6

SEAL OIL(25X40X6)

€ 12.50

22

6473343000
ref: 22

RETAINER,RR SPROCKET DRUM

€ 7.00

23

6451101739
ref: 23

SPROCKET,REAR

€ 37.00

24

0910508001
ref: 24

BOLT(8X33.5)

€ 2.50

25

0916908011
ref: 25

WASHER

€ 2.50

26

0831012088
ref: 26

NUT

€ 2.00

27

6471128B00
ref: 27

AXLE,RR

€ 28.50

28

0918012114
ref: 28

SPACER (12.2X22X29)

€ 0.00

29

0918012070
ref: 29

SPACER

€ 4.50

30

0832211128
ref: 30

WASHER

€ 2.00

31

0831921128
ref: 31

NUT 12MM

€ 4.00

32

6141028B00
ref: 32
0.3

ADJUSTER COMP,CHAIN

€ 0.00

33

6142128B00
ref: 33

PLATE,CHAIN ADJUSTER GUIDE

€ 0.00

34

0831931067
ref: 34

NUT

€ 2.50

35

6471220900
ref: 35

WASHER,CHAIN ADJUSTER

€ 2.00

36

6510028B00
ref: 36
W0.7

TIRE,REAR 3.50-10-2PR

€ 0.00

37

5520028B00
ref: 37
W0.7

TUBE,INNER

€ 0.00
