BATTERY

RF600RU 1994 (R) (E22)

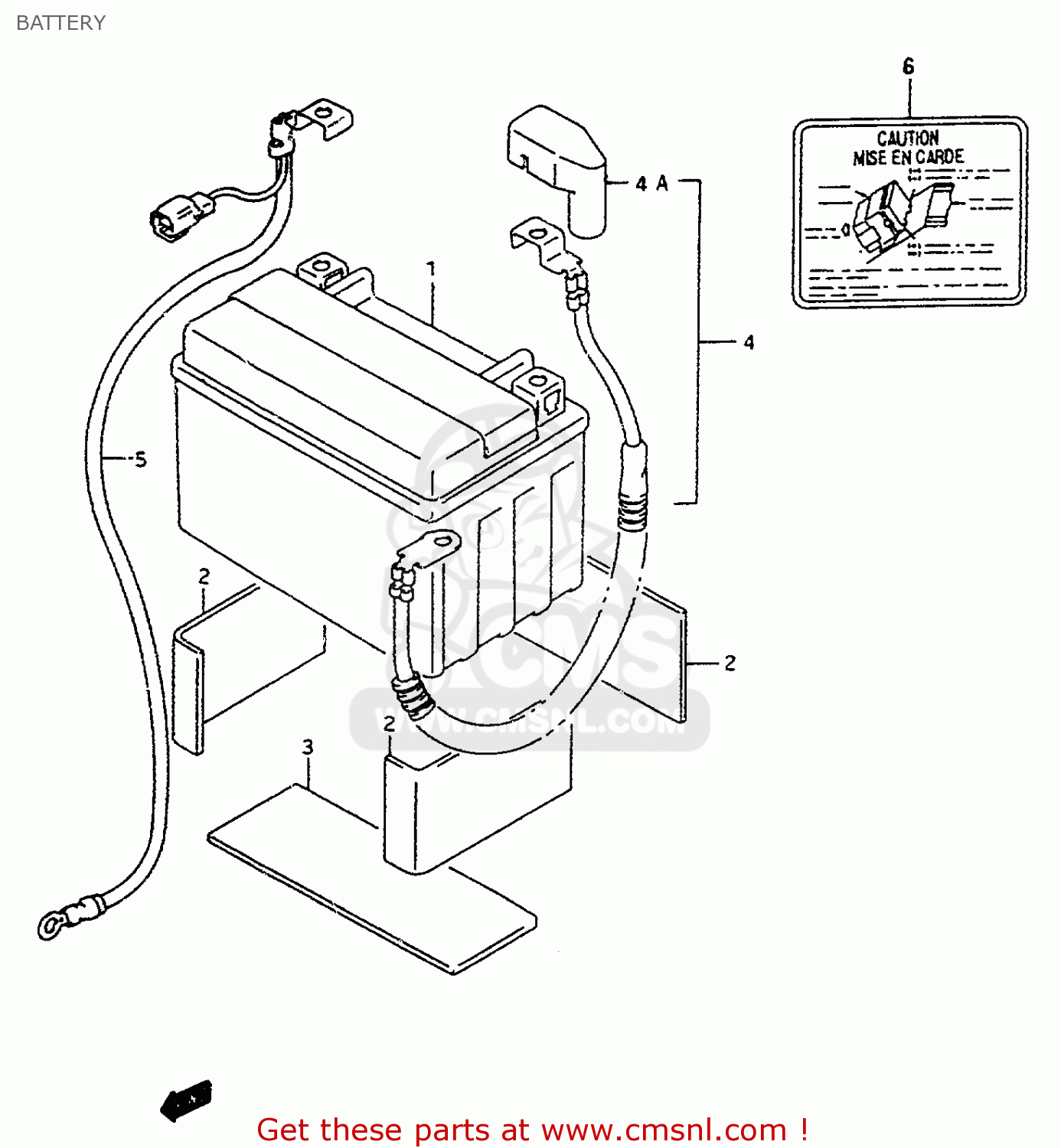

Battery diagram RF600RU 1994 (R) (E22)

BATTERY RF600RU 1994 (R) (E22)

BATTERY RF600RU 1994 (R) (E22)

prices are in EUR

ref

part #

description

quantity

1

3361032C10
ref: 1

BATTERY ASSY(YTX9-BS,12V8AH)

€ 108.50

2

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

4

3382021E00
ref: 4

WIRE,BATTERY PLUS LEAD

€ 27.00

4A

3362433C10
ref: 4A

CAP,BATTERY PLUS

€ 6.50

5-1

3386017E00
ref: 5-1
MODEL P/R

WIRE,BATTERY MINUS LEAD

€ 27.50

5-2

3386046E00
ref: 5-2
MODEL S/T/V

WIRE,BATTERY MINUS

€ 27.50

6

3369017E00
ref: 6

PLATE,BATTERY CAUTION

€ 3.00
