REAR CALIPER (MODEL T/V)
RF600RU 1994 (R) (E22)

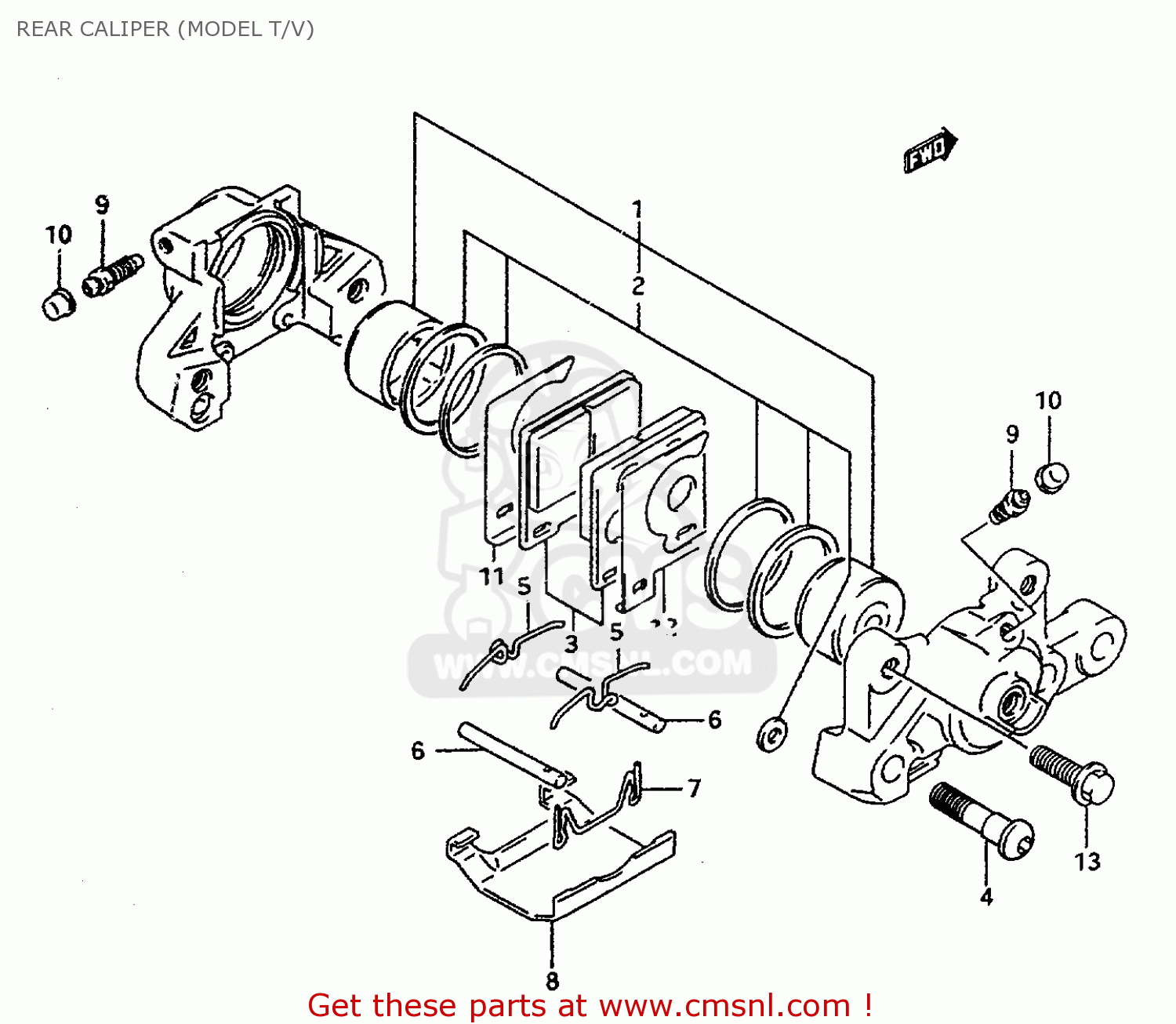

Rear caliper (model t/v) diagram RF600RU 1994 (R) (E22)
REAR CALIPER (MODEL T/V) RF600RU 1994 (R) (E22)
×
prices are in EUR
ref
part #
description
quantity
00000
6910005C50
ref: 00000
CALIPER ASSEMBLY,REAR
€ 770.50
1-1
6910032810
ref: 1-1
MODEL T~F.NO.GN76A-1
PISTON SET
€ 122.50
1-2
6910005850
ref: 1-2
MODEL T F.NO.GN76A-1
PISTON SET
€ 122.50
2
6910032820
ref: 2
SEAL SET,PISTON
€ 26.00
3
6910021820
ref: 3
PAD SET (NAS)
€ 43.00
4-1
5914516700
ref: 4-1
MODEL T~F.NO.GN76A-1
BOLT,HOUSING
€ 8.00
4-2
5914505C50
ref: 4-2
MODEL T F.NO.GN76A-1
BOLT,HOUSING
€ 9.50
5
5914316700
ref: 5
SPRING
€ 7.50
6
6914146E01
ref: 6
PIN,PAD
€ 9.00
7
6914246E01
ref: 7
CLIP,PAD PIN
€ 14.00
8
5915116701
ref: 8
COVER
€ 13.50
9
5912118410
ref: 9
BLEEDER
€ 8.00
10
5515666310
ref: 10
CAP,BLEEDER PLUG
€ 6.00
11
5937120C00
ref: 11
SHIM,INNER
€ 7.50
12
5938120C00
ref: 12
SHIM,OUTER
€ 7.50
13
0155008303
ref: 13
BOLT
€ 3.00
16
6915521E00
ref: 16
SPACER,REAR CALIPER
€ 12.50
17
0910608133
ref: 17
BOLT(8X35)
€ 3.50
18
0916008080
ref: 18
WASHER (8.2X22X3.2)
€ 2.50
