STARTING MOTOR

RF600RU 1994 (R) (E22)

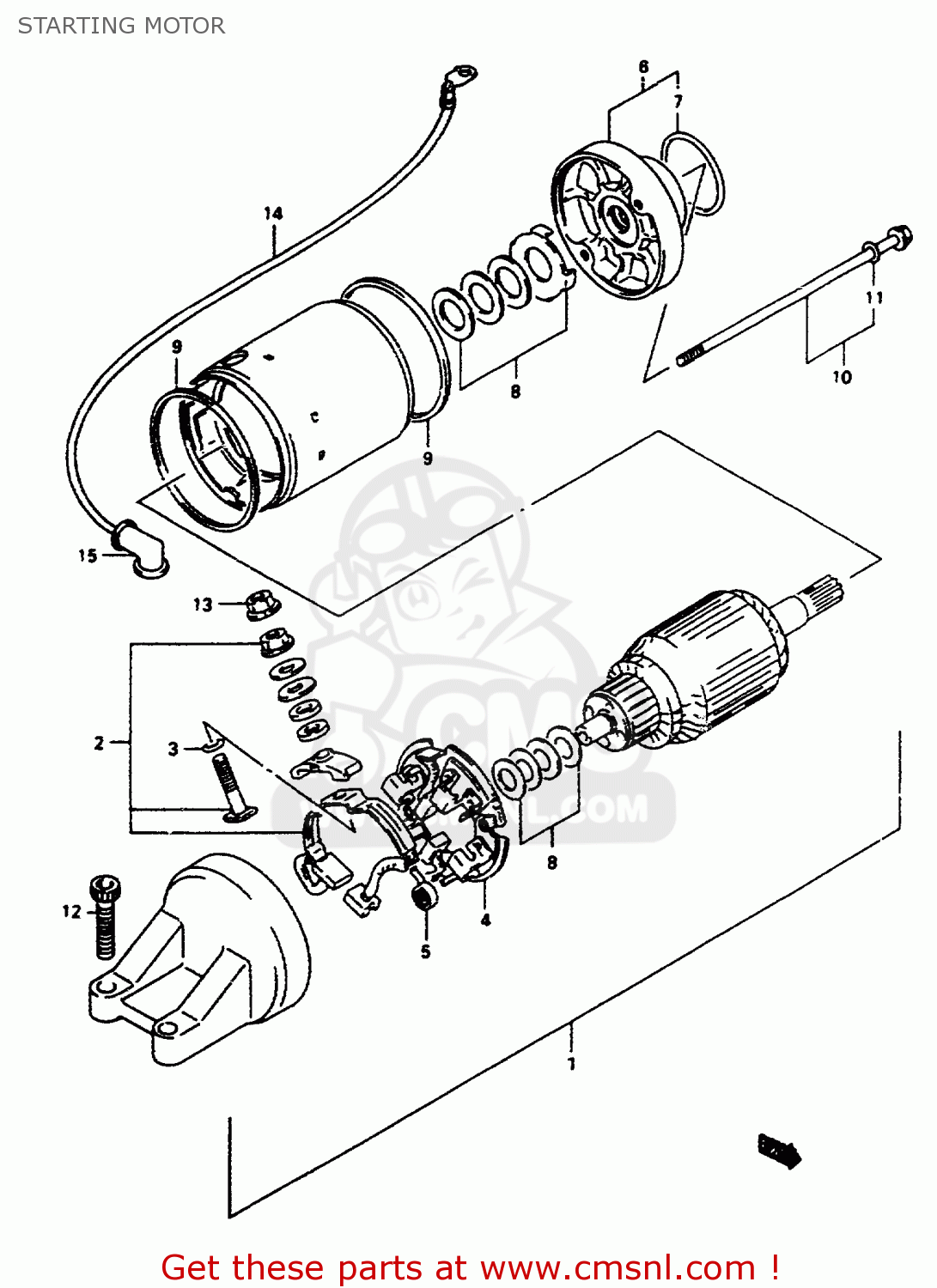

Starting motor diagram RF600RU 1994 (R) (E22)

STARTING MOTOR RF600RU 1994 (R) (E22)

STARTING MOTOR RF600RU 1994 (R) (E22)

prices are in EUR

ref

part #

description

quantity

1

3110046E00
ref: 1

MOTOR ASSEMBLY,STARTING

€ 730.00

2

3113019B10
ref: 2

TERMINAL SET,BRUSH,PLUS

€ 27.50

3

3114349040
ref: 3

O RING

€ 3.00

4

3113246E00
ref: 4

BRUSH,HOLDER SET

€ 47.00

5

3113531300
ref: 5

SPRING,BRUSH

€ 4.00

6

3115046E00
ref: 6

BRACKET ASSEMBLY,FRONT

€ 85.00

7

3115648B00
ref: 7
<31156-46E00

O RING

€ 8.50

8

3117019B10
ref: 8

SHIM SET,STARTING MOTOR

€ 8.00

9

3126431300
ref: 9

O RING

€ 7.50

10

3128019B10
ref: 10

BOLT SET,STARTING MOTOR

€ 8.50

11

3114349040
ref: 11

O RING

€ 3.00

12-1

0712006257
ref: 12-1
MODEL P/R

BOLT

€ 3.00

12-2

0912806024
ref: 12-2
MODEL S/T/V

SCREW (6X25)

€ 2.50

13

0836135068
ref: 13

NUT

€ 2.00

14

3381021E00
ref: 14

WIRE,STARTER MOTOR LEAD

€ 25.50

15

3186148B10
ref: 15

CAP,STARTER MOTOR LEAD

€ 4.50
