TAIL LAMP
RF600RU 1994 (R) (E22)

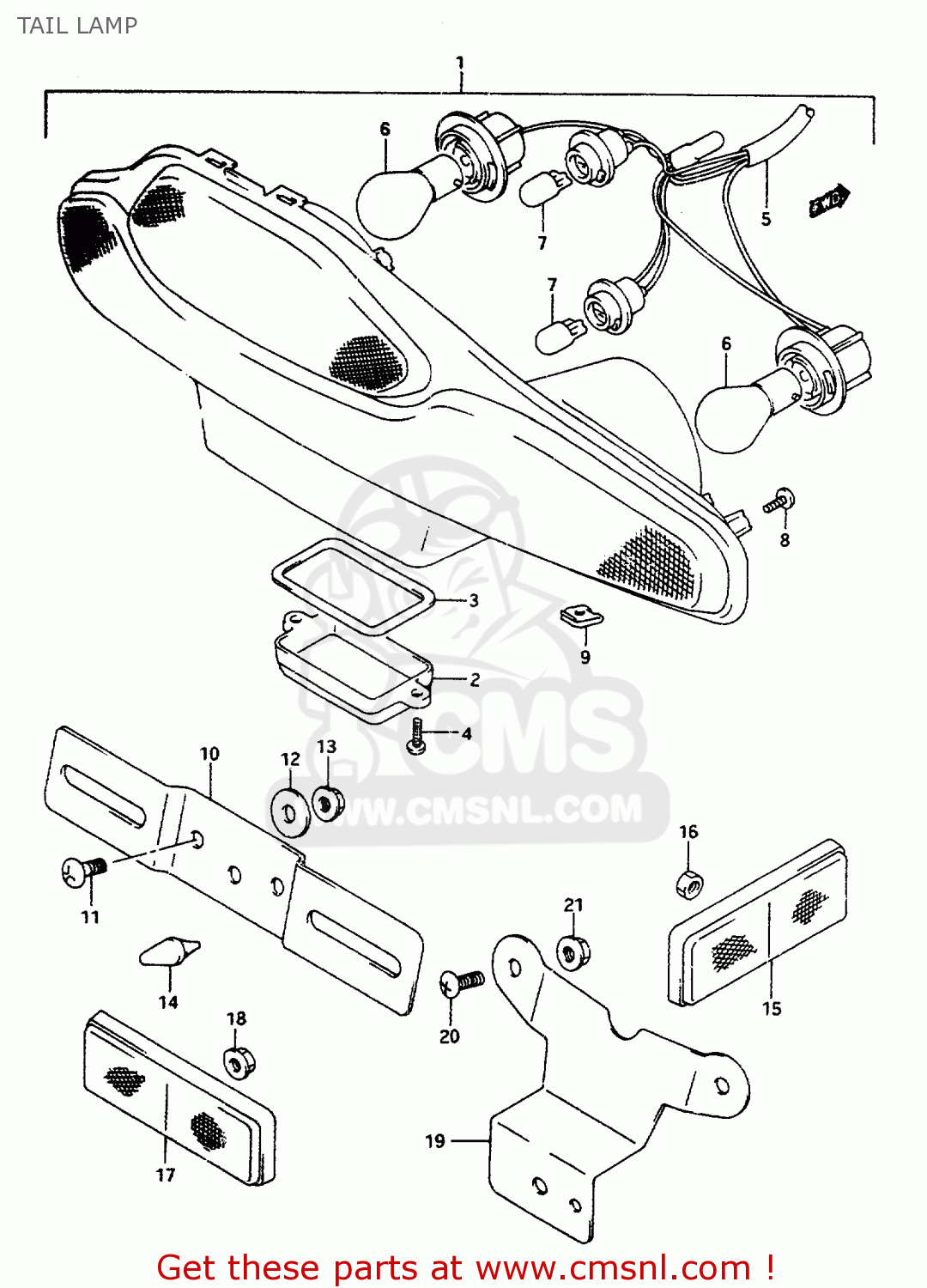

Tail lamp diagram RF600RU 1994 (R) (E22)
TAIL LAMP RF600RU 1994 (R) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3571021E01
ref: 1
<35710-21E00
LAMP ASSY,RR COMBINATION
€ 273.00
2
3591221E00
ref: 2
LENS,LICENSE LAMP
€ 18.50
3
3591326D00
ref: 3
GASKET (NAS)
€ 3.50
4
0321104123
ref: 4
SCREW
€ 1.50
5-1
3571821E00
ref: 5-1
MODEL P/R/S
SOCKET ASSEMBLY
€ 81.00
5-2
3571821E01
ref: 5-2
MODEL T/V
SOCKET & CORD
€ 81.00
6
0947112045
ref: 6
BULB(12V21W)
€ 5.00
7
0947112081
ref: 7
BULB(12V5W)
€ 1.50
8-1
0354104125
ref: 8-1
MODEL P
SCREW
€ 1.50
8-2
0354114123
ref: 8-2
MODEL R/S
SCREW
€ 2.00
8-3
0351114123
ref: 8-3
MODEL T/V
TPG SCREW
€ 2.50
9
0914805021
ref: 9
NUT
€ 1.50
10
3592744110
ref: 10
PLATE,RR LICENSE
€ 22.50
11-1
0214206125
ref: 11-1
MODEL P
SCREW 6X12
€ 2.00
11-2
0214206123
ref: 11-2
MODEL R/S/T/V
SCREW 6X12
€ 2.00
12-1
0916006059
ref: 12-1
MODEL P/R
WASHER,COVER,FRONT
€ 2.00
12-2
0916006088
ref: 12-2
MODEL S/T/V
WASHER(6.5X20X1.6)
€ 2.00
13-1
0831620063
ref: 13-1
MODEL P
NUT
€ 2.00
13-2
0831000063
ref: 13-2
MODEL R/S
NUT 6MM
€ 2.00
13-3
0831610063
ref: 13-3
MODEL T/V
NUT
€ 2.50
14
0932106029
ref: 14
CUSHION
€ 3.00
15
3595043431
ref: 15
E18,E39
REFLEX REFLECTOR,FR SIDE
€ 12.00
16-1
0831022055
ref: 16-1
MODEL P E18
NUT 5MM
€ 2.00
16-2
0831000053
ref: 16-2
MODEL R E18,E39
NUT
€ 2.50
17
3597024D60
ref: 17
REFLECTOR ASSY,RR
€ 19.50
18-1
0831022055
ref: 18-1
MODEL P
NUT 5MM
€ 2.00
18-2
0831000053
ref: 18-2
MODEL R/S/T/V
NUT
€ 2.50
18-3
0831620053
ref: 18-3
MODEL T/V E18,E22
NUT
€ 2.00
19
3597421E00
ref: 19
BRACKET,RR REFLECTOR
€ 12.50
20-1
0214206125
ref: 20-1
MODEL P
SCREW 6X12
€ 2.00
20-2
0214206123
ref: 20-2
MODEL R/S/T/V
SCREW 6X12
€ 2.00
21-1
0831620063
ref: 21-1
MODEL P/R/S
NUT
€ 2.00
21-2
0831610063
ref: 21-2
MODEL T/V
NUT
€ 2.50
