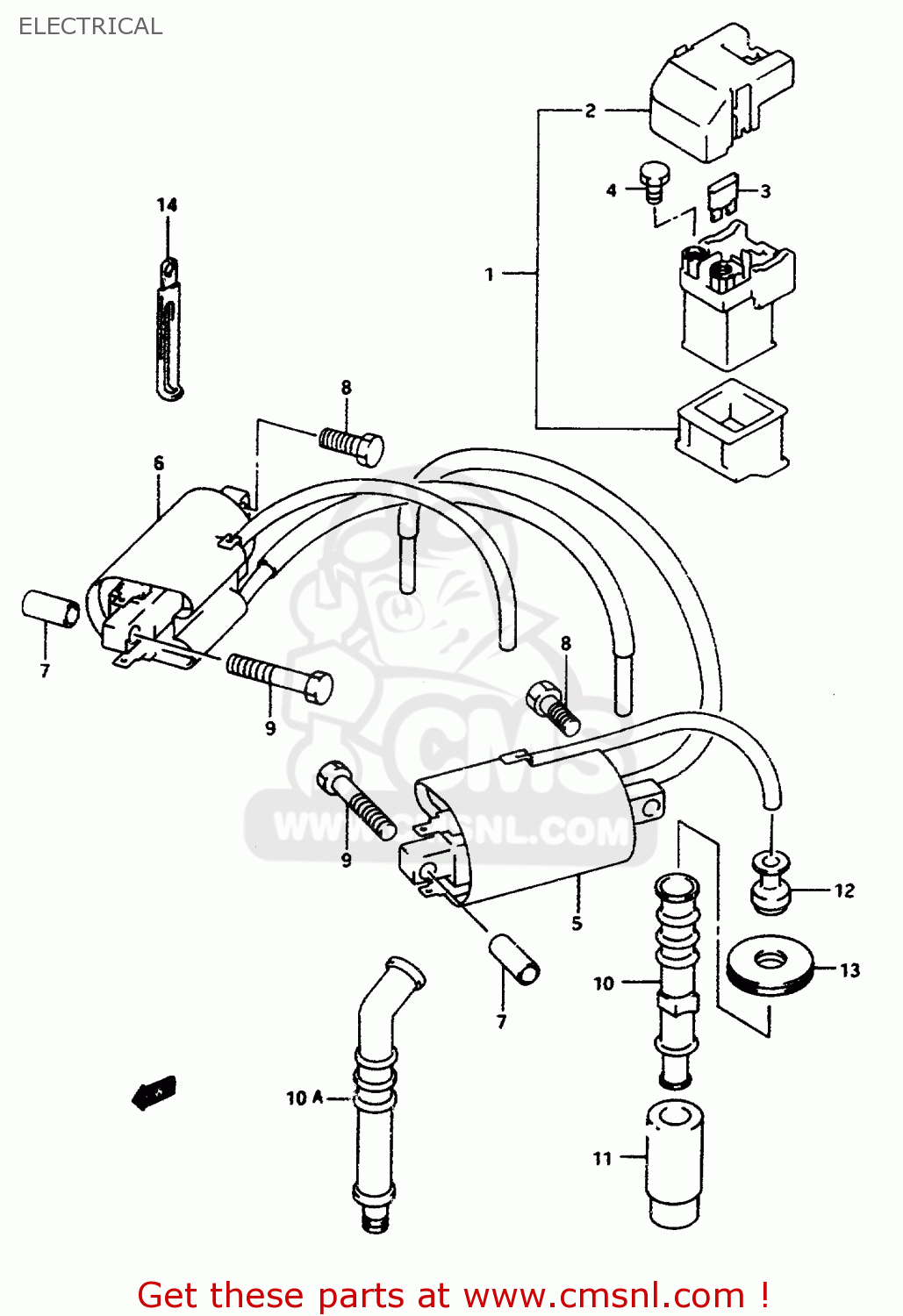

ELECTRICAL

ref

part #

description

quantity

1-1

3180021E00
ref: 1-1
MODEL P/R

RELAY ASSEMBLY,STARTING MOTOR

€ 101.00

1-2

3180021E10
ref: 1-2
MODEL S/T/V

RELAY ASSY,STARTING MOTOR

€ 101.00

2-1

3186121E00
ref: 2-1
MODEL P/R

COVER,RELAY ASSEMBLY

€ 10.50

2-2

3186121E10
ref: 2-2
MODEL S/T/V

COVER,RELAY ASSEMBLY

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3341021E00
ref: 5

COIL ASSEMBLY,IGNITION NO

€ 104.50

6

3342021E00
ref: 6

COIL ASSEMBLY,IGNITION NO

€ 119.00

7

0918006244
ref: 7

SPACER(6.2X15.5X16.5)

€ 4.50

8-1

0110706206
ref: 8-1
MODEL P

BOLT,M6X1X20

€ 2.00

8-2

0150006203
ref: 8-2
MODEL R/S/T/V

BOLT

€ 2.00

9

0910006123
ref: 9

BOLT

€ 2.00

10

3351017E00
ref: 10
MODEL P/R

CAP,SPARK PLUG

€ 41.00

10A

3351017E11
ref: 10A
MODEL S/T/V,<33510-1

CAP ASSY,SPARK PLUG

€ 46.00

11

3354120C00
ref: 11

SEAL,SPARK PLUG

€ 19.50

12

3354238B00
ref: 12

SEAL,HIGH TENSION CORD

€ 4.50

13-1

3354317E00
ref: 13-1
MODEL P/R

COVER,SPARK PLUG CAP

€ 19.00

13-2

3354317E01
ref: 13-2
MODEL S/T/V

COVER,SPARK PLUG CAP

€ 19.00

14-1

0940406403
ref: 14-1
MODEL P/R

CLAMP

€ 2.50

14-2

0940406431
ref: 14-2
MODEL S/T/V

CLAMP(L:65)

€ 2.50

all assemblies
