ALTERNATOR
RF900R 1996 (T) USA (E03)

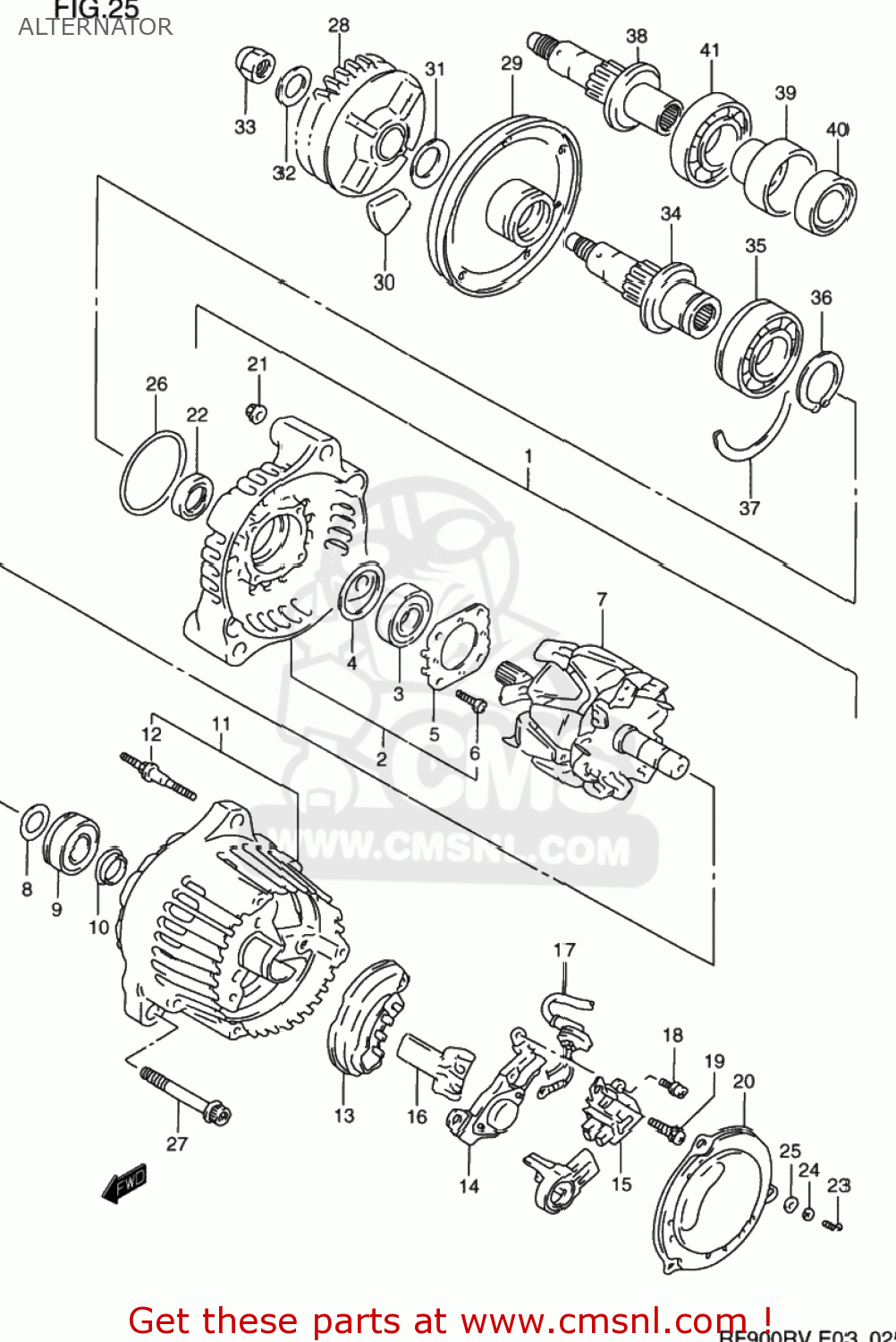

Alternator diagram RF900R 1996 (T) USA (E03)
ALTERNATOR RF900R 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3140017E20
ref: 1-1
31400-17E02
ALTERNATOR ASSEMBLY
€ 676.00
1-2
3140017E30
ref: 1-2
ALTERNATOR ASSY
€ 1,119.50
2
3158017E00
ref: 2
FRAME,DRIVE END
€ 178.00
3
3161206B00
ref: 3
BEARING
€ 36.50
4
3161348B00
ref: 4
COVER,BEARING
€ 5.50
5
3158585251
ref: 5
RETAINER,BEARING
€ 9.50
6
3158617E00
ref: 6
SCREW,BEARING RETAINER
€ 2.50
7-1
3171017E20
ref: 7-1
31710-17E02
ROTOR ASSEMBLY
€ 401.00
7-2
3171017E30
ref: 7-2
ROTOR ASSEMBLY
€ 316.00
8
3161382610
ref: 8
COVER,BEARING
€ 3.50
9
3161248B00
ref: 9
BEARING
€ 42.50
10
3161327A10
ref: 10
COVER(2)
€ 5.50
11
3161117E00
ref: 11
FRAME,END
€ 182.50
12
3158785250
ref: 12
STUD BOLT
€ 9.00
13
3162127A00
ref: 13
HOLDER,RECTIFIER
€ 225.50
14
3250027A00
ref: 14
REGULATOR
€ 321.00
15
3165648B00
ref: 15
HOLDER,BRUSH
€ 55.50
16
3168717E00
ref: 16
COVER,RECTIFIER
€ 4.50
17
3148017E00
ref: 17
WIRE,LEAD
€ 27.50
18
0211204063
ref: 18
02112-0406B
SCREW 4X6
€ 2.00
19
3168827A00
ref: 19
SCREW
€ 2.50
20
3161417E00
ref: 20
COVER
€ 31.50
21
0831000053
ref: 21
08310-0005A
NUT
€ 2.50
22-1
3178048B00
ref: 22-1
31780-27X50
SEAL SET,OIL
€ 47.50
22-2
3178027X50
ref: 22-2
SERVICE KIT(A)
€ 47.50
23
0211205085
ref: 23
02112-0508A
SCREW
€ 2.00
24
0832101053
ref: 24
08321-0105A
LOCK,WASHER
€ 3.00
25
0832201053
ref: 25
08322-0105A
WASHER
€ 2.50
26
3115617E00
ref: 26
O RING
€ 4.00
27
0712008653
ref: 27
07120-0865B
BOLT
€ 4.00
28
2273021E00
ref: 28
GEAR,GENERATOR DRIVEN
€ 163.00
29
2273421E00
ref: 29
22734-21E01
HOUSING,GENERATOR DAMPER
€ 160.50
30
2123117E10
ref: 30
DAMPER,GENERATOR
€ 12.00
31
0916418006
ref: 31
WASHER
€ 3.50
32
0821112243
ref: 32
WASHER
€ 3.00
33
0915912010
ref: 33
NUT
€ 4.00
34
2273221E00
ref: 34
SHAFT,GENERATOR DRIVE
€ 146.50
35
0926225110
ref: 35
BEARING(25X52X15)
€ 23.50
36
0833131256
ref: 36
08331-3125A
CIRCLIP
€ 2.00
37
0939052003
ref: 37
C RING
€ 2.00
38
2273246E00
ref: 38
SHAFT,GENERATOR DRIVE
€ 134.00
39
2273646E00
ref: 39
22736-46E01
HUB,GENERATOR DRIVE
€ 42.50
40
2274046E00
ref: 40
22740-46E02
COUPLING COMP,GENERATOR
€ 54.50
41
0926225116
ref: 41
BEARING(25X52X13)
€ 36.50
