SPEEDOMETER
RF900R 1996 (T) USA (E03)

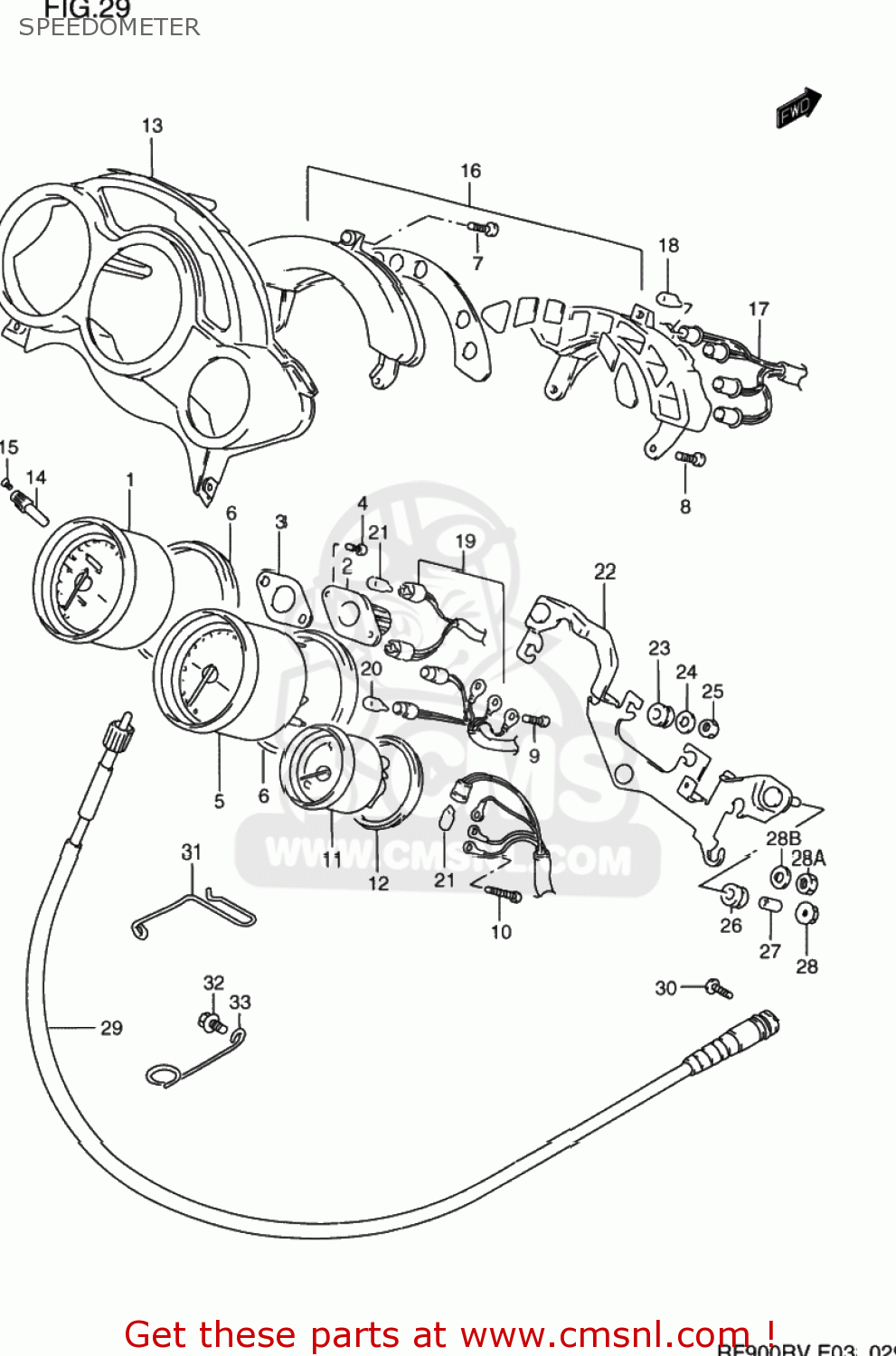

Speedometer diagram RF900R 1996 (T) USA (E03)
SPEEDOMETER RF900R 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3412031E20
ref: 1
SPEEDOMETER
€ 363.50
2
3413148B10
ref: 2
GEAR BOX
€ 150.00
3
3413217C00
ref: 3
GASKET,METER GEAR BOX (NAS)
€ 5.50
4
0211274103
ref: 4
02112-7410B
SCREW
€ 2.00
5
3421031E10
ref: 5
TACHOMETER
€ 414.50
6
3419121E10
ref: 6
CUSHION,METER
€ 11.50
7-1
3418314A00
ref: 7-1
34184-12B00
SCREW
€ 1.50
7-2
3418412B00
ref: 7-2
SCREW
€ 1.50
8
3418321E01
ref: 8
03511-0416A
SCREW
€ 1.50
9-1
3424917E10
ref: 9-1
SCREW (3X10)
€ 2.50
9-2
3414919D00
ref: 9-2
SCREW
€ 2.50
10
3438309400
ref: 10
SCREW(3X22)
€ 2.50
11
3442031E10
ref: 11
TEMP METER
€ 130.50
12
3419121E20
ref: 12
CUSHION,TEMP METER
€ 12.50
13
3419021E10
ref: 13
VISOR
€ 77.00
14
3412421E10
ref: 14
KNOB,TRIP METER
€ 7.50
15-1
3498113A00
ref: 15-1
09139-02003
ROTOR,SPEED
€ 2.00
15-2
0913902003
ref: 15-2
SCREW(2X6)
€ 2.00
16
3638021E20
ref: 16
BOX ASSY,PILOT
€ 109.00
17
3639421E11
ref: 17
CORD ASSY,PILOT BOX
€ 60.50
18
0947112082
ref: 18
BULB(12V3.4W,T10,BF175-01450A)
€ 3.50
19
3417021E10
ref: 19
CORD ASSEMBLY
€ 107.00
20
0947112100
ref: 20
BULB(12V1.7W,WB372,T7)
€ 2.00
21
0947112108
ref: 21
BULB(12V1.7W,T6.5)
€ 2.00
22-1
3495021E11
ref: 22-1
34950-21E12
BRACKET,METER
€ 122.50
22-2
3495021E12
ref: 22-2
BRACKET,METER
€ 122.50
23
3418921E10
ref: 23
CUSHION,METER
€ 3.50
24-1
3472741410
ref: 24-1
09160-04022
WASHER,METER
€ 1.50
24-2
0916004017
ref: 24-2
09160-04022
WASHER (4.3X13X0.80)
€ 1.50
25
0831000047
ref: 25
NUT
€ 2.00
26
0932008048
ref: 26
09320-08501
CUSHION
€ 3.00
27
0918006044
ref: 27
09180-06248
SPACER (6.1X8X9.5)
€ 2.50
28
0915906076
ref: 28
NUT
€ 3.00
28A
0914006027
ref: 28A
NUT
€ 1.50
28B
0916006028
ref: 28B
WASHER(6.5X18X1)
€ 1.50
29
3491031E00
ref: 29
CABLE ASSY,SPEEDOMETER
€ 77.50
30
0211205163
ref: 30
02112-0516A
SCREW
€ 2.00
31
3493821E00
ref: 31
GUIDE,SPEEDOMETER CABLE
€ 6.00
32
0155006163
ref: 32
01550-0616A
BOLT
€ 2.50
33
3493917D00
ref: 33
GUIDE,SPEEDOMETER CABLE NO.3
€ 5.50
