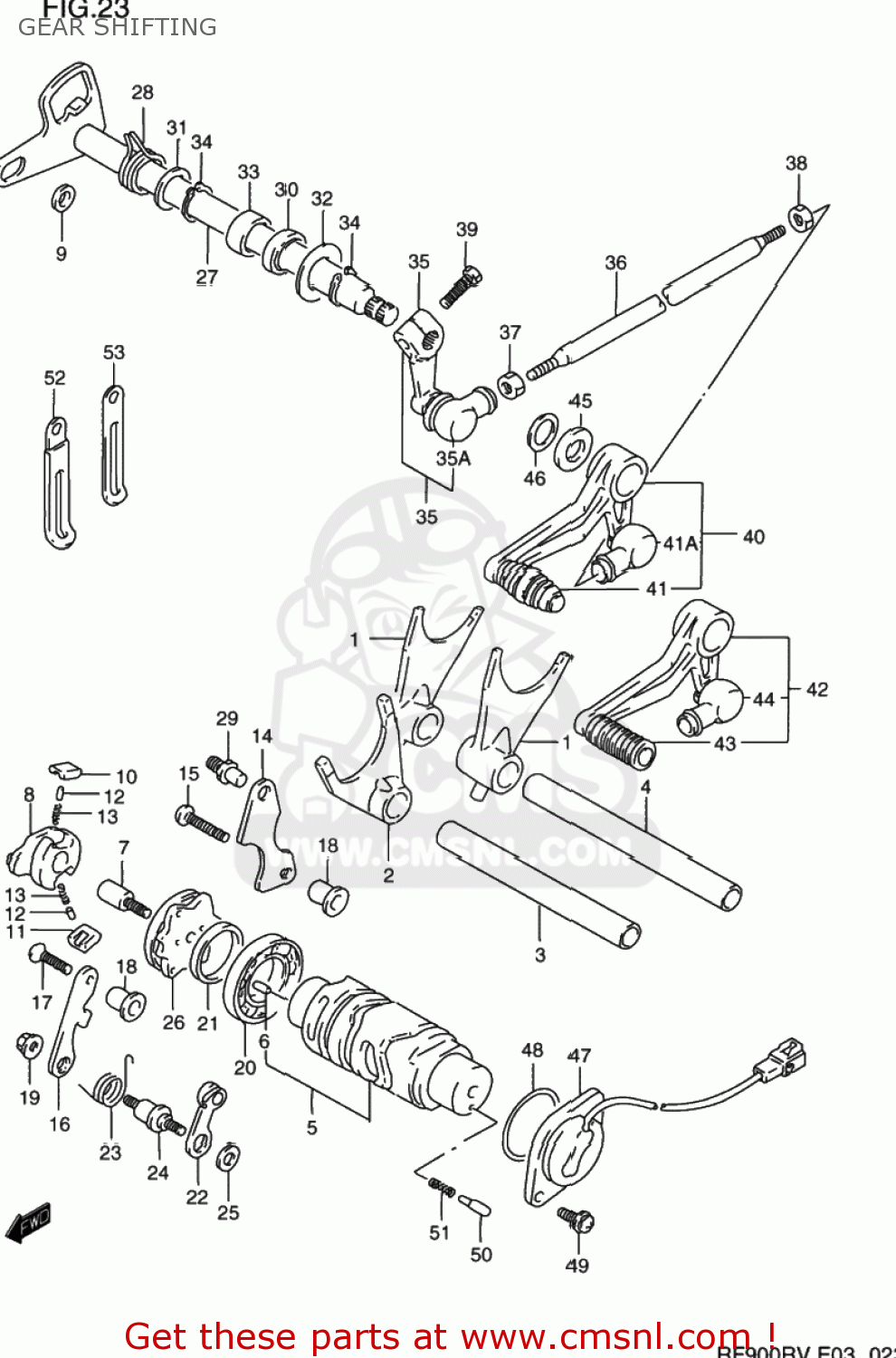

GEAR SHIFTING

ref

part #

description

quantity

1

2521117E00
ref: 1
25211-17E01

FORK,GEAR SHIFT NO.1

€ 64.50

2

2523146E00
ref: 2

FORK,GEAR SHIFT NO.3

€ 76.00

3

2541126D01
ref: 3

SHAFT,GEAR SHIFT FORK

€ 16.00

4

2541127A00
ref: 4

SHAFT,GEAR SHIFT FORK(L:128)

€ 23.50

5

2531046E00
ref: 5

CAM,GEAR SHIFT

€ 165.50

6

0422104089
ref: 6

PIN

€ 1.50

7

2531212C00
ref: 7

PIN,SHIFT CAM DRIVEN GEAR

€ 6.00

8-1

2532233C00
ref: 8-1
25322-33C01

SHIFTER,GEAR SHIFT CAM

€ 49.50

8-2

2532233C01
ref: 8-2

SHIFTER,GEAR SHIFT CAM

€ 49.50

9

0918007014
ref: 9

SPACER(7X10X5)

€ 4.00

10

2532334201
ref: 10

PAWL,GEAR SHIFT NO.1

€ 6.00

11

2532434201
ref: 11

PAWL,GEAR SHIFT NO.2

€ 6.00

12

0926105003
ref: 12

PIN(5X8)

€ 1.50

13

0944004003
ref: 13

SPRING

€ 1.50

14

2533126D00
ref: 14

LIFTER,GEAR SHIFT PAWL

€ 6.00

15

0211206303
ref: 15
02112-0630A

SCREW 6X30

€ 2.50

16

2534117E00
ref: 16

GUIDE,GEAR SHIFT CAM

€ 7.50

17

0212206303
ref: 17
02122-0630B

SCREW

€ 2.00

18

0918006202
ref: 18

SPACER(6.1X10X16)

€ 4.00

19

0831610063
ref: 19
08316-1006B

NUT

€ 2.50

20

0926225006
ref: 20

BEARING(25X47X8)

€ 24.00

21

0916025059
ref: 21

WASHER(25X32X3)

€ 5.00

22

2535026D01
ref: 22

STOPPER,GEAR SHIFT CAM

€ 8.50

23-1

2535526D20
ref: 23-1
25355-26D21

SPRING,STOPPER ARM

€ 11.00

23-2

2535526D21
ref: 23-2

SPRING,STOPPER ARM

€ 11.00

24

2535612C00
ref: 24

SUPPORT,CAM STOPPER ARM

€ 9.50

25

0821106141
ref: 25

WASHER

€ 2.50

26

2538012B00
ref: 26

PLATE,GEAR SHIFT CAM

€ 10.00

27

2551017E10
ref: 27

SHAFT,GEAR SHIFT

€ 66.00

28-1

0944420002
ref: 28-1
09444-20003

SPRING

€ 5.50

28-2

0944420003
ref: 28-2

SPRING

€ 5.50

29

2567101000
ref: 29
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.00

30

0928314006
ref: 30

SEAL,OIL(14X22X6)

€ 6.50

31-1

0821114221
ref: 31-1
09181-14167

WASHER,THRUST

€ 3.50

31-2

0918114167
ref: 31-2

SHIM(14X22X1)

€ 3.50

32

0916014016
ref: 32

WASHER(14X29X0.8)

€ 1.50

33

0926314027
ref: 33

BEARING(14X20X12)

€ 11.00

34

0833131146
ref: 34
08331-3114A

CIRCLIP

€ 2.00

35

2552019C02
ref: 35

ARM,GEAR SHIFT LINK

€ 53.50

35A

2552647000
ref: 35A

COVER,DUST

€ 3.50

36-1

2552521E00
ref: 36-1
25525-21E10

ROD,GEAR SHIFT LINK

€ 16.00

36-2

2552521E10
ref: 36-2

ROD,GEAR SHIFT LINK

€ 16.00

37

0914006011
ref: 37

NUT

€ 1.50

38

0831000067
ref: 38

NUT

€ 2.50

39

0150006257
ref: 39

BOLT

€ 2.00

40

2560017C03
ref: 40
25600-33E00

LEVER ASSEMBLY,GEAR SHIFTING

€ 106.00

41

2565216500
ref: 41

RUBBER,GEAR SHIFT PEDAL

€ 4.00

41A

2552647000
ref: 41A

COVER,DUST

€ 3.50

42

2560033E00
ref: 42

LEVER ASSY,GEAR SHIFT

€ 106.00

43

2565220C00
ref: 43

RUBBER,GEAR SHIFT PEDAL

€ 8.00

44

2552647000
ref: 44

COVER,DUST

€ 3.50

45

0916014052
ref: 45

WASHER(14X27X4)

€ 4.00

46

0916018022
ref: 46

WASHER(18X24X1)

€ 3.00

47

3772048B00
ref: 47

TERMINAL BASE ASSY,NEUTRAL

€ 57.00

48

0928035006
ref: 48

O RING(D:2.4,ID:35.5)

€ 4.00

49

0211275163
ref: 49
02112-7516A

SCREW

€ 2.50

50

0920905011
ref: 50

PIN(5X15.5)

€ 2.00

51

0944004010
ref: 51

SPRING

€ 1.50

52-1

0940406401
ref: 52-1
09404-06432

CLAMP L:35

€ 2.50

52-2

0940406429
ref: 52-2

CLAMP(L:45)

€ 2.50

53-1

0940406426
ref: 53-1
09404-06433

CLAMP

€ 3.00

53-2

0940406433
ref: 53-2

CLAMP(L:80)

€ 3.00
