HEADLAMP

RF900R 1996 (T) USA (E03)

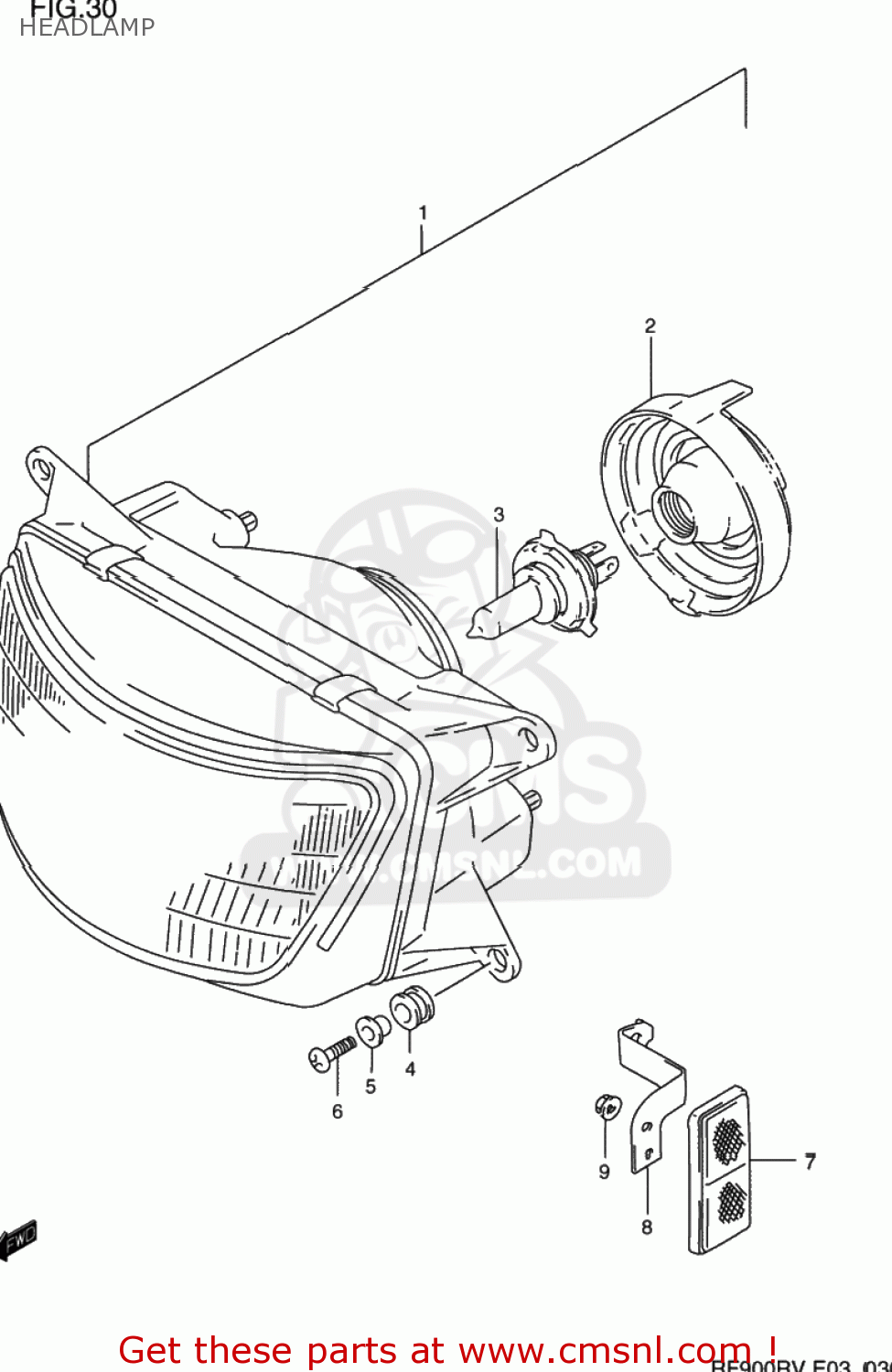

Headlamp diagram RF900R 1996 (T) USA (E03)

HEADLAMP RF900R 1996 (T) USA (E03)

HEADLAMP RF900R 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510021E00999
ref: 1

HEADLAMP ASSY

€ 273.00

2

3517348B00
ref: 2

COVER,SOCKET

€ 10.50

3

0947112060
ref: 3

BULB(12V60/55W,H4)

€ 8.00

4

0932007014
ref: 4

CUSHION

€ 3.50

5

0916905018
ref: 5

WASHER

€ 2.50

6

0211205163
ref: 6
02112-0516A

SCREW

€ 2.00

7

3595014A00
ref: 7

REFLECTOR,REFLEX FR

€ 15.00

8-1

3595640C01
ref: 8-1

BRACKET,FR SIDE REFLECTOR,R

€ 7.50

8-2

3595740C01
ref: 8-2

BRACKET,FR SIDE REFLECTOR,L

€ 7.50

9

0831000053
ref: 9
08310-0005A

NUT

€ 2.50
