CLUTCH MASTER CYLINDER

RF900R 1996 (T) USA (E03)

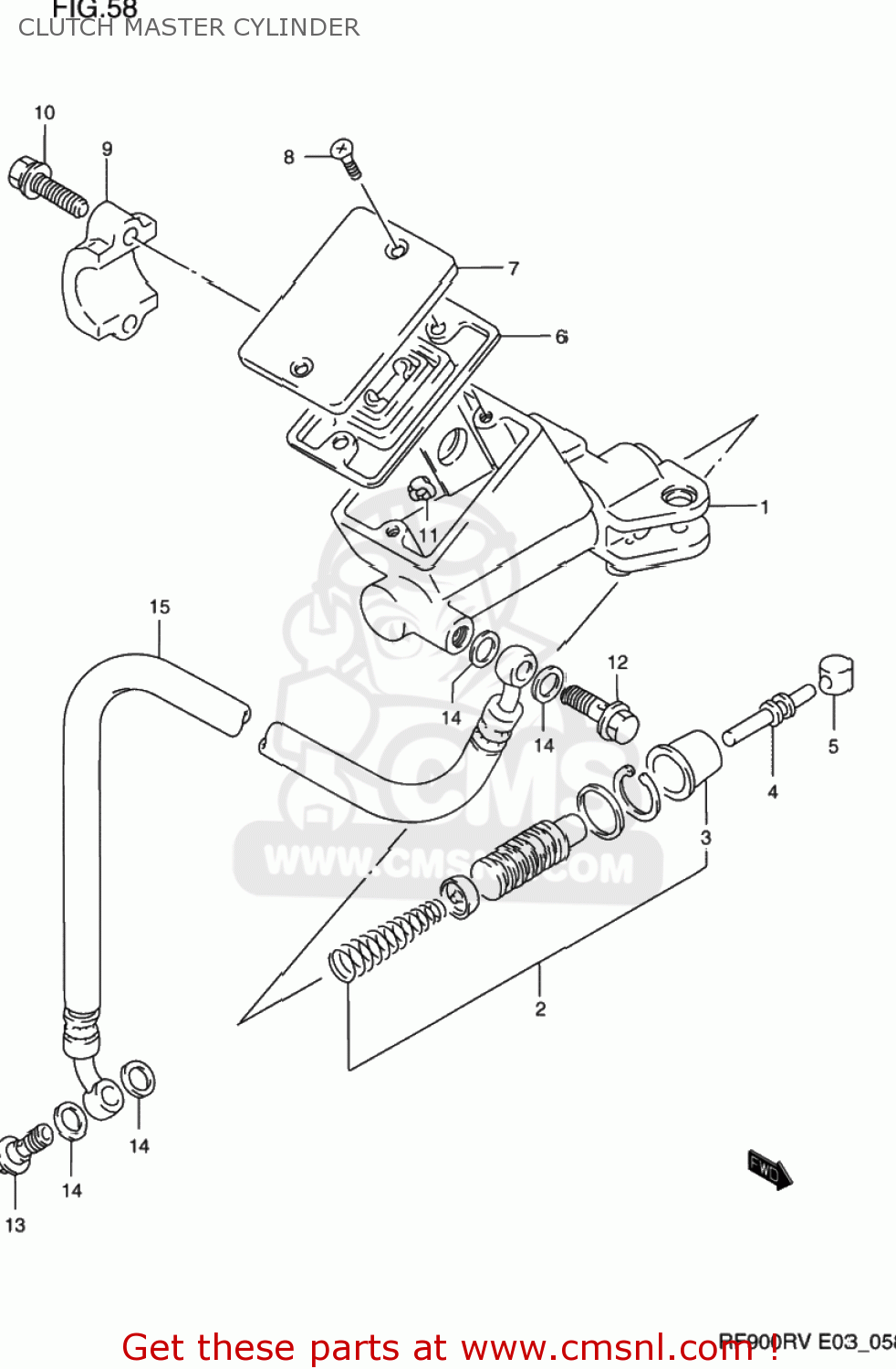

Clutch master cylinder diagram RF900R 1996 (T) USA (E03)

CLUTCH MASTER CYLINDER RF900R 1996 (T) USA (E03)

CLUTCH MASTER CYLINDER RF900R 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5980046E00
ref: 1

CYLINDER ASSY,CLUTCH MASTER

€ 287.50

2

5980008810
ref: 2

PISTON & CUP SET

€ 36.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

5987108A00
ref: 4

ROD,PUSH

€ 5.50

5

5989208A00
ref: 5

BUSH

€ 5.50

6

5966744B00
ref: 6

DIAPHRAGM

€ 8.00

7

6966924A01
ref: 7

CAP

€ 12.00

8

6968949300
ref: 8

SCREW

€ 1.50

9

5967136500
ref: 9

HOLDER

€ 10.00

10

5967519C00
ref: 10

BOLT(6X25)

€ 3.00

11

5966448B00
ref: 11

PROTECTOR

€ 8.00

12

0936010040
ref: 12
09360-10062

BOLT UNION

€ 5.00

13

0936010039
ref: 13
09360-10061

BOLT UNION

€ 6.50

14

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00

15

5991031E00
ref: 15

HOSE COMP,CLUTCH

€ 208.50
