AIR CLEANER

RG125C 1986 (G) (E02 E04 E15 E17 E18 E21 E24 E30)

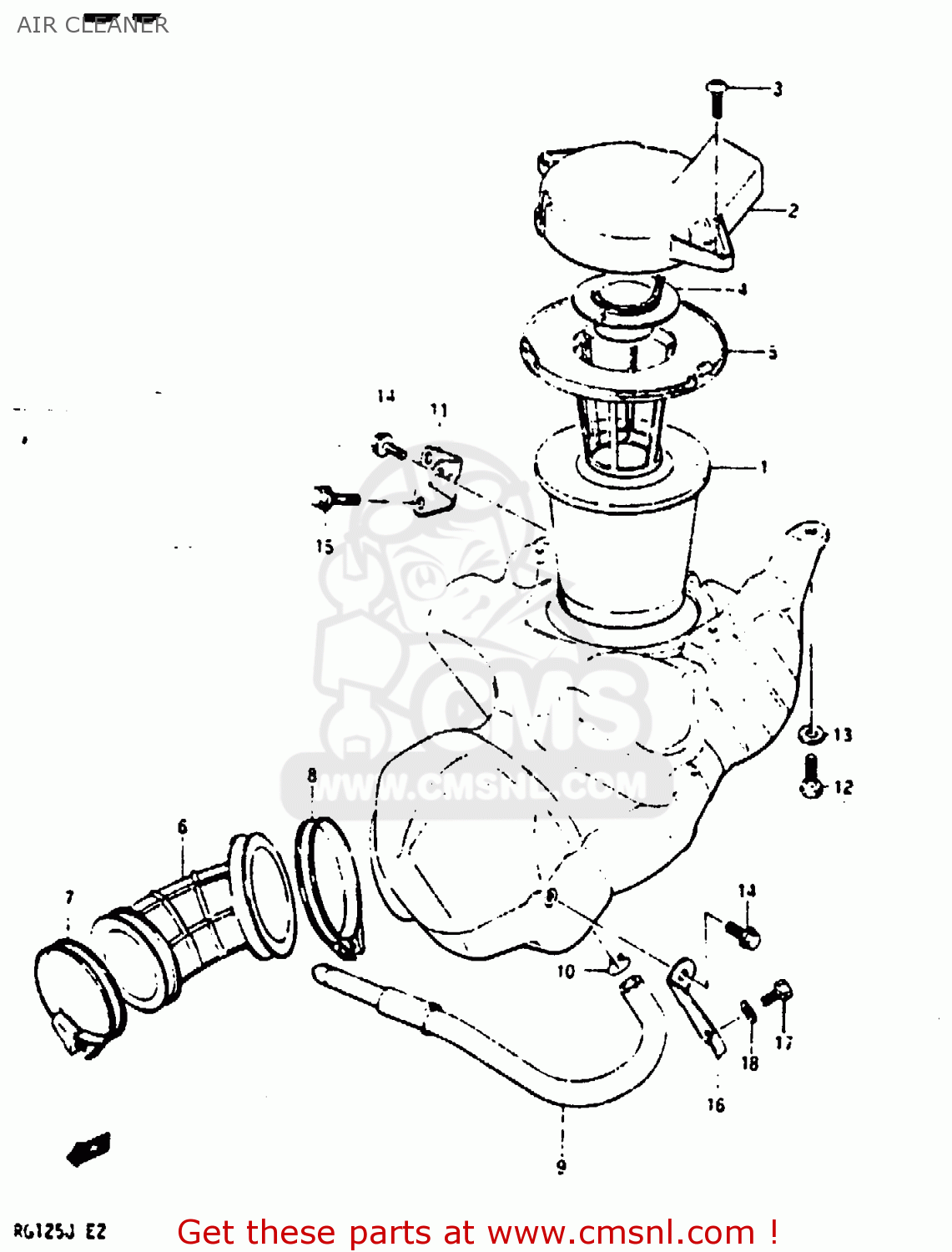

Air cleaner diagram RG125C 1986 (G) (E02 E04 E15 E17 E18 E21 E24 E30)

prices are in EUR

ref

part #

description

quantity

1370036A02
ref: 0

CLEANER ASSY, AIR

€ 138.00

1378136A02
ref: 1

FILTER

€ 28.50

1389136A01
ref: 2

COVER, INLET

€ 14.00

0214205104
ref: 3

SCREW 5X10

€ 2.50

1389436A01
ref: 4

GUIDE, INLET

€ 13.00

1379136A01
ref: 5

HOLDER

€ 13.00

1388136A01
ref: 6

TUBE,AIR CLEANER OUTLET

€ 25.50

0940252208
ref: 7

CLAMP

€ 5.50

0940264208
ref: 8

CLAMP

€ 6.00

1387021264
ref: 9

DRAIN TUBE

€ 16.50

1382400A00
ref: 10

CLIP

€ 2.50

1376236A00
ref: 11

BRACKET, AIR CLEANER

€ 3.50

0110706207
ref: 12

BOLT

€ 2.00

0916006019
ref: 13

WASHER(6.5X16X1.2)

€ 1.50

0151706108
ref: 14

BOLT

€ 2.50

0151706167
ref: 15

BOLT 6X16

€ 1.50

1376136A02
ref: 16

BRACKET, AIR CLEANER

€ 6.50

0110706167
ref: 17

BOLT

€ 3.00

0916006006
ref: 18
@l09160-06007

WASHER

€ 2.00
