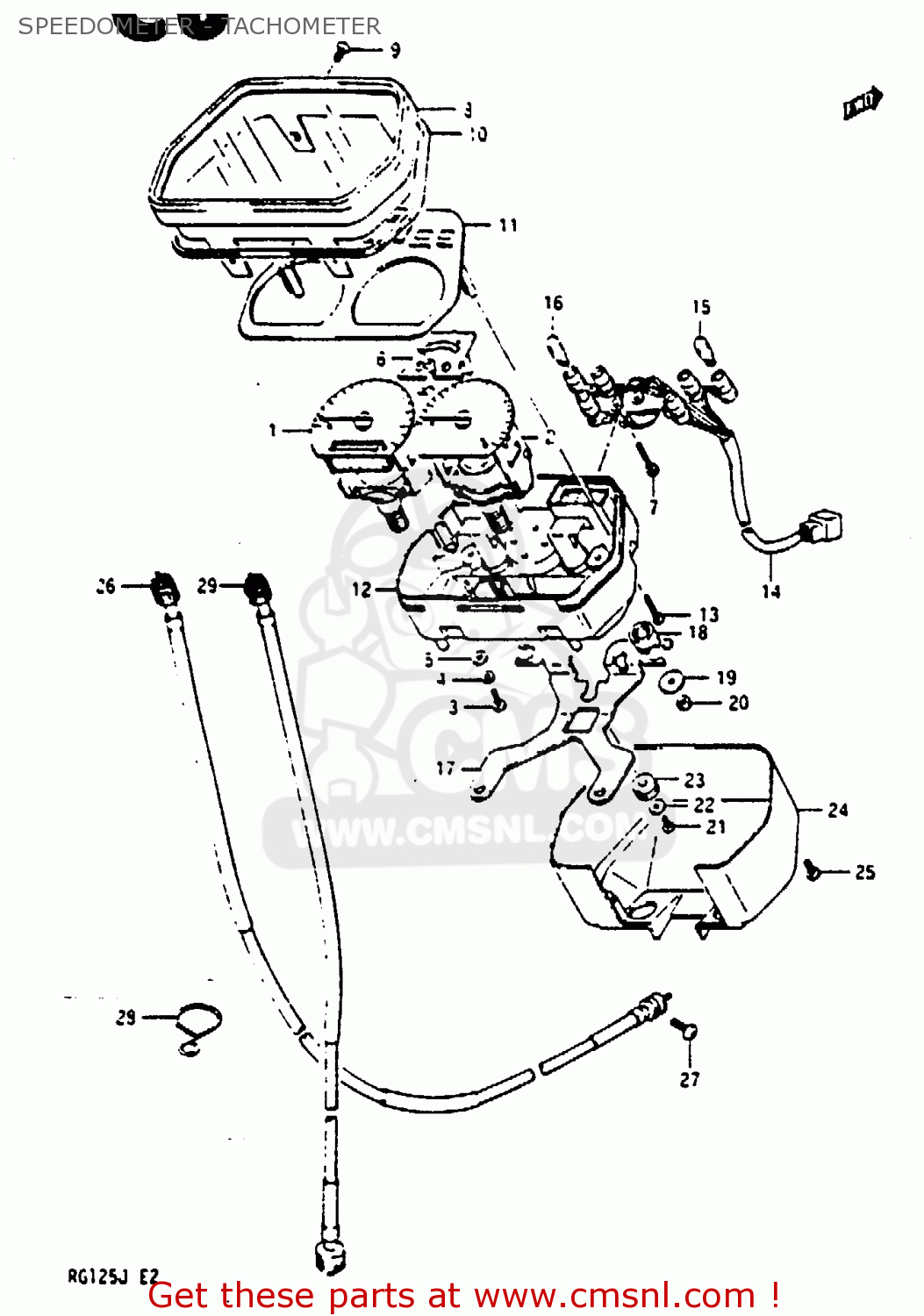

SPEEDOMETER - TACHOMETER - RG125C 1986 (G) (E02 E04 E15 E17 E18 E21 E24 E30)

ref

part #

description

quantity

1-1

3412036A20
ref: 1-1
E2

SPEEDOMETER (MILE/KILO)

€ 175.50

1-2

3412036A10
ref: 1-2
E4, E15, E17, E18, E

SPEEDOMETER (KILO)

€ 225.50

2-1

3422036A00
ref: 2-1

TACHOMETER

€ 160.50

2-2

3422036A40
ref: 2-2
E24

TACHOMETER

€ 160.50

3

0211204106
ref: 3

SCREWM4X0.7X10

€ 1.00

4

0832121046
ref: 4

LOCK WASHER

€ 2.00

5

0832221046
ref: 5

WASHER

€ 5.00

6

3442036A00
ref: 6

TEMPMETER

€ 83.00

7

3438309400
ref: 7

SCREW(3X22)

€ 2.50

8

3415004700
ref: 8

HOOD METER

€ 33.00

9

0322104106
ref: 9

SCREW

€ 2.00

10

3418804700
ref: 10

GASKET (NAS)

€ 5.50

11-1

3412504700
ref: 11-1

PANEL, PILOT LENS

€ 23.50

11-2

3412536A70
ref: 11-2
E17

PANEL, PILOT LENS

€ 31.00

12

3411136A00
ref: 12

CASE, METER

€ 43.50

13

3645633220
ref: 13

SCREW,INDICATOR

€ 1.50

14

3417336A01
ref: 14

SOCKET

€ 67.00

15

0947112028
ref: 15

BULB(12V3.4W,T10)

€ 3.50

16

0947112077
ref: 16

BULB(12V1.7W,T10,WB121)

€ 1.00

17

3495036A00
ref: 17

BRACKET, METER

€ 48.00

18

3495516420
ref: 18

CUSHION,METER NO.1

€ 4.00

19

3418145410
ref: 19

WASHER,METER

€ 2.00

20

0831022058
ref: 20

NUT

€ 2.50

21

0214203126
ref: 21

SCREW

€ 2.00

22

3438433220
ref: 22

WASHER,FUEL METER

€ 2.00

23

3418913A10
ref: 23

CUSHION

€ 5.00

24

3415236A00
ref: 24

COVER, LOWER

€ 27.50

25

0214204125
ref: 25

SCREW

€ 1.50

26

3491036A00
ref: 26

CABLE ASSY,SPEEDOMETER

€ 63.50

27

0211205164
ref: 27

SCREW

€ 2.00

28

3493834A00
ref: 28

GUIDE, SPEEDOMETER CABLE

€ 3.00

29

3494036A00
ref: 29

CABLE ASSY,TACHOMETER

€ 52.00
