COWLING (MODEL J 2WB, 3HZ)

RG125C 1986 (G) (E02 E04 E15 E17 E18 E21 E24 E30)

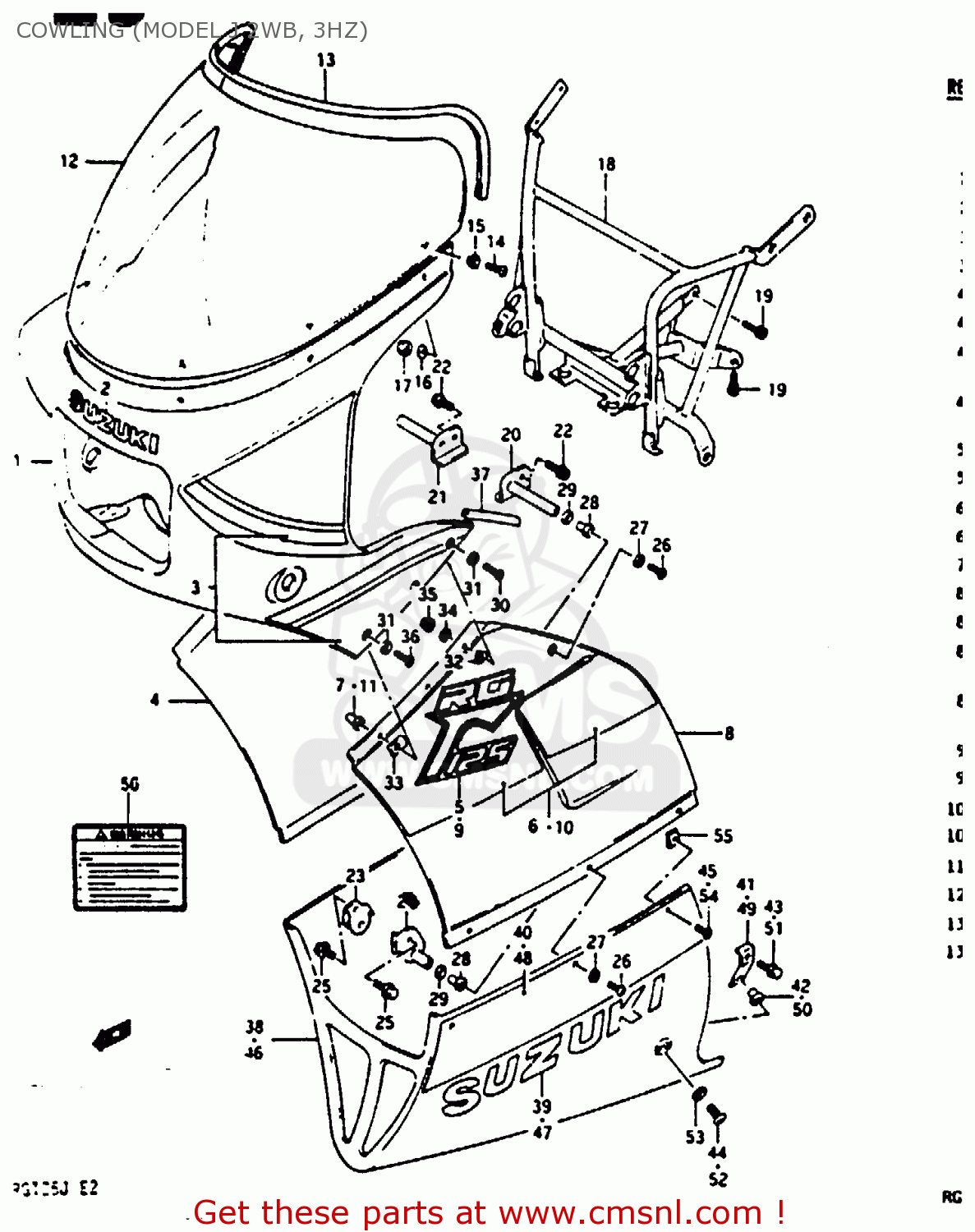

Cowling (model j 2wb, 3hz) diagram RG125C 1986 (G) (E02 E04 E15 E17 E18 E21 E24 E30)

COWLING (MODEL J 2WB, 3HZ) RG125C 1986 (G) (E02 E04 E15 E17 E18 E21 E24 E30)
COWLING (MODEL J 2WB, 3HZ) RG125C 1986 (G) (E02 E04 E15 E17 E18 E21 E24 E30)
COWLING (MODEL J 2WB, 3HZ) RG125C 1986 (G) (E02 E04 E15 E17 E18 E21 E24 E30)
prices are in EUR
ref
part #
description
quantity
1-1
9441036A8030H
ref: 1-1
FOR 2WB
BODY, COWLING (WHITE)
€ 312.00
1-2
9441036A800CY
ref: 1-2
FOR 3HZ
BODY,COWLING(BLACK)
€ 211.00
2-1
6818505C10019
ref: 2-1
FOR 30H
EMBLEM,FR
€ 10.00
2-2
6818505C10742
ref: 2-2
FOR 0CY
EMBLEM,COWLING FR
6818505C10742
€ 9.00
3-1
6827037A002WB
ref: 3-1
FOR 30H
TAPE SET
€ 35.00
3-2
6827037A003HZ
ref: 3-2
FOR 0CY
TAPE SET
€ 37.50
4-1
9443037A0030H
ref: 4-1
COVER, SIDE RH (WHITE)
€ 145.50
4-2
9443037A000CY
ref: 4-2
COVER, SIDE RH (BLACK)
€ 143.50
4-3
9443037A2030H
ref: 4-3
E15, E17, E18, E30,
COVER, SIDE RH (WHITE)
€ 143.50
4-4
9443037A200CY
ref: 4-4
E15, E17, E18, E30,
COVER, SIDE RH (BLACK)
€ 143.50
5-1
6868137A003FU
ref: 5-1
FOR 30H
EMBLEM
€ 0.00
5-2
6868137A003JC
ref: 5-2
FOR 0CY
EMBLEM
€ 0.00
6-1
6868037A0028V
ref: 6-1
FOR 30H
TAPE SET, SIDE RH
€ 0.00
6-2
6868037A0020G
ref: 6-2
FOR 0CY
TAPE SET, SIDE RH
€ 0.00
7
9443416710
ref: 7
NUT,COWLING COVER
9443416710
€ 4.50
8-1
9444037A0030H
ref: 8-1
COVER, SIDE LH (WHITE)
€ 145.50
8-2
9444037A000CY
ref: 8-2
COVER, SIDE LH (BLACK)
€ 187.00
8-3
9444037A2030H
ref: 8-3
E15, E17, E18, E30,
COVER, SIDE LH (WHITE)
€ 187.00
8-4
9444037A200CY
ref: 8-4
E15, E17, E18, E30,
COVER, SIDE LH (BLACK)
€ 187.00
9-1
6868137A003FU
ref: 9-1
FOR 30H
EMBLEM
€ 0.00
9-2
6868137A003JC
ref: 9-2
FOR 0CY
EMBLEM
€ 0.00
10-1
6869037A0028V
ref: 10-1
FOR 30H
TAPE SET, SIDE LH
€ 0.00
10-2
6869037A0020G
ref: 10-2
FOR 0CY
TAPE SET, SIDE LH
€ 0.00
11
9443416710
ref: 11
NUT,COWLING COVER
9443416710
€ 4.50
12
9461136A00
ref: 12
SCREEN,COWLING WIND
€ 244.50
13-1
9463136A00
ref: 13-1
MOLDING, SCREEN
9463136A00
€ 15.00
13-2
9463136A10
ref: 13-2
E17
MOLDING, SCREEN
€ 0.00
14
0913905024
ref: 14
SCREW(5X14)
0913905024
€ 2.50
15
0932005008
ref: 15
CUSHION
0932005008
€ 5.00
16
0832221055
ref: 16
WASHER,5MM
0832221055
€ 2.50
17
0831921055
ref: 17
NUT 8MM
0831921055
€ 1.50
18
9451036A10
ref: 18
BRACE,COWLING
9451036A10
€ 94.50
19
0712006165
ref: 19
BOLT
€ 2.50
20
9452036A10
ref: 20
BRACE, REAR LH
9452036A10
€ 9.00
21
9459036A10
ref: 21
BRACE, REAR RH
9459036A10
€ 9.00
22
0712006168
ref: 22
BOLT
€ 2.50
23
9453036A10
ref: 23
BRACE, SIDE RH
9453036A10
€ 7.00
24
9454036A10
ref: 24
BRACE, SIDE LH
9454036A10
€ 7.00
25
0151706167
ref: 25
BOLT 6X16
0151706167
€ 1.50
26
0214205257
ref: 26
SCREW
0214205257
€ 1.00
27
0916105010
ref: 27
WASHER(5.2X11X1)
0916105010
€ 2.00
28
9461936A10
ref: 28
NUT
9461936A10
€ 6.50
29
0916010026
ref: 29
WASHER (10.5X18X1)
0916010026
€ 2.00
30
0214206167
ref: 30
SCREW
0214206167
€ 2.00
31
0916106008
ref: 31
WASHER(6.5X13X1)
0916106008
€ 1.50
32
9443836A00
ref: 32
CUSHION
€ 3.00
33
9443936A00
ref: 33
CUSHION,COWLING,BODY
9443936A00
€ 3.00
34
0916006027
ref: 34
WASHER (6.5X20X1.2)
0916006027
€ 2.00
35
0831626068
ref: 35
NUT 6MM
0831626068
€ 2.00
36
0214206207
ref: 36
SCREW
0214206207
€ 2.00
37
9444836A01
ref: 37
MOLDING, SIDE
€ 32.00
38-1
9447036A7030H
ref: 38-1
E15, E17, E18, E30,
COVER, LOWER (WHITE)
€ 376.00
38-2
9447036A700CY
ref: 38-2
E15, E17, E18, E30,
COVER, LOWER (BLACK)
9447036A700CY
€ 784.50
39-1
6811134301019
ref: 39-1
FOR 30H
EMBLEM
6811134301019
€ 15.50
39-2
6811134301742
ref: 39-2
FOR 0CY
EMBLEM
€ 16.00
40-1
6818037A00A43
ref: 40-1
FOR 30H
TAPE SET, UNDER
€ 0.00
40-2
6818037A00A42
ref: 40-2
FOR 0CY
TAPE SET, UNDER
€ 0.00
41
9457036A00
ref: 41
BRACE,COWLING LWR COVER
9457036A00
€ 5.00
42
9461936A10
ref: 42
NUT
9461936A10
€ 6.50
43
0151706167
ref: 43
BOLT 6X16
0151706167
€ 1.50
44
0214205207
ref: 44
SCREW
0214205207
€ 2.00
45
0214205167
ref: 45
SCREW
0214205167
€ 1.50
46-1
9447036A7030H
ref: 46-1
OPT
COVER, LOWER (WHITE)
€ 376.00
46-2
9447036A700CY
ref: 46-2
OPT
COVER, LOWER (BLACK)
9447036A700CY
€ 784.50
47-1
6811134301019
ref: 47-1
FOR 30H, OPT
EMBLEM
6811134301019
€ 15.50
47-2
6811134301742
ref: 47-2
FOR 0CY, OPT
EMBLEM
€ 16.00
48-1
6818037A00A43
ref: 48-1
FOR 30H, OPT
TAPE SET, UNDER
€ 0.00
48-2
6818037A00A42
ref: 48-2
FOR 0CY, OPT
TAPE SET, UNDER
€ 0.00
49
9457036A00
ref: 49
OPT
BRACE,COWLING LWR COVER
9457036A00
€ 5.00
50
9461936A10
ref: 50
OPT
NUT
9461936A10
€ 6.50
51
0151706167
ref: 51
OPT
BOLT 6X16
0151706167
€ 1.50
52
0214205207
ref: 52
OPT
SCREW
0214205207
€ 2.00
53
0832221057
ref: 53
OPT
WASHER
0832221057
€ 2.50
54
0214205128
ref: 54
OPT
SCREW
0214205128
€ 1.50
55
0914805023
ref: 55
OPT
NUT
0914805023
€ 1.50
56-1
6831940C00
ref: 56-1
LABEL
6831940C00
€ 8.00
56-2
6831940C30
ref: 56-2
E4
LABEL, WARNING SAFETY
€ 8.50
