CLUTCH
RG125F 1994 (R) (E15 E18 E34)

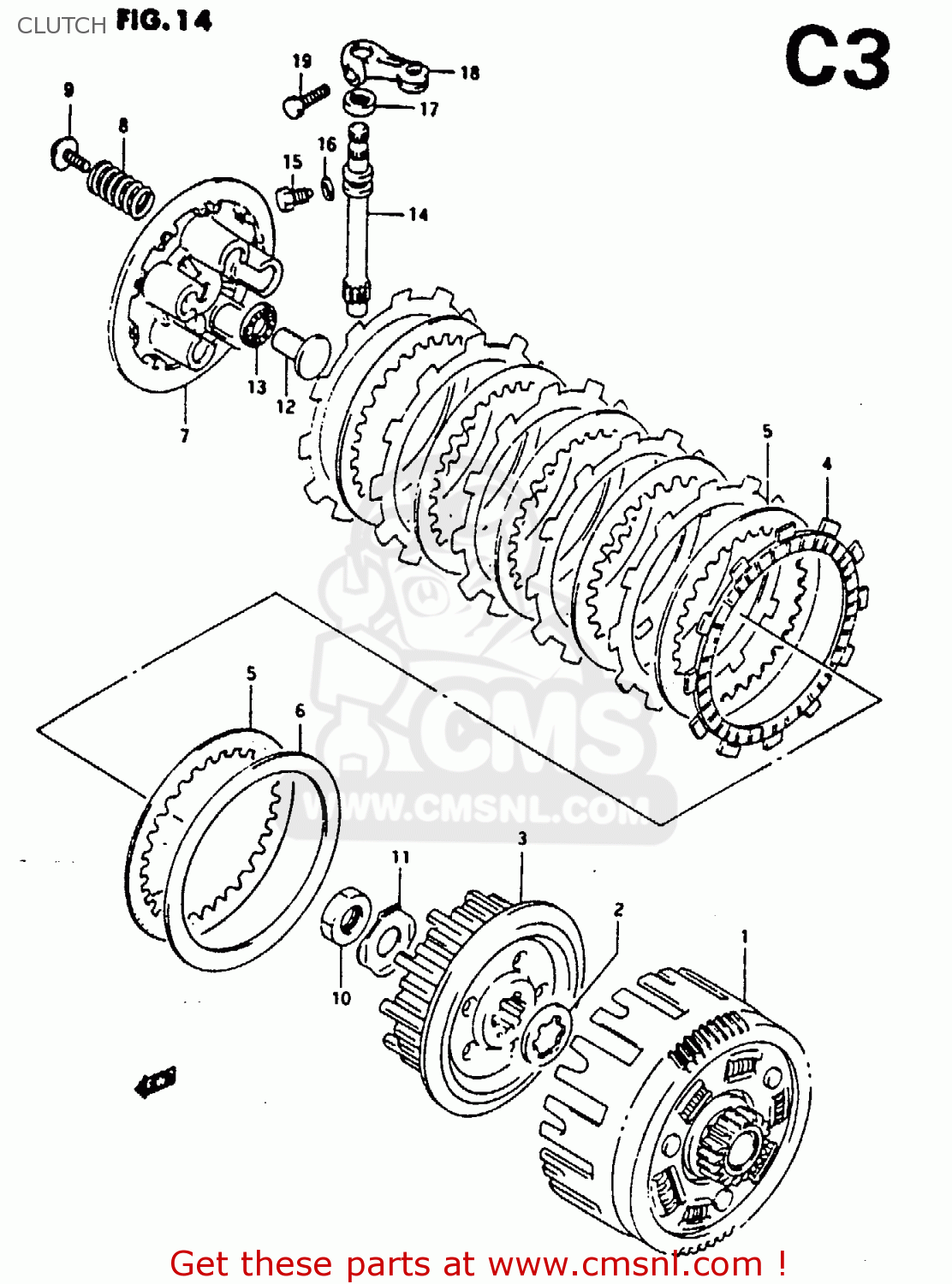

Clutch diagram RG125F 1994 (R) (E15 E18 E34)
CLUTCH RG125F 1994 (R) (E15 E18 E34)
×
prices are in EUR
ref
part #
description
quantity
1
2120008D01
ref: 1
GEAR ASSY,PRI DRIVEN
€ 211.50
2-1
0916720027
ref: 2-1
MODEL N/P
** SUPERSEEDED
€ 5.50
2-2
0916720029
ref: 2-2
MODEL R
WASHER
€ 5.50
3
2141003D00
ref: 3
HUB,CLUTCH SLEEVE
€ 44.00
4
2144113A01
ref: 4
PLATE,CLUTCH DRIVE(T:3.0) (NAS)
€ 8.50
5
2145136200
ref: 5
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
€ 5.00
6
2147108D00
ref: 6
SEAT,WAVE WASHER
€ 10.00
7
2146201B40
ref: 7
DISC,CLUTCH PRESSURE
€ 47.50
8
0944015024
ref: 8
SPRING
€ 5.50
9
0911605003
ref: 9
BOLT 5X16
€ 2.50
10
0914016027
ref: 10
NUT
€ 5.50
11
0916916006
ref: 11
WASHER
€ 19.50
12-1
2316502B00
ref: 12-1
MODEL N/P
RACK,CLUTCH RELEASE
€ 17.00
12-2
2316544B01
ref: 12-2
MODEL R
RACK,CLUTCH RELEASE
€ 17.00
13
0926310002
ref: 13
BEARING(10X22X2.8)
€ 8.50
14
2326120A01
ref: 14
PINION,CLUTCH RELEASE
€ 35.00
15
0913506009
ref: 15
BOLT(6X12)
€ 2.00
16-1
0832221067
ref: 16-1
MODEL N/P
WASHER
€ 2.00
16-2
0832201063
ref: 16-2
MODEL R
WASHER
€ 2.00
17
0928510004
ref: 17
SEAL,OIL(10X17X5)
€ 3.50
18
2327122A00
ref: 18
ARM,CLUTCH RELEASE
€ 47.00
19-1
0110706166
ref: 19-1
MODEL N/P
BOLT
€ 2.00
19-2
0150006163
ref: 19-2
MODEL R
BOLT
€ 2.00
