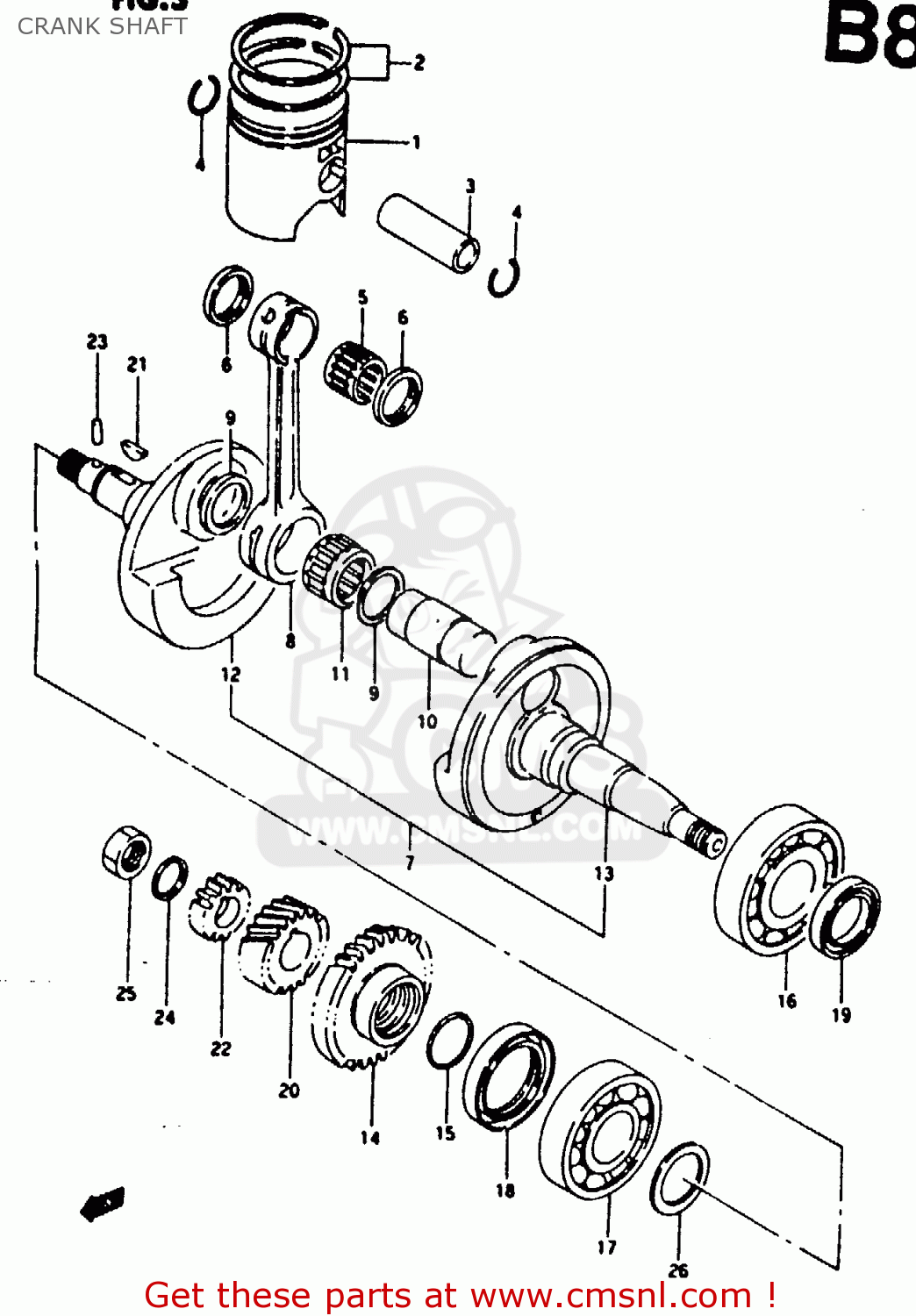

CRANK SHAFT

ref

part #

description

quantity

1

1211022D610F0
ref: 1

PISTON

€ 74.00

2

1214019D30
ref: 2

RING SET,PISTON

€ 48.50

3

1215122D00
ref: 3

PIN,PISTON

€ 12.00

4

0938116001
ref: 4

RING,SNAP 16MM

€ 1.50

5

0926316028
ref: 5

BEARING(16X20X17.8)

€ 13.00

6

0916916007
ref: 6

WASHER

€ 6.50

7

1220019D10
ref: 7

CRANKSHAFT ASSY

€ 390.00

8

1216112C060D0
ref: 8

ROD,CONNECTING

€ 100.00

9

0916022070
ref: 9

WASHER(22X27.5X1.5)

€ 9.50

10

1221119D000A0
ref: 10

PIN,CRANK

€ 27.00

11

09263220470C0
ref: 11

ROLLER BEARING (22X28X1

€ 64.00

12

1222103D01
ref: 12

CRANKSHAFT, RH

€ 121.00

13

1226119D10
ref: 13

CRANKSHAFT, LH

€ 0.00

14-1

1266103D01
ref: 14-1
MODEL N

GEAR, CRANK BALANCER DRIVE

€ 96.00

14-2

1266103D02
ref: 14-2
MODEL P/R

GEAR,CRANK BLANCER DRIVE

€ 96.00

15

0928024007
ref: 15

O RING(D:2.3,ID:24.4)

€ 2.00

16

0926228024
ref: 16

BEARING 28X68X18

€ 71.00

17

0926225108
ref: 17
@l09262-25112

BEARING(25X62X17)

€ 34.50

18

0928936005
ref: 18
@l09289-36004

SEAL,OIL(36X52X8)

€ 47.00

19

0928325094
ref: 19

SEAL,OIL(25X36X6)

€ 29.00

20

2111136A00
ref: 20

GEAR,PRIMARY DRIVE

€ 41.00

21

0834131059
ref: 21

KEY

€ 3.00

22

1745113A01
ref: 22

GEAR,WATER PUMP DRIVE

€ 23.50

23

0422103059
ref: 23

PIN

€ 1.50

24

0916414011
ref: 24

WASHER

€ 2.00

25

0914014027
ref: 25

NUT

€ 2.50

26-1

0917025341160
ref: 26-1

PASTILHA

€ 5.50

26-2

0917025341165
ref: 26-2

SHIM(25X34X1.65)

€ 0.00

26-3

0917025341170
ref: 26-3

SHIM (T:1.7)

€ 0.00

26-4

0917025341175
ref: 26-4

SHIM(25X34X1.75)

€ 0.00

26-5

0917025341180
ref: 26-5

SHIM (T:1.8)

€ 6.00

26-6

0917025341185
ref: 26-6

SHIM(25X34X1.85)

€ 5.50

26-7

0917025341190
ref: 26-7

SHIM,25X34X1.9

€ 5.50

26-8

0917025341195
ref: 26-8

SHIM(25X34X1.95)

€ 4.50

26-9

0917025341200
ref: 26-9

SHIM(25X34X2)

€ 5.00

26-10

0917025341205
ref: 26-10

SHIM(25X34X2.05)

€ 5.50

26-11

0917025341210
ref: 26-11

SHIM (T:2.1)

€ 6.00

26-12

0917025341215
ref: 26-12

SHIM(25X34X2.15)

€ 0.00

26-13

0917025341220
ref: 26-13

SHIM (T:2.2)

€ 5.50

26-14

0917025341225
ref: 26-14

SHIM (T:2.25)

€ 5.00

26-15

0917025341230
ref: 26-15

SHIM,25X34X2.3

€ 5.50
