FRAME

RG125F 1994 (R) (E15 E18 E34)

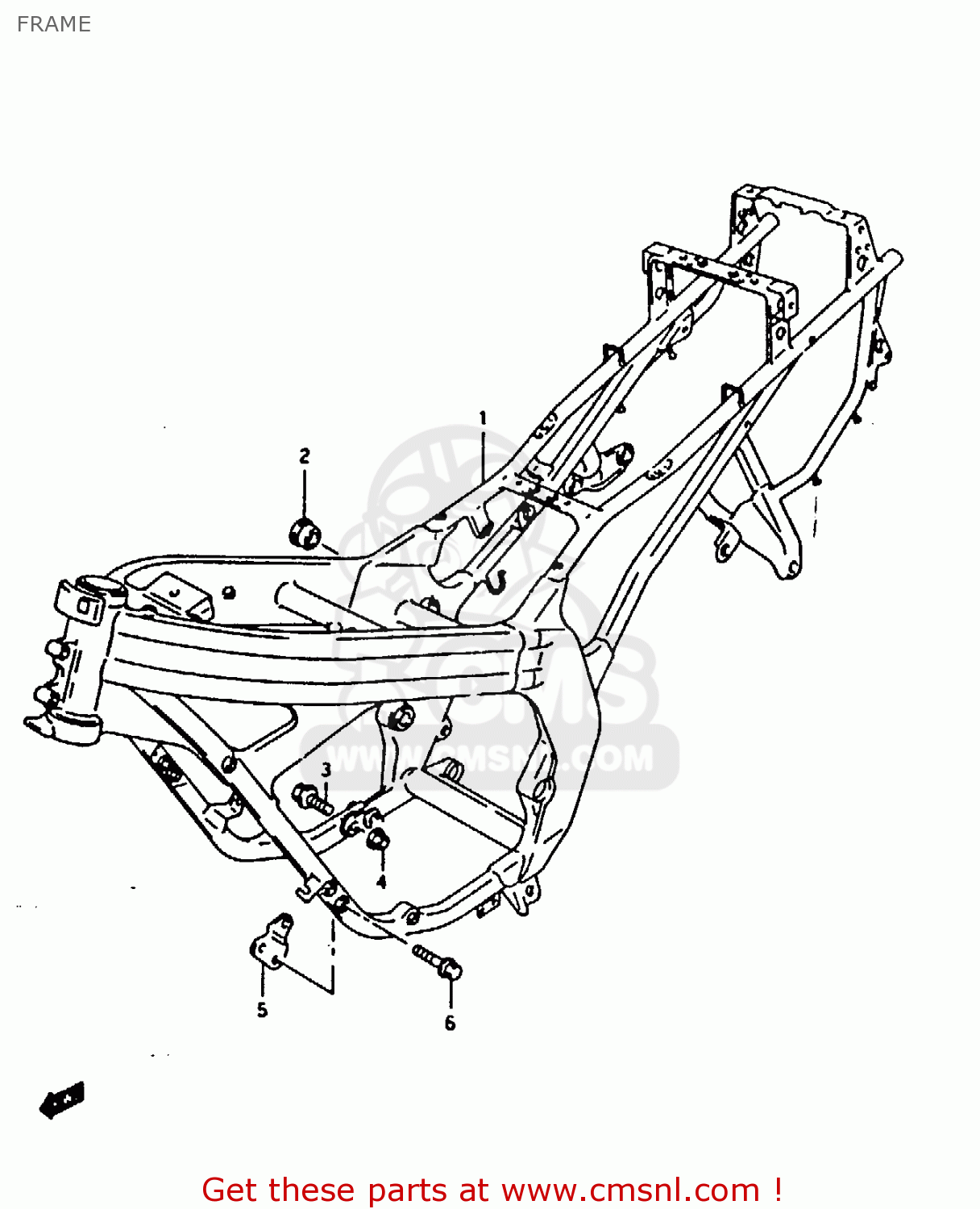

Frame diagram RG125F 1994 (R) (E15 E18 E34)

FRAME RG125F 1994 (R) (E15 E18 E34)

FRAME RG125F 1994 (R) (E15 E18 E34)

prices are in EUR

ref

part #

description

quantity

1-1

4110019D1013L
ref: 1-1

FRAME (SILVER)

€ 2,572.00

1-2

4110019D2013L
ref: 1-2
E2

FRAME (SILVER)

€ 2,572.00

1-3

4110019D3013L
ref: 1-3
E15, E18

FRAME (SILVER)

€ 2,572.00

2

0925025006
ref: 2

PLUG

€ 0.00

3-1

0712010308
ref: 3-1
MODEL N

BOLT, FRAME JOINT

€ 4.00

3-2

0151710308
ref: 3-2
MODEL P/R

BOLT

€ 3.50

4

0831931107
ref: 4

NUT

€ 3.00

5

4191019D0013L
ref: 5

PLATE,ENG MTG(SILVER)

€ 13.00

6

0151708508
ref: 6

BOLT

€ 3.50
