REAR MASTER CYLINDER
RG125F 1994 (R) (E15 E18 E34)

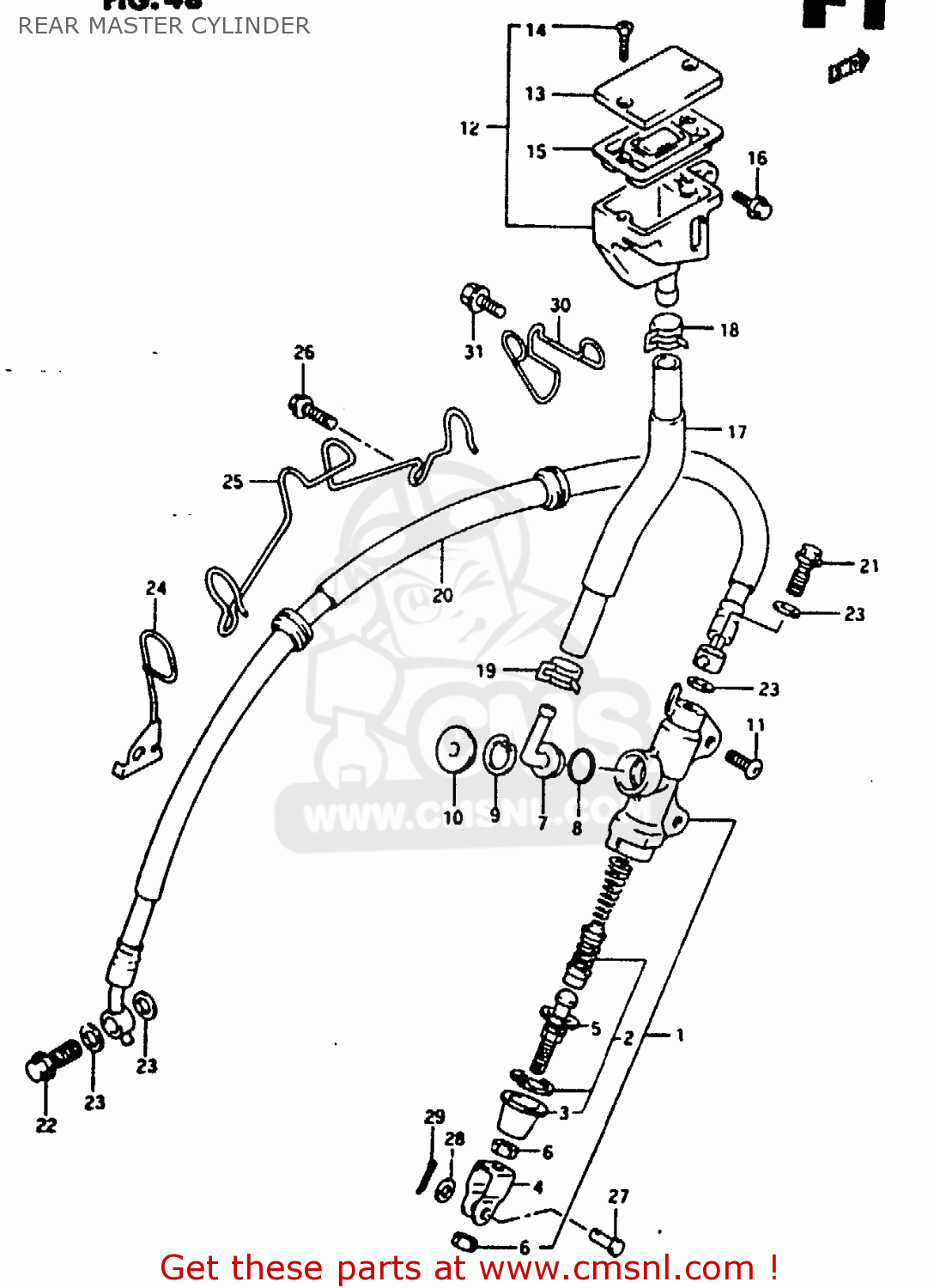

Rear master cylinder diagram RG125F 1994 (R) (E15 E18 E34)
REAR MASTER CYLINDER RG125F 1994 (R) (E15 E18 E34)
×
prices are in EUR
ref
part #
description
quantity
1
6960038D00
ref: 1
CYLINDER ASSY, REAR MASTER
€ 0.00
2
6960038821
ref: 2
PISTON/CUP SET
€ 33.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969227A30
ref: 4
YOKE
€ 12.50
5
6967022D00
ref: 5
ROD,PUSH
€ 23.50
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967200B20
ref: 7
CONNECTOR
€ 5.00
8
6968634200
ref: 8
O RING
€ 3.50
9
6867400B20
ref: 9
CIRCLIP
€ 2.50
10
5967317C00
ref: 10
COVER,DUST
€ 7.00
11
0910608110
ref: 11
BOLT(8X20)
€ 3.00
12-1
6974001D01
ref: 12-1
MODEL N @r69740-01D0
TANK ASSEMBLY,RESERVOIR
€ 58.00
12-2
6974001D02
ref: 12-2
MODEL P/R
TANK ASSY,RR RESERVOIR
€ 58.00
13-1
6966924A01
ref: 13-1
MODEL N
CAP
€ 12.00
13-2
5966905D00
ref: 13-2
MODEL P/R
CAP
€ 13.50
14
6968904A00
ref: 14
SCREW
€ 2.00
15
5966704700
ref: 15
DIAPHRAGM
€ 8.00
16-1
0151706128
ref: 16-1
MODEL N/P
BOLT
€ 2.50
16-2
0155006123
ref: 16-2
MODEL R
BOLT
€ 2.50
17
6973019D00
ref: 17
HOSE,RESERVOIR TANK
€ 0.00
18
0940113413
ref: 18
CLIP
€ 2.50
19-1
0940112402
ref: 19-1
MODEL N/P
CLAMP
€ 2.50
19-2
0940112404
ref: 19-2
MODEL R
CLIP
€ 2.50
20-1
6948019D01
ref: 20-1
MODEL N MODEL P/R E4
HOSE,RR BRAKE
€ 102.00
20-2
6948019D21
ref: 20-2
MODEL P/R E1, E2, E1
HOSE,RR BRAKE
€ 0.00
21-1
0936010033
ref: 21-1
MODEL N/P
BOLT 10X1.25X24
€ 5.00
21-2
0936010040
ref: 21-2
MODEL R
BOLT UNION
€ 5.00
22-1
0936010017
ref: 22-1
MODEL N/P
BOLT UNION
€ 6.50
22-2
0936010039
ref: 22-2
MODEL R
BOLT UNION
€ 6.50
23
0916110009
ref: 23
WASHER(10X15X1.5)
€ 2.00
24-1
6926019D00
ref: 24-1
MODEL N
GUIDE, BRAKE HOSE
€ 0.00
24-2
6926019D21
ref: 24-2
MODEL P/R
GUIDE, BRAKE HSOE
€ 0.00
25
6926619D00
ref: 25
CLAMP,RR BRAKE HOSE
€ 0.00
26-1
0197406205
ref: 26-1
MODEL N/P
BOLT
€ 2.50
26-2
0158006203
ref: 26-2
MODEL R
BOLT, REAR
€ 2.50
27
0920006037
ref: 27
PIN
€ 5.00
28-1
0832221067
ref: 28-1
MODEL N/P
WASHER
€ 2.00
28-2
0832201063
ref: 28-2
MODEL R
WASHER
€ 2.00
29
0411120158
ref: 29
PIN
€ 1.50
30
6973819D00
ref: 30
GUIDE, RESERVOIR TANK HOSE
€ 0.00
31-1
0151706167
ref: 31-1
MODEL N/P
BOLT 6X16
€ 1.50
31-2
0155006163
ref: 31-2
MODEL R
BOLT
€ 2.50
