STARTING MOTOR
RG125F 1994 (R) (E15 E18 E34)

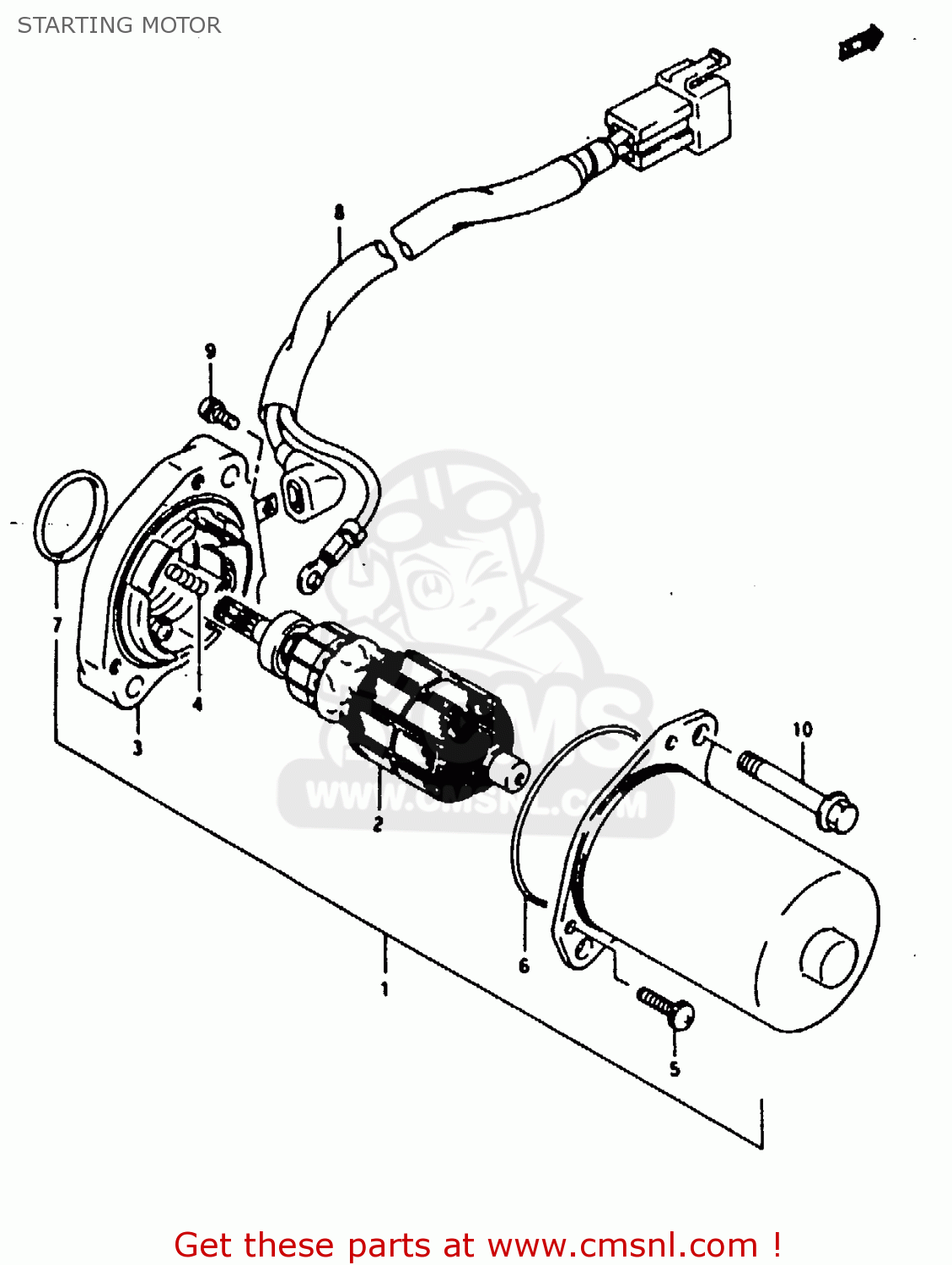

Starting motor diagram RG125F 1994 (R) (E15 E18 E34)
STARTING MOTOR RG125F 1994 (R) (E15 E18 E34)
×
prices are in EUR
ref
part #
description
quantity
1
3110319D00
ref: 1
MOTOR,STARTING
€ 342.50
2
3131119D00
ref: 2
ARMATURE
€ 0.00
3
3113019D00
ref: 3
HOLDER ASSY,BRUSH
€ 73.00
4
3113519D00
ref: 4
SPRING
€ 3.50
5
0211235166
ref: 5
SCREW
€ 2.50
6
3115719D00
ref: 6
O RING
€ 7.50
7
3115619D00
ref: 7
O RING
€ 7.00
8
3114219D00
ref: 8
LEAD WIRE, STARTING MOTOR
€ 0.00
9
3115203A00
ref: 9
SCREW
€ 1.50
10-1
0154706307
ref: 10-1
MODEL N/P
BOLT
€ 2.50
10-2
0154706303
ref: 10-2
MODEL R
BOLT,G/S SWITC
€ 3.00
