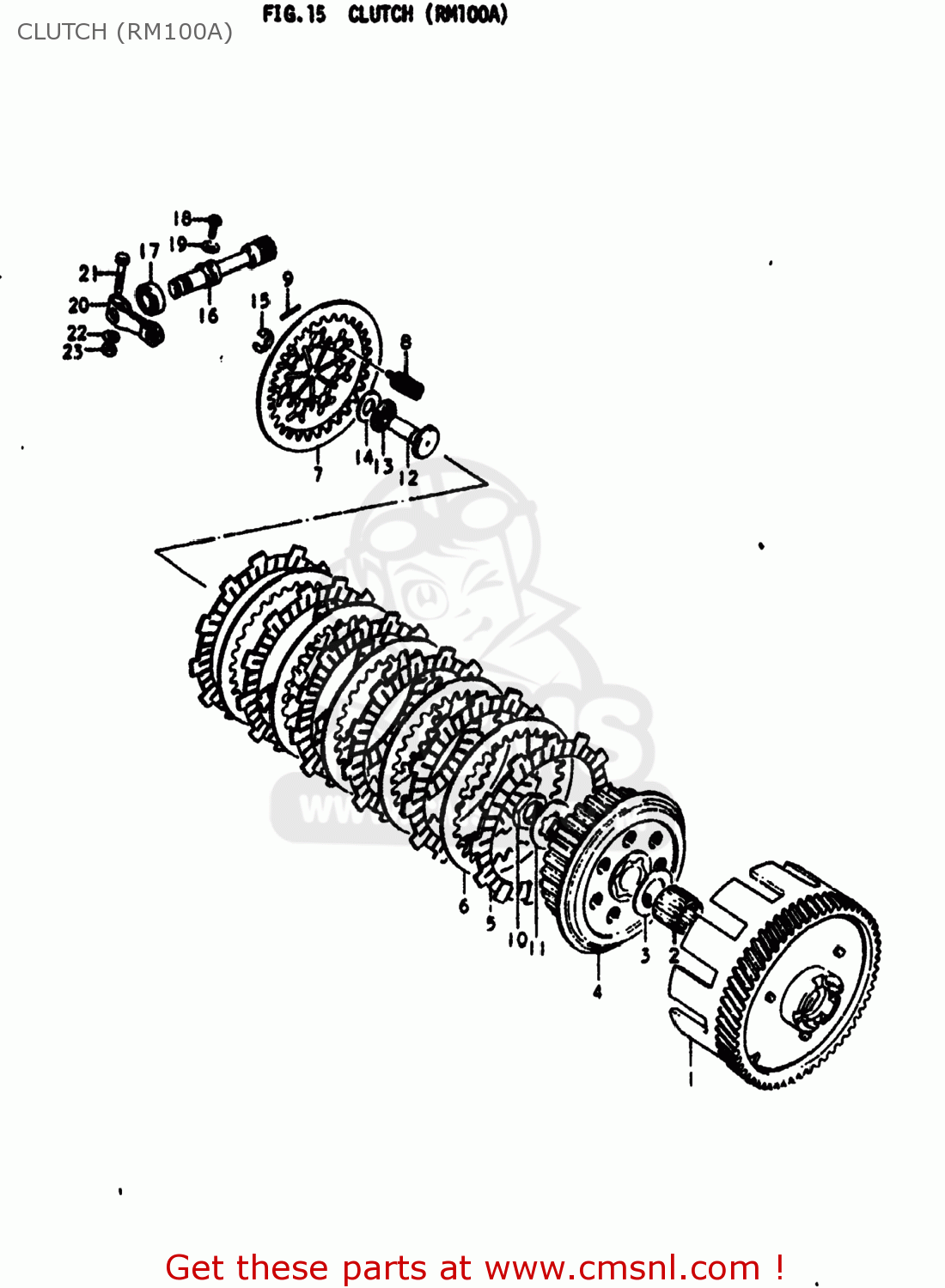

CLUTCH (RM100A)

ref

part #

description

quantity

1

2120041001
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 78.50

2

0926321005
ref: 2

BEARING

€ 10.00

3

0821117342
ref: 3

WASHER

€ 3.00

4

2141028700
ref: 4
21410-39131

HUB,CLUTCH SLEEVE

€ 54.00

5

2144128300
ref: 5
21441-13A01

PLATE,CLUTCH DRIVE

€ 8.50

6

2145128000
ref: 6
21451-19A00

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

7

2146028000
ref: 7

PLATE,CLUTCH PRESSURE

€ 21.50

8

0944312018
ref: 8

SPRING

€ 3.00

9

0926102001
ref: 9

PIN(2.5X19.8)

€ 1.50

10

0914016001
ref: 10

NUT

€ 4.50

11

0916717002
ref: 11

WASHER,LOCK

€ 2.00

12

2316528300
ref: 12
23165-46000

RACK,CLUTCH RELEASE

€ 20.00

13

0926310002
ref: 13

BEARING(10X22X2.8)

€ 8.50

14

0821210241
ref: 14

WASHER

€ 1.50

15

0833211088
ref: 15
08332-1108A

E RING 8MM

€ 2.00

16

2326128300
ref: 16

PINION,CLUTCH RELEASE

€ 28.50

17

0928512002
ref: 17
09285-12006

OIL SEAL

€ 7.00

18

0913506009
ref: 18

BOLT(6X12)

€ 2.00

19

0832221068
ref: 19
08322-01067

WASHER

€ 2.00

20

2327128300
ref: 20

ARM,CLUTCH RELEASE

€ 35.00

21

0111206258
ref: 21
01500-06257

BOLT

€ 2.00

22

0832221068
ref: 22
08322-01067

WASHER

€ 2.00

23

0831111068
ref: 23
08310-00067

NUT

€ 2.50
