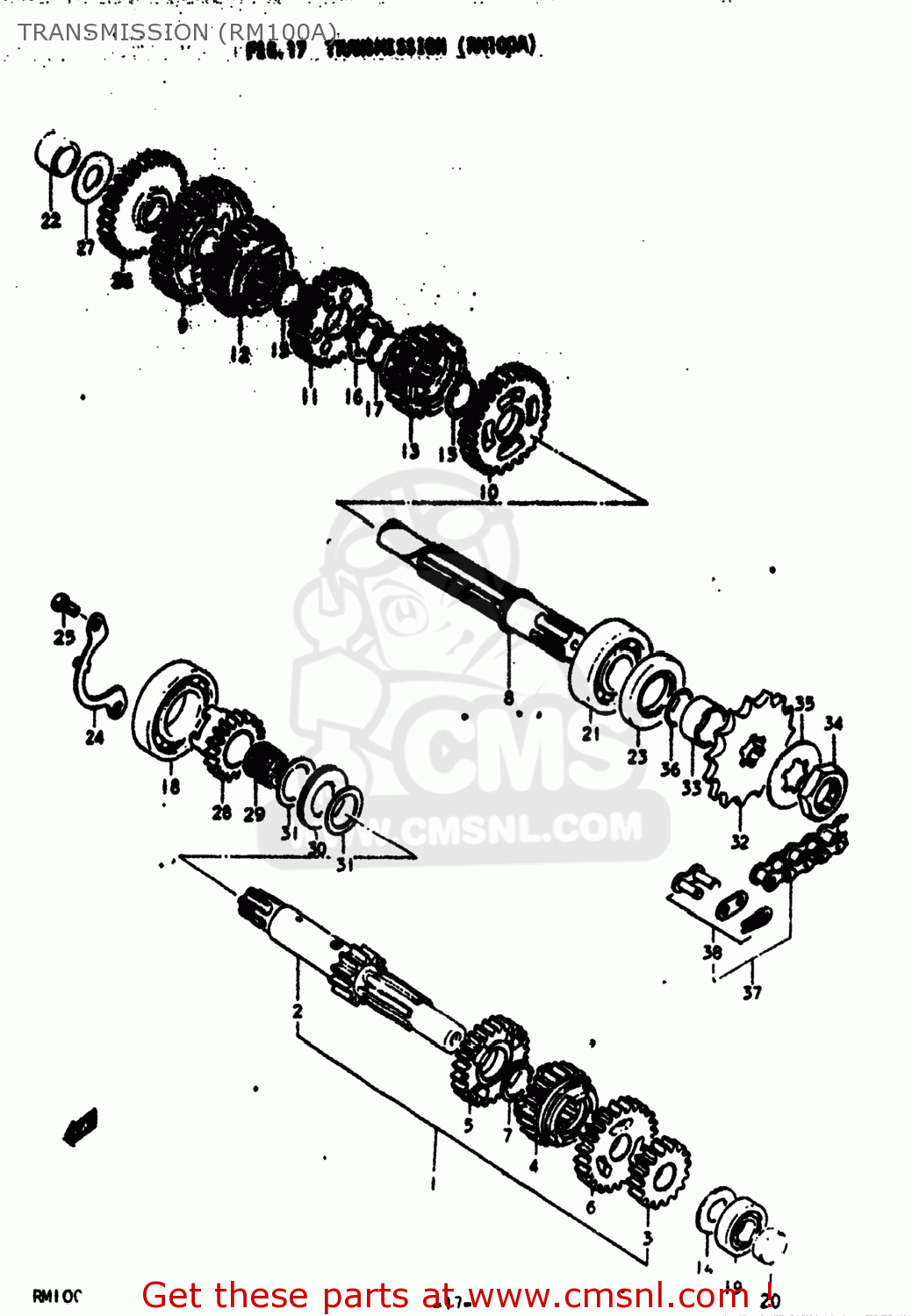

TRANSMISSION (RM100A)

ref

part #

description

quantity

1

2412028304
ref: 1

SHAFT,COUNTER

€ 109.00

2

2412128303
ref: 2

SHAFT,COUNTER

€ 28.50

3

2422128301
ref: 3

GEAR,SECOND DRIVE

€ 17.00

4

2423128300
ref: 4

GEAR,THIRD DRIVE

€ 28.50

5

2424128300
ref: 5

GEAR,FOURTH DRIVE

€ 23.00

6

2425128301
ref: 6

GEAR,FIFTH DRIVE

€ 27.50

7

0938020003
ref: 7
09380-20007

CIRCLIP

€ 3.00

8

2413128001
ref: 8

SHAFT,DRIVE

€ 105.00

9

2431028300
ref: 9

GEAR,FIRST DRIVEN

€ 29.00

10

2432128300
ref: 10

GEAR,SECOND DRIVEN

€ 22.00

11

2433128301
ref: 11

GEAR,THIRD DRIVEN

€ 31.00

12

2434128301
ref: 12

GEAR,FOURTH DRIVEN

€ 23.50

13

2435128300
ref: 13

GEAR,FIFTH DRIVEN

€ 17.00

14

0916015016
ref: 14
08211-15301

WASHER

€ 2.00

15

0938020003
ref: 15
09380-20007

CIRCLIP

€ 3.00

16

0916720007
ref: 16
09167-20022

WASHER

€ 3.00

17

0938020006
ref: 17

CIRCLIP

€ 1.50

18

0811060060
ref: 18
08113-60060

BEARING, RH

€ 17.00

19

0811360020
ref: 19

BEARING

€ 14.00

20

0924119001
ref: 20

PLUG

€ 6.00

21

0926220009
ref: 21
09262-20073

BEARING

€ 19.00

22

0930315004
ref: 22

BUSH

€ 5.50

23

0928325009
ref: 23
09283-25107

OIL SEAL (25X44X7)

€ 6.50

24

2474128001
ref: 24

RETAINER,CNTR SHAFT BEARING

€ 10.00

25

0211206128
ref: 25
02112-06127

SCREW 6X12

€ 2.00

26

2626028002
ref: 26
26260-28003

GEAR,KICK STARTER IDLE

€ 38.00

27

0916015016
ref: 27
08211-15301

WASHER

€ 2.00

28

2628125001
ref: 28

GEAR,KICK STARTER DRIVE

€ 31.00

29

0926319006
ref: 29

BEARING(19.2X23.2X19)

€ 29.50

30

0926321006
ref: 30

BEARING(21X32X2.85)

€ 11.50

31

0916021007
ref: 31

WASHER(21X30X0.8)

€ 3.50

32-1

2751136200
ref: 32-1
27511-13700

SPROCKET,ENGINE

€ 33.00

32-2

2751124901
ref: 32-2

SPROCKET,ENGINE(NT:13)

€ 18.00

33

0918020039
ref: 33

SPACER(20X25X12.5)

€ 9.50

34

0914020001
ref: 34

NUT

€ 3.50

35

0916720006
ref: 35
09167-20009

WASHER,LOCK

€ 3.00

36

0928020001
ref: 36

O RING(D:1,ID:19.5)

€ 2.00

37

2760041610
ref: 37
27600-40220

CHAIN ASSEMBLY,DRIVE

€ 0.00

38

2762028310
ref: 38

JOINT ASSEMBLY,CHAIN

€ 4.00
