HANDLE GRIP - LEVER
RM100 1977 (B) USA (E03)

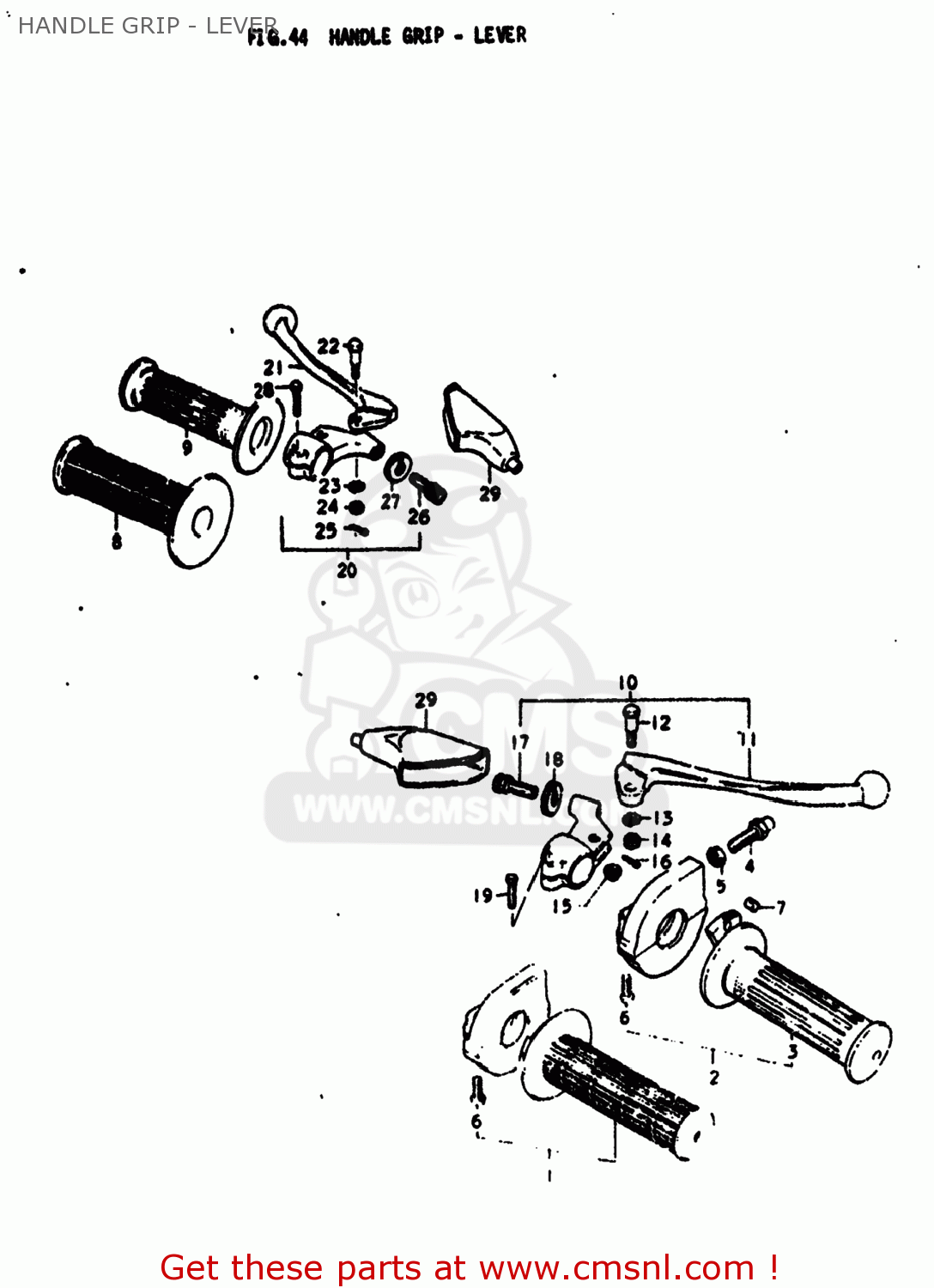

Handle grip - lever diagram RM100 1977 (B) USA (E03)
HANDLE GRIP - LEVER RM100 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5710040011
ref: 1
CASE ASSEMBLY,THROTTLE
€ 47.50
2
5710041601
ref: 2
GRIP ASSY,THROTTLE
€ 81.00
3
5711041110
ref: 3
57110-40200
GRIP,THROTTLE
€ 32.50
4
5711640011
ref: 4
NO PRODUCT DESCRIPTION AVAILABLE
€ 14.50
5
0831232088
ref: 5
08310-00087
NUT
€ 2.00
6
0211205168
ref: 6
02112-05167
SCREW
€ 2.50
7
5863107010
ref: 7
PIECE,THROTTLE END
€ 3.00
8
5721125701
ref: 8
57211-27C00
GRIP,LEFT
€ 11.00
9
5721141110
ref: 9
57211-27C00
GRIP,LEFT
€ 11.00
10-1
5730011012
ref: 10-1
57300-32500
LEVER ASSEMBLY,BRAKE
€ 47.00
10-2
5730028311
ref: 10-2
57300-32500
LEVER ASSEMBLY,BRAKE
€ 47.00
10-3
5730032500
ref: 10-3
LEVER ASSY,BRAKE
€ 47.00
11-1
5742011012
ref: 11-1
57420-29400
LEVER,BRAKE
€ 30.50
11-2
5742029400
ref: 11-2
LEVER,BRAKE
€ 30.50
12
5743111010
ref: 12
57431-11013
BOLT,LEVER
€ 6.00
13
0832121068
ref: 13
08321-01067
LOCK WASHER
€ 2.50
14
5743311010
ref: 14
NUT,LEVER FITTNG
€ 5.50
15
0831921068
ref: 15
08319-2106A
NUT 6MM
€ 2.00
16
0411116158
ref: 16
04111-1620A
COTTER PIN
€ 2.00
17-1
5744111010
ref: 17-1
ADJUSTER,CABLE
€ 8.00
17-2
5744126010
ref: 17-2
ADJUSTER,CABLE
€ 4.00
18
5744211010
ref: 18
NUT,CABLE ADJUSTER
€ 4.00
19
0211206206
ref: 19
02112-0620A
SCREW
€ 2.00
20-1
5750028311
ref: 20-1
57500-11012
LEVER ASSEMBLY
€ 37.50
20-2
5750029400
ref: 20-2
57500-29401
LEVER ASSEMBLY
€ 45.00
21-1
5762045010
ref: 21-1
LEVER,CLUTCH
€ 35.00
21-2
5762029400
ref: 21-2
57620-45010
LEVER,CLUTCH
€ 35.00
22
5743111010
ref: 22
57431-11013
BOLT,LEVER
€ 6.00
23
0832121068
ref: 23
08321-01067
LOCK WASHER
€ 2.50
24
5743311010
ref: 24
NUT,LEVER FITTNG
€ 5.50
25
0411116158
ref: 25
04111-1620A
COTTER PIN
€ 2.00
26
5744126010
ref: 26
ADJUSTER,CABLE
€ 4.00
27
5744211010
ref: 27
NUT,CABLE ADJUSTER
€ 4.00
28
0211206208
ref: 28
02112-06207
SCREW
€ 2.00
29
5734140001
ref: 29
57341-40002
COVER,CLUTCH LEVER
€ 7.50
