TRANSMISSION (RM100B
RM100 1977 (B) USA (E03)

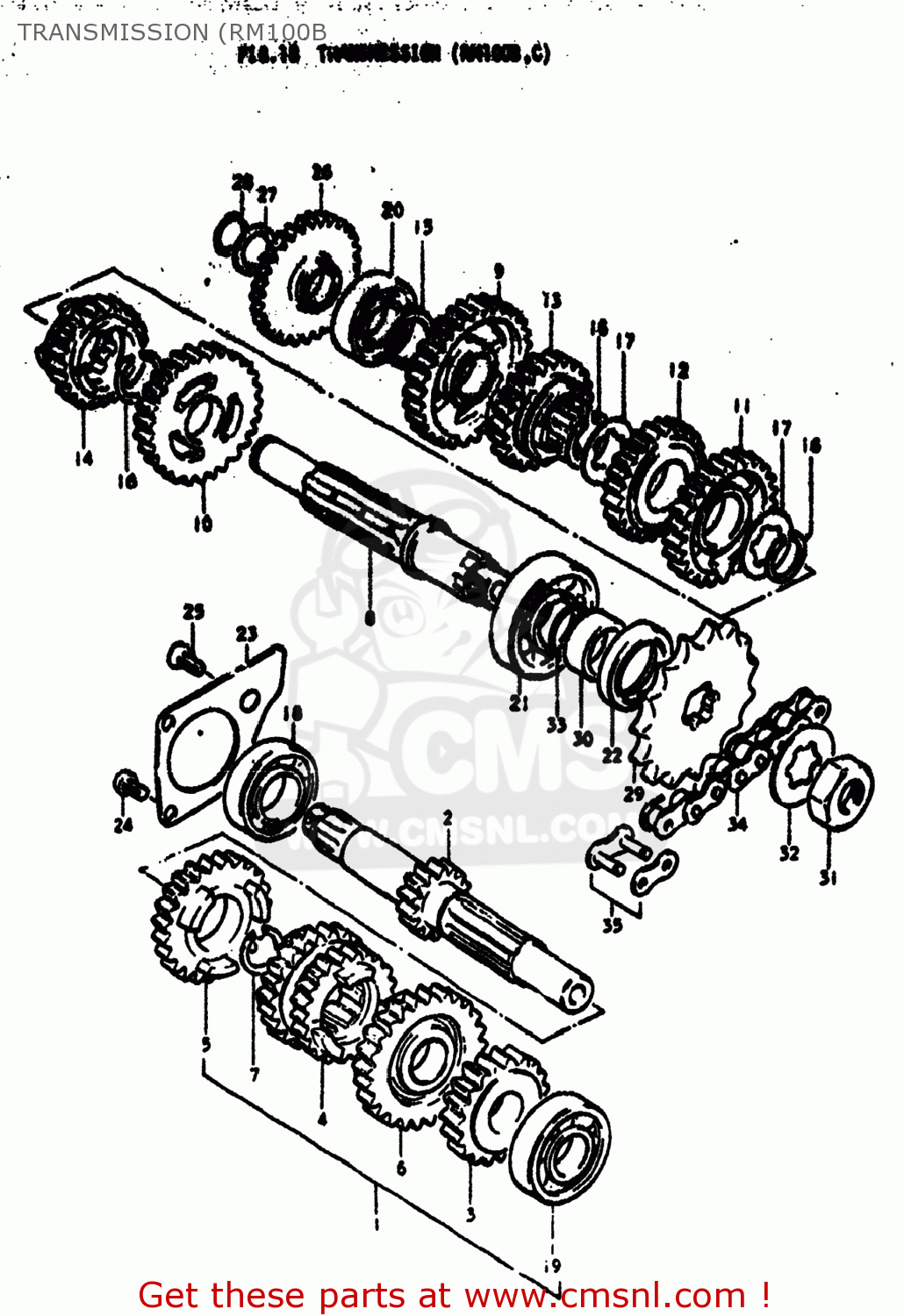

Transmission (rm100b diagram RM100 1977 (B) USA (E03)
TRANSMISSION (RM100B RM100 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412041300
ref: 1
24120-41301
SHAFT,COUNTER
€ 140.00
2
2412141300
ref: 2
SHAFT,COUNTER
€ 57.50
3
2422141300
ref: 3
24221-41304
GEAR,SECOND DRIVE
€ 29.00
4
2423141300
ref: 4
24231-14110
GEAR,THIRD DRIVE
€ 146.00
5
2425141300
ref: 5
24251-14101
GEAR,FIFTH DRIVE
€ 103.50
6
2426041300
ref: 6
24260-40210
GEAR,SIXTH DRIVE
€ 55.50
7
0938020007
ref: 7
CIRCLIP
€ 3.00
8
2413141300
ref: 8
24131-41303
SHAFT,DRIVE
€ 112.00
9
2431041300
ref: 9
GEAR,FIRST DRIVEN
€ 65.50
10
2432141300
ref: 10
24321-41310
GEAR,SECOND DRIVEN
€ 17.00
11
2433141300
ref: 11
24331-41302
GEAR,THIRD DRIVEN
€ 51.50
12-1
2434141301
ref: 12-1
24341-41303
GEAR,FOURTH DRIVEN
€ 66.00
12-1
2434141301
ref: 12-1
24341-41303
GEAR,FOURTH DRIVEN
€ 66.00
13
2435141300
ref: 13
24351-41301
GEAR,FIFTH DRIVEN
€ 68.50
14
2436141300
ref: 14
GEAR,SIXTH DRIVEN
€ 39.50
15
0821115241
ref: 15
09181-15166
WASHER,THRUST
€ 4.00
16
0938020007
ref: 16
CIRCLIP
€ 3.00
17
0916720011
ref: 17
WASHER,LOCK
€ 2.50
18
0811362040
ref: 18
09262-20069
Bearing
€ 28.00
19
0811360020
ref: 19
BEARING
€ 14.00
20
0811362020
ref: 20
08113-62027
BEARING, RH
€ 14.50
21
0926220043
ref: 21
BEARING(20X47X14)
€ 27.00
22
0928325035
ref: 22
SEAL,OIL(25X40X7)
€ 6.50
23
2474141300
ref: 23
PLATE,COUNTERSHAFT BEARING
€ 3.00
24
0211206128
ref: 24
02112-06127
SCREW 6X12
€ 2.00
25
0212206128
ref: 25
02122-06127
SCREW
€ 3.00
26
2626041300
ref: 26
GEAR,KICK STARTER IDLE
€ 38.00
27
0821115241
ref: 27
09181-15166
WASHER,THRUST
€ 4.00
28
0833111159
ref: 28
08331-3115A
CIRCLIP
€ 2.00
29-1
2751141300
ref: 29-1
27511-41310
SPROCKET,ENGINE
€ 19.00
29-2
2751141300
ref: 29-2
27511-41310
SPROCKET,ENGINE
€ 19.00
29-3
2751141710
ref: 29-3
SPROCKET,ENGINE
€ 23.50
30
0918020039
ref: 30
SPACER(20X25X12.5)
€ 9.50
31
0914016013
ref: 31
NUT
€ 14.00
32
0916720012
ref: 32
WASHER,LOCK
€ 2.50
33
0928020001
ref: 33
O RING(D:1,ID:19.5)
€ 2.00
34
2760041311
ref: 34
27600-40220
CHAIN,DRIVE #428TR-13
€ 0.00
35
2762028310
ref: 35
JOINT ASSEMBLY,CHAIN
€ 4.00
