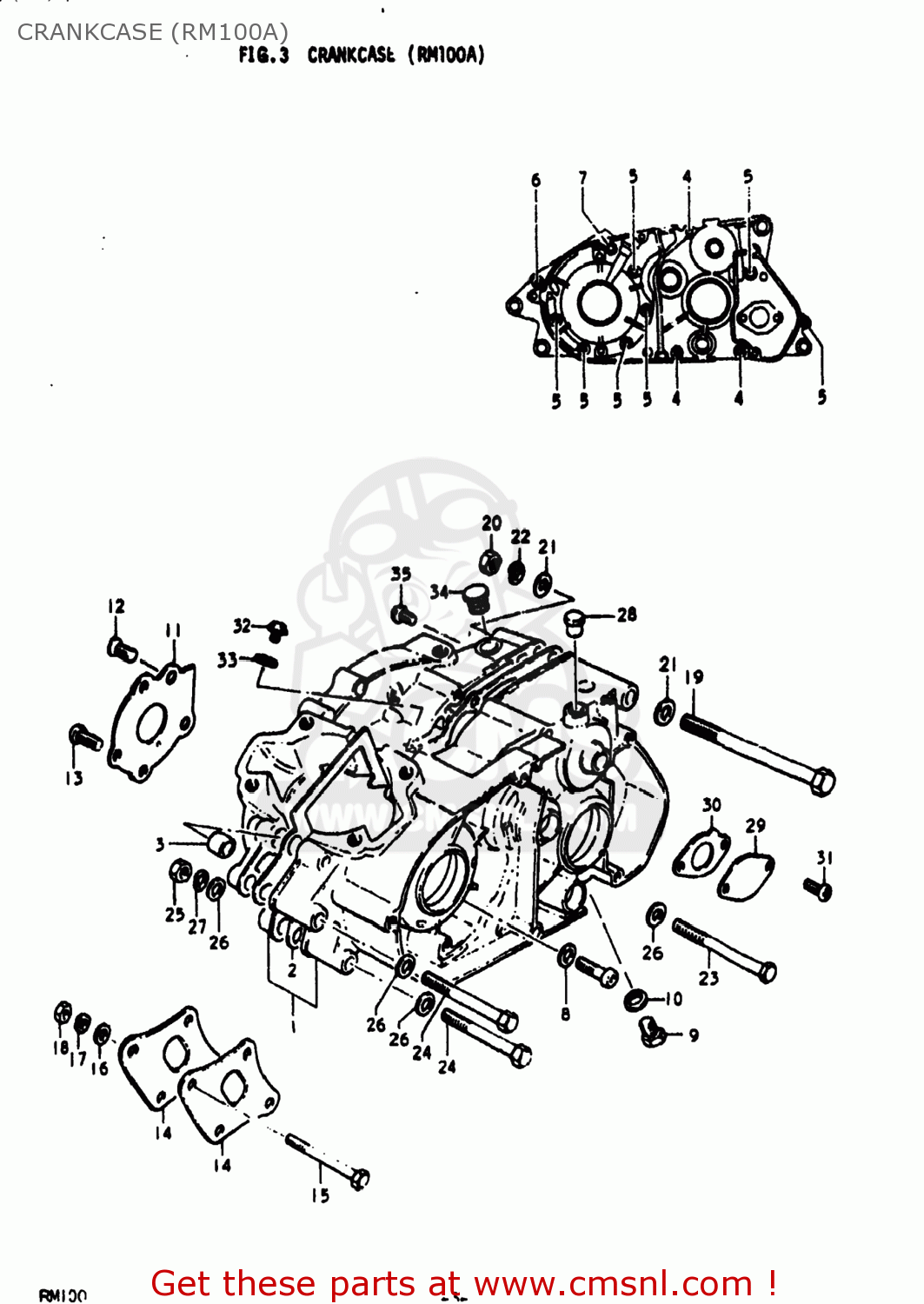

CRANKCASE (RM100A)

ref

part #

description

quantity

1

1130028872
ref: 1

CRANKCASE SET

€ 0.00

1

1130028872
ref: 1

CRANKCASE SET

€ 0.00

2

1148128000
ref: 2
11481-28001

GASKET,CRANKCASE (MCA)

€ 16.00

3

0920613001
ref: 3
04211-13189

PIN

€ 2.50

4

0211206657
ref: 4

SCREW

€ 2.00

5

0211206458
ref: 5
02112-06457

SCREW (6X45)

€ 2.00

6

0211206808
ref: 6
02112-06807

SCREW 6X80

€ 3.00

7

0211206608
ref: 7
02112-06607

SCREW 6X60

€ 2.50

8

0832211068
ref: 8
08322-0106B

WASHER 6MM

€ 2.00

9

0924710001
ref: 9

PLUG

€ 3.00

10

0916810002
ref: 10

GASKET(10X14X3.6) (NAS)

€ 2.00

11

1252128002
ref: 11

PLATE,OIL RESERVOIR

€ 4.00

12

0212206128
ref: 12
02122-06127

SCREW

€ 3.00

13

0211206168
ref: 13
02112-06167

SCREW

€ 2.50

14

4159128000
ref: 14

PLATE,ENGINE MOUNTING

€ 7.50

15

0111208708
ref: 15
01500-0870B

BOLT

€ 2.50

16

0832211088
ref: 16
08322-01087

WASHER

€ 2.00

17

0832111088
ref: 17

LOCK WASHER

€ 2.00

18

0831211088
ref: 18
08310-00087

NUT

€ 2.00

19

0910010051
ref: 19
09100-10274

BOLT

€ 6.50

20

0831212108
ref: 20
08310-00107

NUT

€ 2.50

21

0832211108
ref: 21
08322-01107

WASHER

€ 2.50

22

0832121108
ref: 22
08321-01107

LOCK WASHER

€ 2.00

23

0112208808
ref: 23
01500-0880B

HEXAGON BOLT 8X80

€ 3.50

24

0112208708
ref: 24
01500-0870B

BOLT

€ 2.50

25

0831211088
ref: 25
08310-00087

NUT

€ 2.00

26

0832211088
ref: 26
08322-01087

WASHER

€ 2.00

27

0832121088
ref: 27
08321-01087

LOCK WASHER

€ 2.00

28

0925010001
ref: 28

CAP(OD:14)

€ 1.50

28

0925010001
ref: 28

CAP(OD:14)

€ 1.50

29

1674516701
ref: 29

CAP,OIL PUMP DRIVE SHAFT

€ 10.00

30

1673103100
ref: 30
16731-03101

GASKET,OIL PUMP (MCA)

€ 2.50

31

0211105127
ref: 31
02112-05127

Screw

€ 2.50

32

0151106108
ref: 32
01550-06107

BOLT

€ 2.50

33

0916806004
ref: 33

GASKET(6.2X11X1).2 (NAS)

€ 1.50

34

0925014002
ref: 34

Plug

€ 4.50

35

0211206068
ref: 35
02112-06067

SCREW,6X6

€ 2.00
