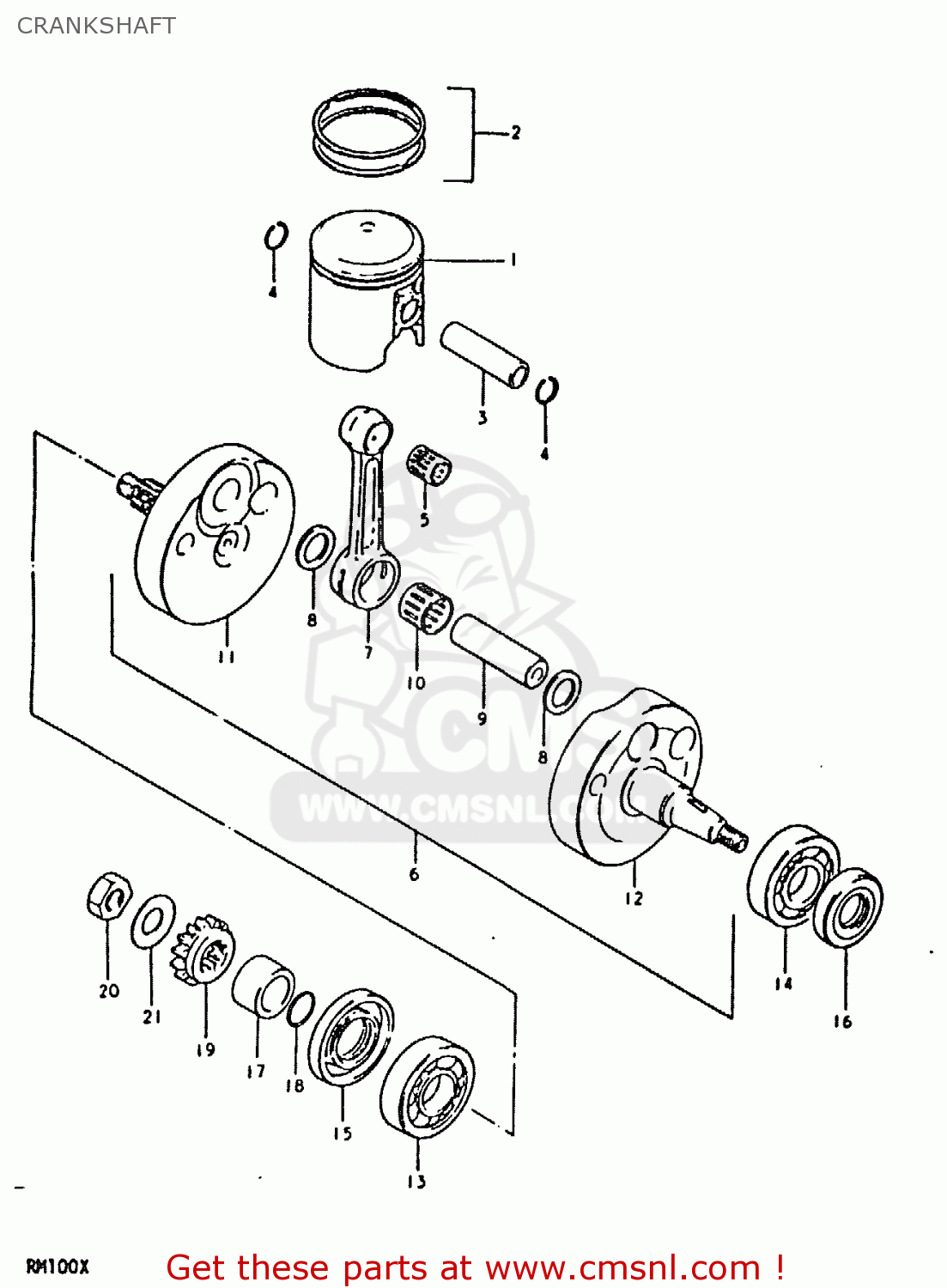

CRANKSHAFT

ref

part #

description

quantity

1-1

1211040200
ref: 1-1

PISTON (50.00MM)

€ 55.00

1-2

1211040200025
ref: 1-2

PISTON (50.25MM)

€ 44.00

1-3

1211040200050
ref: 1-3

PISTON (50.50MM)

€ 123.00

2-1

1214041610
ref: 2-1

RING SET,PISTON

€ 20.00

2-2

1214041610025
ref: 2-2

RING SET,PISTON

€ 31.00

2-3

1214041610050
ref: 2-3

RING SET,PISTON (OS:0.5)

€ 29.00

3

1215107000
ref: 3

PIN,PISTON 14MM

€ 10.00

4

0938114001
ref: 4

RING,SNAP 14MM

€ 1.50

5

0926314006
ref: 5

BEARING

€ 10.00

6-1

1220040210
ref: 6-1
MODEL N

CRANKSHAFT ASSEMBLY

€ 0.00

6-2

1220040230
ref: 6-2
MODEL T, X

CRANKSHAFT ASSEMBLY

€ 0.00

7

1216112002
ref: 7

CONNECTING ROD

€ 54.50

8

0916019001
ref: 8

WASHER(19X32X1)

€ 3.50

9

1221110301
ref: 9
TO 12211-10302

PIN,CRANK

€ 25.00

10

0926319009
ref: 10

BEARING(19X25X16)

€ 15.00

11-1

1222140210
ref: 11-1
MODEL N

CRANKSHAFT

€ 124.00

11-2

1222140230
ref: 11-2
MODEL T, X

CRANKSHAFT

€ 130.50

12-1

1226140210
ref: 12-1
MODEL N

CRANKSHAFT,LEFT

€ 124.00

12-2

1226140230
ref: 12-2
MODEL T, X

CRANKSHAFT,LEFT

€ 0.00

13

0926222012
ref: 13

BEARING

€ 63.50

14

0926225052
ref: 14

BEARING

€ 31.50

15

0928929002
ref: 15

SEAL,OIL(29X47X8)

€ 15.00

16

0928325037
ref: 16
TO 09283-25066

OIL SEAL

€ 7.00

17

0918020064
ref: 17

SPACER (20X29X20.5)

€ 11.50

18

0928020004
ref: 18

O RING(D:2.4,ID:19.8)

€ 3.00

19

2111141301
ref: 19

GEAR,PRIMARY DRIVE

€ 37.00

20

0914016002
ref: 20

NUT

€ 4.00

21

0916416002
ref: 21

WASHER

€ 3.00
