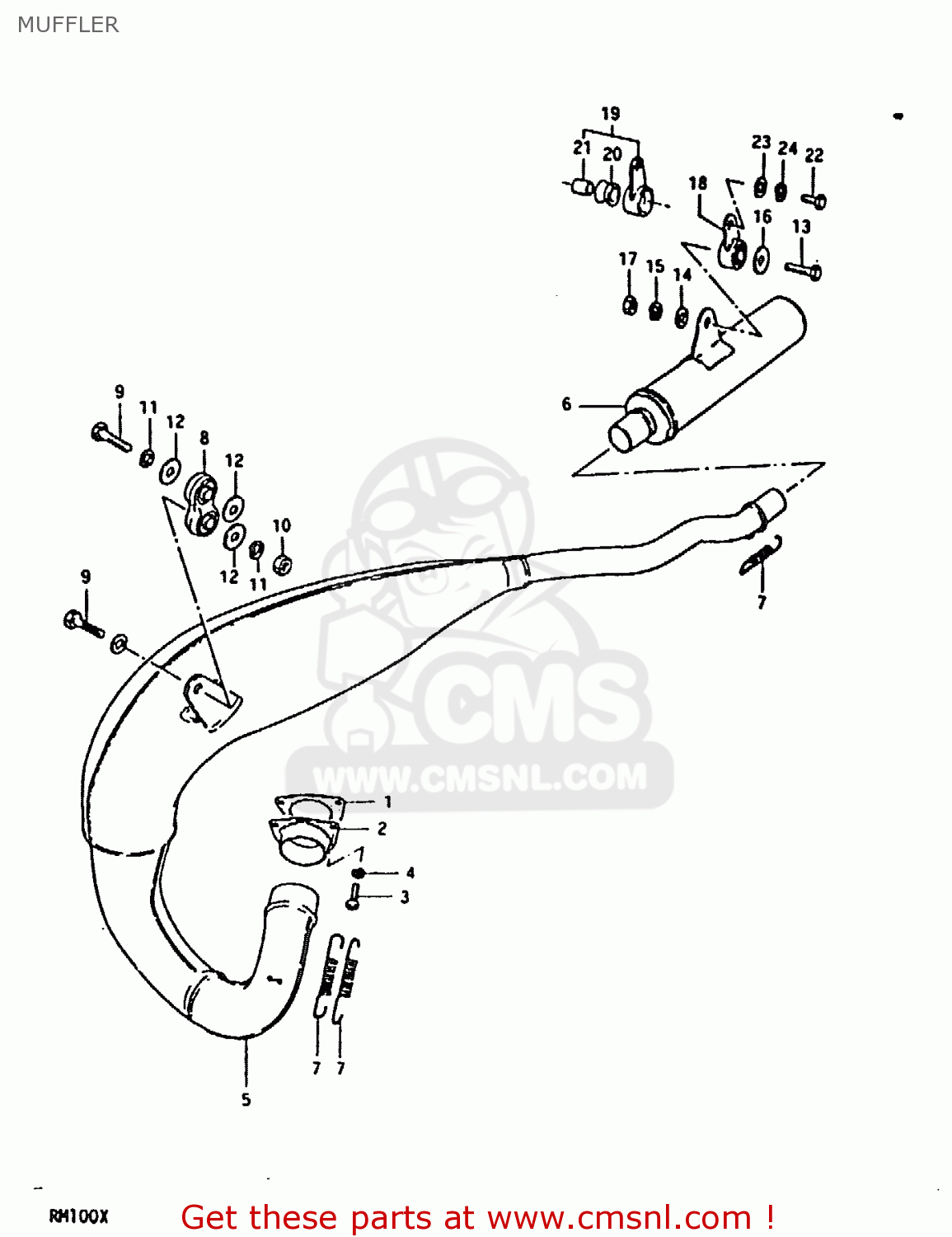

MUFFLER

ref

part #

description

quantity

1-1

1418140200
ref: 1-1
MODEL N, T

GASKET,EXHAUST PIPE (MCA)

€ 6.00

1-2

1418140250
ref: 1-2
MODEL X

GASKET,EXHAUST FLANGE ( (MCA)

€ 2.50

2-1

1417040200
ref: 2-1
MODEL N

FLANGE,EXHAUST PIPE

€ 10.50

2-2

1417041300
ref: 2-2
MODEL T

FLANGE,EXHAUST PIPE

€ 44.50

2-3

1417040250
ref: 2-3
MODEL X

FLANGE,EXHAUST PIPE

€ 0.00

3

0211206168
ref: 3

SCREW

€ 2.50

4

0832121068
ref: 4

LOCK WASHER

€ 2.50

5-1

1431040200
ref: 5-1
MODEL N

BODY,MUFFLER

€ 144.50

5-2

1431040210
ref: 5-2
MODEL T

BODY,MUFFLER

€ 290.00

5-3

1431040250
ref: 5-3
MODEL X

BODY,MUFFLER

€ 99.50

6-1

1433040200
ref: 6-1
MODEL N, T, TO 14330

BODY,MUFFLER

€ 228.50

6-2

1433040201
ref: 6-2
MODEL X

BODY,MUFFLER,SECOND

€ 228.50

7

0944311002
ref: 7

SPRING

€ 4.50

8

1477040000
ref: 8

DAMPER,MUFFLER

€ 139.00

9

0110708358
ref: 9

BOLT

€ 3.50

10

0831012088
ref: 10

NUT

€ 2.00

11

0832121088
ref: 11

LOCK WASHER

€ 2.00

12

0916008035
ref: 12

WASHER

€ 2.00

13

0110708308
ref: 13

BOLT (8X30)

€ 2.50

14

0832211088
ref: 14

WASHER

€ 2.00

15

0832121088
ref: 15

LOCK WASHER

€ 2.00

16

0916008002
ref: 16

WASHER (8.5X29X1.6)

€ 2.00

17

0831012088
ref: 17

NUT

€ 2.00

18

1477016440
ref: 18
MODEL N, T, TO 14700

DAMPER,MUFFLER SUPPORT

€ 28.00

19

1470040810
ref: 19
MODEL X

DAMPER,MUFFLER SUPPORT 2ND

€ 28.00

20

0932012026
ref: 20
MODEL X

CUSHION

€ 8.00

21

0918008032
ref: 21
MODEL X

SPACER (8.2X12X17)

€ 5.00

22

0110708168
ref: 22

BOLT

€ 2.00

23

0832211088
ref: 23

WASHER

€ 2.00

24

0832121088
ref: 24

LOCK WASHER

€ 2.00

all assemblies
