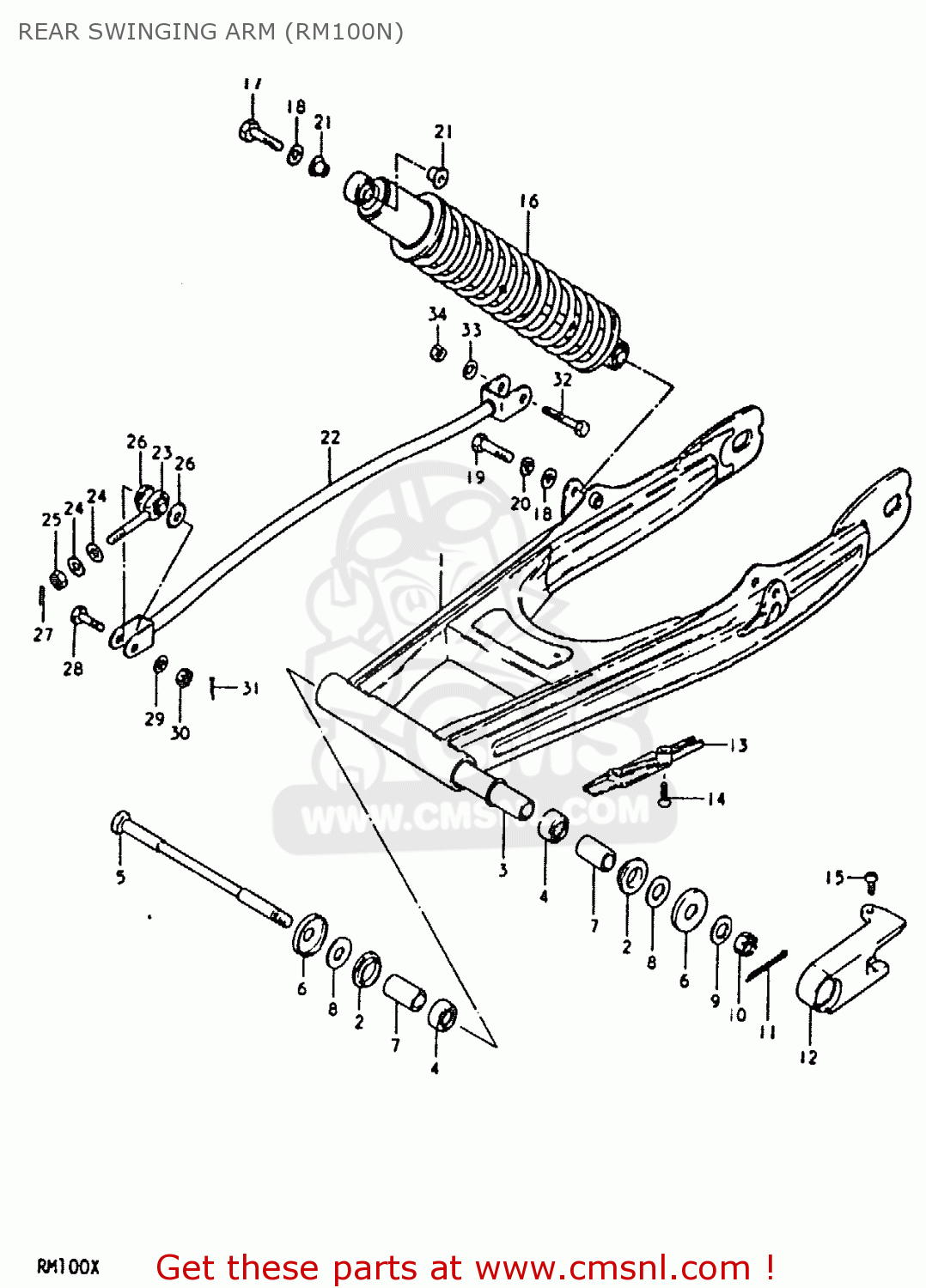

REAR SWINGING ARM (RM100N)

ref

part #

description

quantity

1

611004083208C
ref: 1
GOLD

SWING ARM ASSEMBLY,REAR

€ 0.00

2

6126140201
ref: 2

BUSH,RR SWINGINGARM PIVOT

€ 21.00

3

6128040200
ref: 3
TO 61280-40201

SPACER,SWING ARM,CENTER

€ 14.50

4

0926317011
ref: 4

ROLLER BEARING (17X24X2

€ 13.50

5

6121140201
ref: 5

SHAFT,RR SWINGINGARM PIVOT

€ 20.00

6

6126240200
ref: 6

COVER,REAR SWING ARM DUST

€ 5.00

7

6125140200
ref: 7

SPACER,RR SWGARM PIVOT

€ 9.50

8

0821112282
ref: 8

WASHER

€ 2.00

9

0832211128
ref: 9

WASHER

€ 2.00

10

0831441128
ref: 10

NUT, REAR AXLE

€ 2.50

11

0411120308
ref: 11

COTTER PIN

€ 1.00

12

6127340210
ref: 12

BUFFER,CHAIN TOUCH DEFLECTOR

€ 26.50

13

6127440210
ref: 13

BUFFER,CHAIN TOUCH DEFLECTOR

€ 13.50

14

0322104168
ref: 14

SCREW

€ 0.00

15

0214205107
ref: 15

SCREW

€ 2.50

16-1

6210040210
ref: 16-1

ABSORBER ASSEMBLY,REAR SHOCK

€ 0.00

16-2

6210040211
ref: 16-2
F. NO. 29518~

ABSORBER ASSEMBLY,REAR SHOCK

€ 0.00

17

0910008150
ref: 17

BOLT

€ 2.00

18

0832211088
ref: 18

WASHER

€ 2.00

19

0910010096
ref: 19

BOLT 10X40

€ 2.50

20

0832121108
ref: 20

LOCK WASHER

€ 2.00

21

6231640200
ref: 21

SPACER,RR SHK ABS INNER

€ 7.50

22

6431040200
ref: 22

TORQUE LINK,REAR

€ 49.00

23

6433740400
ref: 23
TO 64337-40401

BEARING

€ 4.50

24

0916408011
ref: 24

WASHER

€ 3.50

25

0831012088
ref: 25

NUT

€ 2.00

26

6433840400
ref: 26

DUST SEAL,TORQUE LINK FR BRG

€ 6.50

27

0411120158
ref: 27

PIN

€ 1.50

28

0910108003
ref: 28

BOLT 8X28

€ 2.00

29

0832211088
ref: 29

WASHER

€ 2.00

30

0831441088
ref: 30

NUT 8MM

€ 2.50

31

0411120208
ref: 31

PIN 20X20

€ 1.50

32

0110710408
ref: 32

BOLT 10X40

€ 3.00

33

0832211108
ref: 33

WASHER

€ 2.50

34

0831921108
ref: 34

NUT

€ 3.00
