STAND - FOOTREST
RM100 1980 (T)

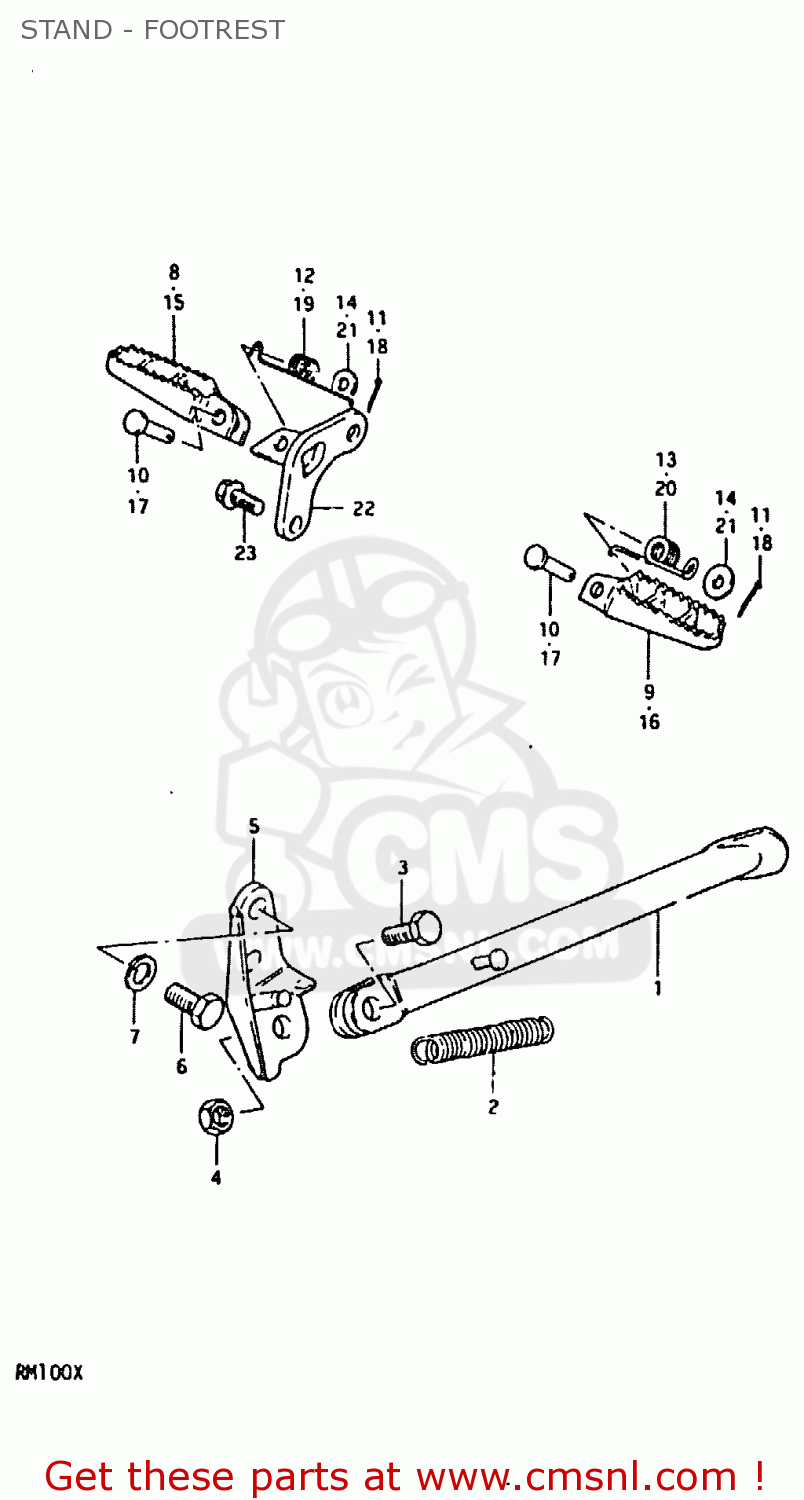

Stand - footrest diagram RM100 1980 (T)
STAND - FOOTREST RM100 1980 (T)
×
prices are in EUR
ref
part #
description
quantity
1
4231048100
ref: 1
STAND,SIDE
€ 34.00
2-1
0944314005
ref: 2-1
MODEL N
SPRING
€ 6.50
2-2
0944314017
ref: 2-2
MODEL T, X
SPRING
€ 6.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831022108
ref: 4
NUT
€ 2.50
5
4233040400
ref: 5
BRACKET,PROP STAND
€ 65.00
6
0910010118
ref: 6
BOLT(10X19)
€ 3.00
7
0832121108
ref: 7
LOCK WASHER
€ 2.00
8
4355040400
ref: 8
MODEL N
RUBBER,FOOTREST
€ 31.00
9
4356040400
ref: 9
MODEL N
FOOTREST
€ 24.50
10
0920008028
ref: 10
TO 09200-08033 WITH
PIN
€ 4.50
11
0411120208
ref: 11
MODEL N
PIN 20X20
€ 1.50
12
0944816017
ref: 12
MODEL N
SPRING
€ 6.00
13
0944816016
ref: 13
MODEL N
SPRING
€ 4.50
14
0832221088
ref: 14
MODEL N
WASHER
€ 2.00
15
4355140400
ref: 15
MODEL T, X
RUBBER,FRONT FOOTREST
€ 31.00
16
4356140400
ref: 16
MODEL T, X
FOOTREST
€ 24.50
17
0920008035
ref: 17
MODEL T, X
PIN
€ 6.50
18
0411120208
ref: 18
MODEL T, X
PIN 20X20
€ 1.50
19
0944814014
ref: 19
MODEL T, X
SPRING
€ 3.00
20
0944814015
ref: 20
MODEL T, X
SPRING
€ 3.00
21
0832221088
ref: 21
MODEL T, X
WASHER
€ 2.00
22-1
4351040200
ref: 22-1
MODEL N
HOLDER,FRONT FOOTREST,RIGHT
€ 3.00
22-2
4351040201
ref: 22-2
MODEL T, X
HOLDER,FRONT FOOTREST,RIGHT
€ 3.00
23
0910310100
ref: 23
BOLT(10X20)
€ 6.00
