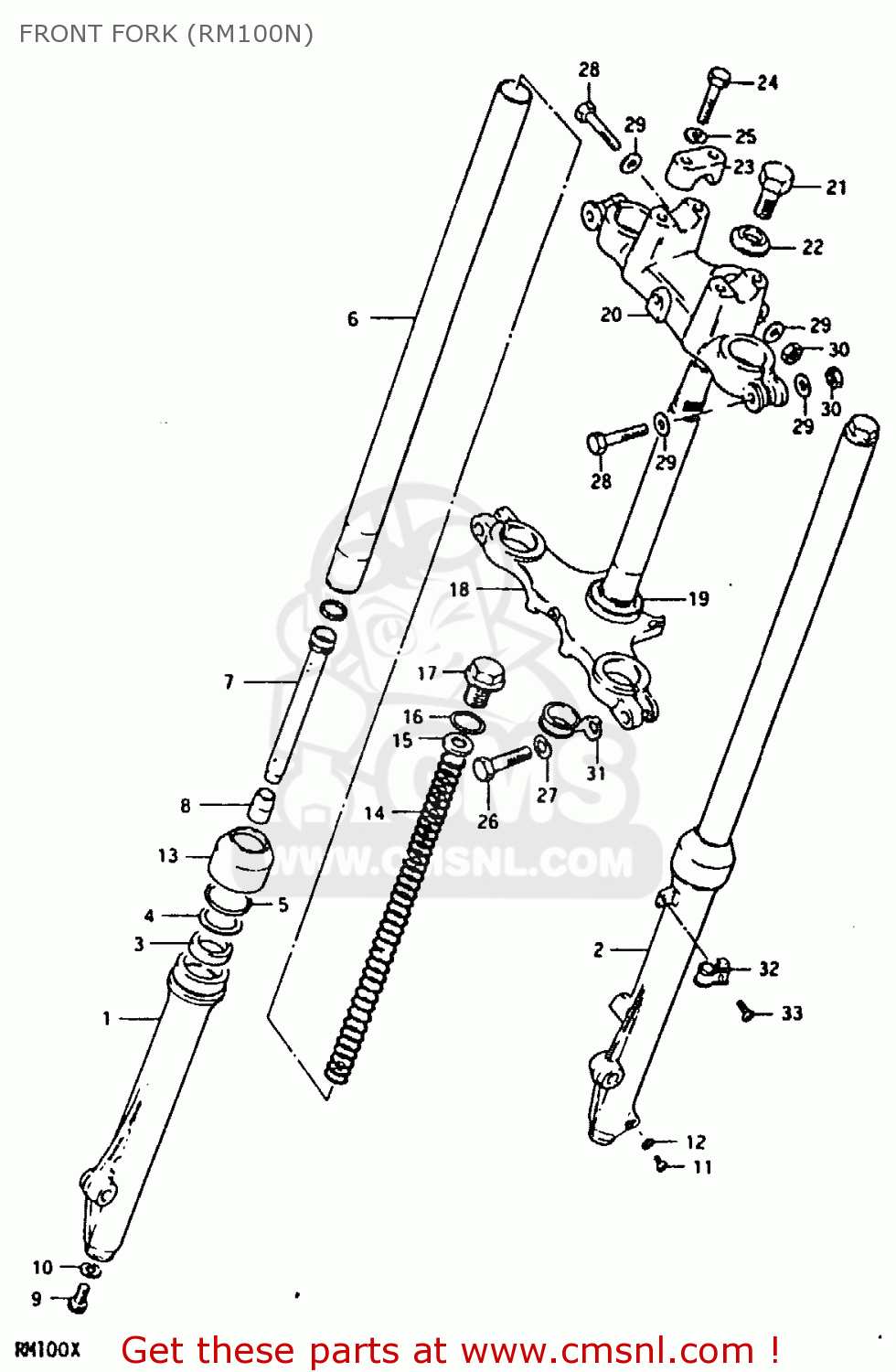

FRONT FORK (RM100N)

ref

part #

description

quantity

0

511004021008C
ref: 0
TO 51100-40211-08C

DAMPER SET

€ 0.00

1

5113040210
ref: 1

TUBE,OUTER,RIGHT

€ 0.00

2

5114040210
ref: 2

TUBE,OUTER,LEFT

€ 0.00

3

5115334010
ref: 3

SEAL,OIL

€ 15.00

4

5115832110
ref: 4

RING,FORK BACK UP

€ 3.00

5

5115632110
ref: 5

CIRCLIP,FORK OIL SEAL

€ 6.00

6

5111040210
ref: 6

TUBE,FORK,INNER

€ 0.00

7

5114640210
ref: 7

CYLINDER,FRONT FORK

€ 0.00

8

5119541210
ref: 8

PIECE,OIL LOCK

€ 12.00

9

5114716510
ref: 9

BOLT,FORK CYLINDER(10X25)

€ 3.50

10

5114841310
ref: 10

GASKET (NAS)

€ 2.50

11

0211104087
ref: 11

SCREW

€ 1.50

12

5118303010
ref: 12

GASKET,DRAIN,PLUG (NAS)

€ 3.00

13

5117341310
ref: 13

SEAL,DUST

€ 11.50

14

5117140210
ref: 14

SPRING

€ 0.00

15

5117238010
ref: 15

GUIDE,FRONT FORK SPRING C

€ 9.50

16

5111716310
ref: 16

O RING

€ 4.50

17

5135140210
ref: 17

CAP,FORK INNER TUBE

€ 14.00

18

514104021008C
ref: 18

STEM,STEERING

€ 0.00

19

5162140030
ref: 19

RACE,STEERING,OUTER,UPPER

€ 9.00

20

513114021008C
ref: 20

HEAD,STEERING STEM

€ 0.00

21

5135141320
ref: 21

BOLT

€ 8.50

22

5135641310
ref: 22

WASHER

€ 6.00

23

562114030008C
ref: 23

HOLDER,HANDLEBAR

€ 7.00

24

0110708358
ref: 24

BOLT

€ 3.50

25

0832121088
ref: 25

LOCK WASHER

€ 2.00

26

0110412408
ref: 26

BOLT

€ 3.00

27

0832121128
ref: 27

WASHER,LOCK 12

€ 2.50

28

0110708558
ref: 28

BOLT 8X55

€ 3.00

29

0832221088
ref: 29

WASHER

€ 2.00

30

0831022088
ref: 30

NUT 8MM

€ 2.00

31

5862140210
ref: 31

GUIDE,CABLE

€ 0.00

32

5145241600
ref: 32

CLIP,CABLE

€ 3.50

33

0211206168
ref: 33

SCREW

€ 2.50
