FRONT FORK (RM1258)
RM125 1977 (B) USA (E03)

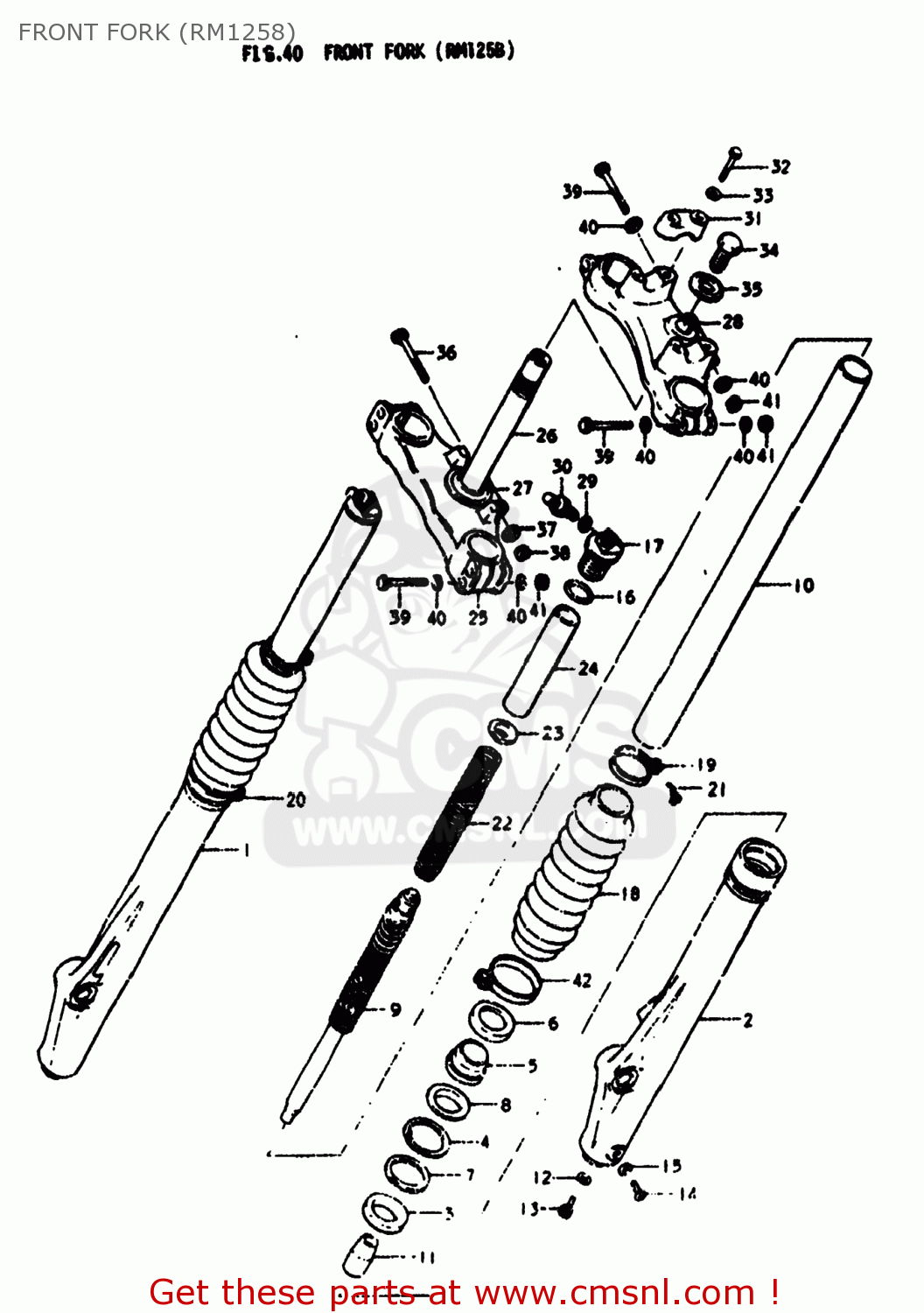

Front fork (rm1258) diagram RM125 1977 (B) USA (E03)
FRONT FORK (RM1258) RM125 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5110041312
ref: 0
DAMPER SET
€ 0.00
1
5113041312
ref: 1
TUBE,OUTER,RIGHT
€ 52.00
2
5114041312
ref: 2
TUBE,OUTER,LEFT
€ 54.50
3
5115341211
ref: 3
51153-16730
OIL SEAL,FRONT FORK
€ 28.50
4
5115641211
ref: 4
CIRCLIP,FORK OIL SEAL
€ 3.00
5
5117341211
ref: 5
DUST SEAL,FRONT FORK
€ 4.50
6
5114941211
ref: 6
51149-40500
GUIDE.FORK DUST
€ 7.50
7
5115841211
ref: 7
WASHER
€ 0.00
8
5114541211
ref: 8
LABEL
€ 2.00
9
5114641313
ref: 9
CYLINDER,FRONT FORK
€ 0.00
10
5111041312
ref: 10
TUBE,FORK,INNER
€ 76.50
11
5119541210
ref: 11
51195-49071
PIECE,OIL LOCK
€ 12.00
12
5114841310
ref: 12
GASKET (NAS)
€ 2.50
13
5114741310
ref: 13
BOLT
€ 2.50
14
0211104087
ref: 14
02112-04087
SCREW
€ 1.50
15
5118303010
ref: 15
GASKET,DRAIN,PLUG (NAS)
€ 3.00
16
5111716310
ref: 16
O RING
€ 4.50
17
5135141211
ref: 17
CAP
€ 41.00
18
5157141211
ref: 18
51571-38265-38K
BOOT
€ 38.00
19
5157541410
ref: 19
BAND,BOOT
€ 8.00
20
5157341410
ref: 20
BAND,FRONT FORK COVER
€ 10.00
21
0211104168
ref: 21
02112-0416A
SCREW
€ 1.00
22
5117141211
ref: 22
SPRING
€ 10.00
23
5117238010
ref: 23
GUIDE,FRONT FORK SPRING C
€ 9.50
24
5117641211
ref: 24
SPACER,FRONT FORK SPRING
€ 4.00
25
5141141110
ref: 25
STEM,STEERING
€ 65.50
26
5140141310
ref: 26
STEM,STEERING
€ 44.00
27
5162133001
ref: 27
RACE,STEERING OUTER LWR
€ 10.00
28
5131141211
ref: 28
HEAD,STEERING STEM
€ 49.00
29
5111741211
ref: 29
O RING
€ 6.50
30
5116941211
ref: 30
51293-49001
VALVE
€ 18.00
31
5621127100
ref: 31
HOLDER,HANDLEBAR
€ 12.50
32
0122108357
ref: 32
01204-08357
Bolt
€ 3.50
33
0832121088
ref: 33
08321-01087
LOCK WASHER
€ 2.00
34
5135141310
ref: 34
BOLT,STEERING STEM HEAD
€ 10.50
35
5135641310
ref: 35
WASHER
€ 6.00
36
0112210608
ref: 36
01500-1060A
BOLT
€ 3.50
37
0832121106
ref: 37
08321-0110A
LOCK WASHER
€ 3.00
38
0831212108
ref: 38
08310-00107
NUT
€ 2.50
39
0122208558
ref: 39
01204-08557
BOLT
€ 2.50
40
0832221088
ref: 40
08322-01087
WASHER
€ 2.00
41
0831211088
ref: 41
08310-00087
NUT
€ 2.00
42
5157241211
ref: 42
BAND,FRONT FORK COVER
€ 3.00
