FRONT FORK (RM125A)
RM125 1977 (B) USA (E03)

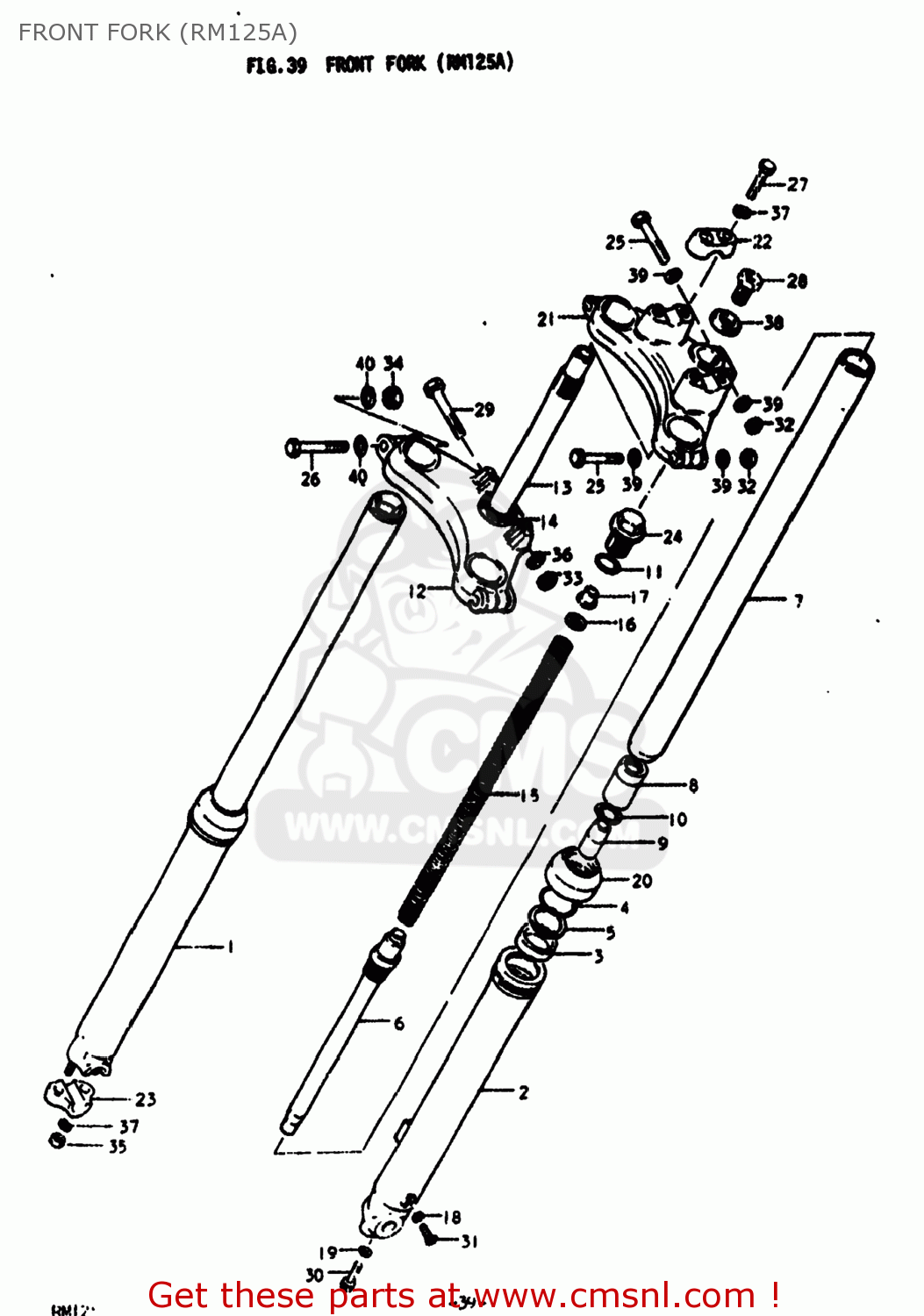

Front fork (rm125a) diagram RM125 1977 (B) USA (E03)
FRONT FORK (RM125A) RM125 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
5110041310
ref: 0-1
51100-41311
DAMPER SET
€ 276.50
0-2
5110041311
ref: 0-2
DAMPER SET
€ 276.50
1
5113041310
ref: 1
TUBE,OUTER,RIGHT
€ 54.50
2
5114041310
ref: 2
TUBE,OUTER,LEFT
€ 51.50
3
5115334010
ref: 3
SEAL,OIL
€ 15.00
4
5115632110
ref: 4
CIRCLIP,FORK OIL SEAL
€ 6.00
5
5115832110
ref: 5
RING,FORK BACK UP
€ 3.00
6-1
5114641310
ref: 6-1
CYLINDER,FRONT FORK
€ 18.50
6-2
5114641311
ref: 6-2
CYLINDER,FRONT FORK
€ 18.50
7
5111141310
ref: 7
TUBE,FORK,INNER
€ 60.00
8
5111238010
ref: 8
PISTON,FORK INNER TUBE
€ 0.00
9
5119538010
ref: 9
PIECE,OIL LOCK
€ 16.00
10
5111838010
ref: 10
RING
€ 0.00
11
5111716310
ref: 11
O RING
€ 4.50
12
5141141310
ref: 12
STEM,STEERING
€ 45.50
13
5140141310
ref: 13
STEM,STEERING
€ 44.00
14
5162133001
ref: 14
RACE,STEERING OUTER LWR
€ 10.00
15
5117141311
ref: 15
SPRING
€ 9.00
16
5135607010
ref: 16
WASHER,STEERING STEM HEAD
€ 5.00
17
5117641310
ref: 17
SPACER,SPRING
€ 2.50
18
5118303010
ref: 18
GASKET,DRAIN,PLUG (NAS)
€ 3.00
19
5114841310
ref: 19
GASKET (NAS)
€ 2.50
20
5117341310
ref: 20
SEAL,DUST
€ 11.50
21
5131141010
ref: 21
HEAD,STEERING STEM
€ 56.50
22
5621127100
ref: 22
HOLDER,HANDLEBAR
€ 12.50
23
5113216510
ref: 23
HOLDER,AXLE
€ 11.50
24
5135138010
ref: 24
51351-40210
BOLT,FORK
€ 14.00
25
0112208508
ref: 25
01500-08507
Bolt 8X50
€ 3.00
26
0112112558
ref: 26
01500-1255B
BOLT
€ 3.00
27
0122108357
ref: 27
01204-08357
Bolt
€ 3.50
28
5135141310
ref: 28
BOLT,STEERING STEM HEAD
€ 10.50
29
0112210608
ref: 29
01500-1060A
BOLT
€ 3.50
30
5114741310
ref: 30
BOLT
€ 2.50
31
0211104087
ref: 31
02112-04087
SCREW
€ 1.50
32
0831212088
ref: 32
08310-00087
NUT
€ 2.00
33
0831212108
ref: 33
08310-00107
NUT
€ 2.50
34
0831211128
ref: 34
09140-12039
NUT
€ 3.00
35
0914008005
ref: 35
09140-08017
NUT (8MM)
€ 1.50
36
0832121108
ref: 36
08321-01107
LOCK WASHER
€ 2.00
37
0832121088
ref: 37
08321-01087
LOCK WASHER
€ 2.00
38
5135641310
ref: 38
WASHER
€ 6.00
39
0832221088
ref: 39
08322-01087
WASHER
€ 2.00
40
0832211128
ref: 40
08322-01127
WASHER
€ 2.00
