TRANSMISSION (RM125M)
RM125 1977 (B) USA (E03)

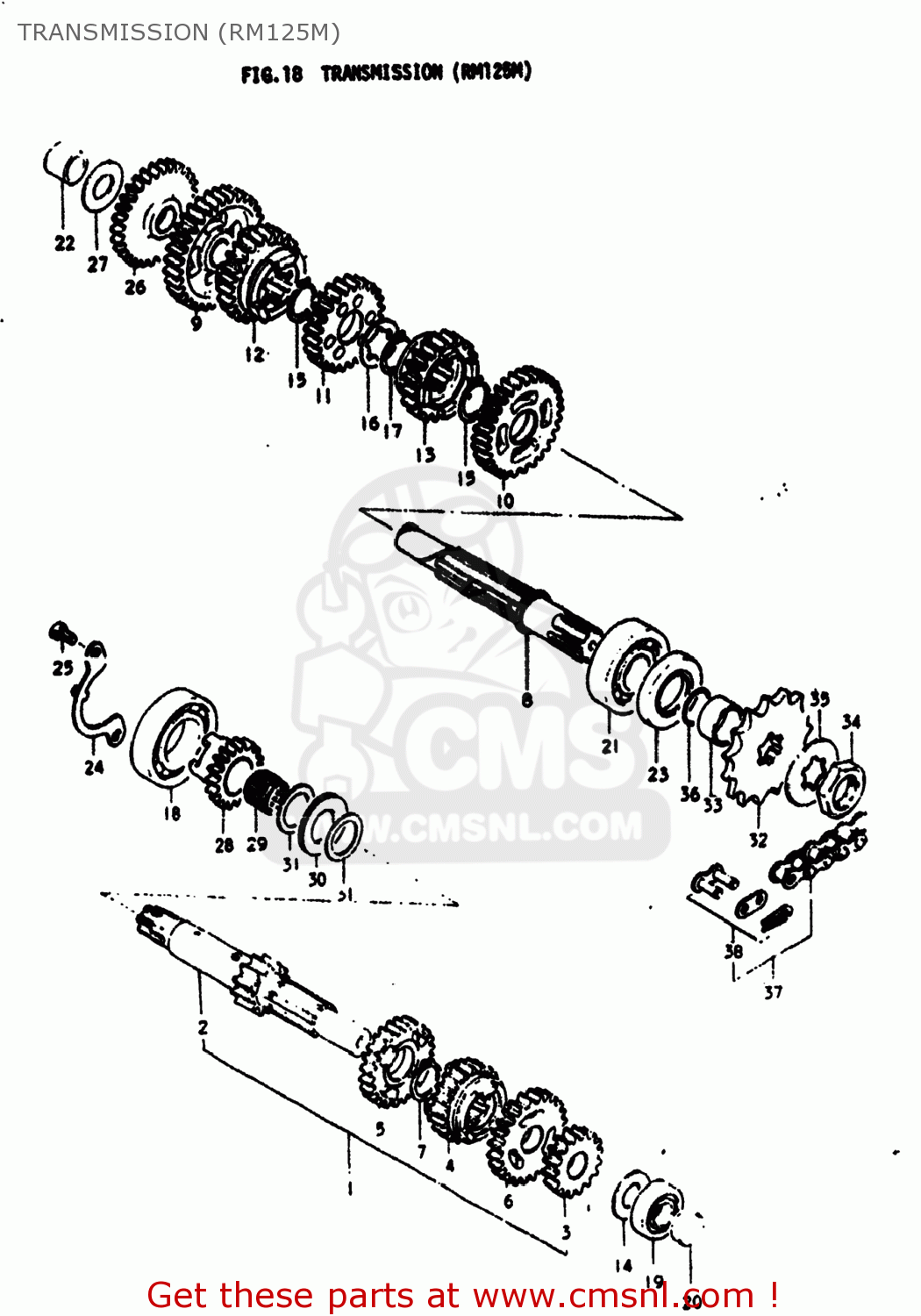

Transmission (rm125m) diagram RM125 1977 (B) USA (E03)
TRANSMISSION (RM125M) RM125 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412028304
ref: 1
SHAFT,COUNTER
€ 109.00
2
2412128303
ref: 2
SHAFT,COUNTER
€ 28.50
3
2422128301
ref: 3
GEAR,SECOND DRIVE
€ 17.00
4
2423128300
ref: 4
GEAR,THIRD DRIVE
€ 28.50
5
2424128300
ref: 5
GEAR,FOURTH DRIVE
€ 23.00
6
2425128301
ref: 6
GEAR,FIFTH DRIVE
€ 27.50
7
0938020003
ref: 7
09380-20007
CIRCLIP
€ 3.00
8
2413128001
ref: 8
SHAFT,DRIVE
€ 105.00
9
2431028300
ref: 9
GEAR,FIRST DRIVEN
€ 29.00
10
2432128300
ref: 10
GEAR,SECOND DRIVEN
€ 22.00
11
2433128301
ref: 11
GEAR,THIRD DRIVEN
€ 31.00
12-1
2434128300
ref: 12-1
GEAR,FOURTH DRIVEN
€ 32.50
12-2
2434128301
ref: 12-2
GEAR,FOURTH DRIVEN
€ 23.50
13
2435128300
ref: 13
GEAR,FIFTH DRIVEN
€ 17.00
14
0916015016
ref: 14
08211-15301
WASHER
€ 2.00
15
0938020003
ref: 15
09380-20007
CIRCLIP
€ 3.00
16
0916720007
ref: 16
09167-20022
WASHER
€ 3.00
17
0938020006
ref: 17
CIRCLIP
€ 1.50
18
0811060060
ref: 18
08113-60060
BEARING, RH
€ 17.00
19
0811360020
ref: 19
BEARING
€ 14.00
20
0924119001
ref: 20
PLUG
€ 6.00
21
0926220009
ref: 21
09262-20073
BEARING
€ 19.00
22
0930315004
ref: 22
BUSH
€ 5.50
23
0928325009
ref: 23
09283-25107
OIL SEAL (25X44X7)
€ 6.50
24
2474128001
ref: 24
RETAINER,CNTR SHAFT BEARING
€ 10.00
25
0211206108
ref: 25
02112-06107
SCREW
€ 1.50
26
2626028002
ref: 26
26260-28003
GEAR,KICK STARTER IDLE
€ 38.00
27
0916015016
ref: 27
08211-15301
WASHER
€ 2.00
28
2628125001
ref: 28
GEAR,KICK STARTER DRIVE
€ 31.00
29
0926319006
ref: 29
BEARING(19.2X23.2X19)
€ 29.50
30
0926321006
ref: 30
BEARING(21X32X2.85)
€ 11.50
31
0916021007
ref: 31
WASHER(21X30X0.8)
€ 3.50
32-1
2751136200
ref: 32-1
27511-13700
SPROCKET,ENGINE
€ 33.00
32-2
2751124901
ref: 32-2
SPROCKET,ENGINE(NT:13)
€ 18.00
33
0918020039
ref: 33
SPACER(20X25X12.5)
€ 9.50
34
0914020001
ref: 34
NUT
€ 3.50
35
0916720006
ref: 35
09167-20009
WASHER,LOCK
€ 3.00
36
0928020001
ref: 36
O RING(D:1,ID:19.5)
€ 2.00
37
2760028311
ref: 37
27600-40220
CHAIN ASSEMBLY,DRIVE
€ 0.00
38
2762028310
ref: 38
JOINT ASSEMBLY,CHAIN
€ 4.00
