REAR SWINGING ARM (RM125B)
RM125 1977 (B) USA (E03)

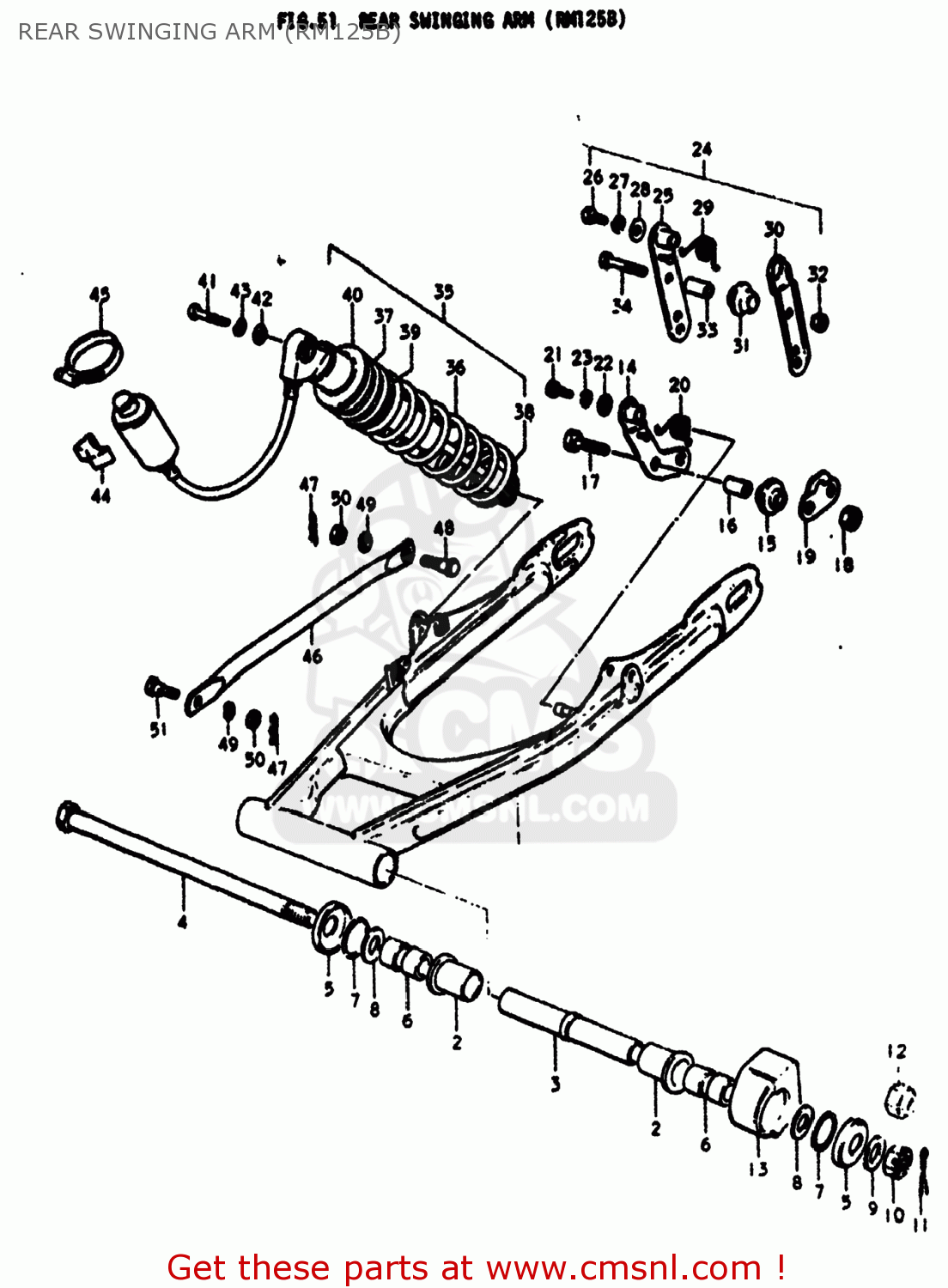

Rear swinging arm (rm125b) diagram RM125 1977 (B) USA (E03)
REAR SWINGING ARM (RM125B) RM125 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6110041860019
ref: 1
SWING ARM ASSEMBLY,REAR
€ 69.00
2
0930718002
ref: 2
BUSH
€ 10.50
3
6128028000
ref: 3
SPACER,SWING ARM,CENTER
€ 12.00
4-1
6121141300
ref: 4-1
61211-41301
SHAFT,REAR SWING ARM
€ 14.00
4-1
6121141300
ref: 4-1
61211-41301
SHAFT,REAR SWING ARM
€ 14.00
4-2
6121141301
ref: 4-2
SHAFT,REAR SWING ARM
€ 14.00
5
6126209200
ref: 5
COVER,SWGARM BUSH DUST SEAL
€ 2.50
6
6125128000
ref: 6
SPACER,RR SWGARM PIVOT
€ 8.50
7
0928024001
ref: 7
O RING(D:2,ID:24.5)
€ 2.00
8
0916012005
ref: 8
WASHER(12.5X24X2.3)
€ 3.00
9
0832211128
ref: 9
08322-01127
WASHER
€ 2.00
10
0831441128
ref: 10
08314-4012A
NUT, REAR AXLE
€ 2.50
11
0411130208
ref: 11
04111-3020A
PIN 30X20
€ 1.50
12
0831921128
ref: 12
08319-2112A
NUT 12MM
€ 4.00
13
6127341300
ref: 13
61273-41301
BUFFER,CHAIN TOUCH DEFLECTOR
€ 8.00
14
6135041401
ref: 14
61350-41301
TENSIONER,CHAIN
€ 25.00
14
6135041401
ref: 14
61350-41301
TENSIONER,CHAIN
€ 25.00
15
6134541100
ref: 15
RUBBER,CHAIN GUARD
€ 4.50
16
0918006067
ref: 16
SPACER(6.5X10.5X22.5)
€ 2.50
17
0111206358
ref: 17
09100-06033
BOLT
€ 2.50
18
0831921068
ref: 18
08319-2106A
NUT 6MM
€ 2.00
19
6135241401
ref: 19
PLATE,CHAIN TENSIONER
€ 4.00
20
0944825002
ref: 20
09448-25003
SPRING
€ 3.00
21
0111206128
ref: 21
01500-06127
BOLT
€ 2.00
22
0916006007
ref: 22
09160-06084
WASHER
€ 2.00
23
0832121068
ref: 23
08321-01067
LOCK WASHER
€ 2.50
24
6130041810
ref: 24
61300-41811
61300-41811
€ 0.00
25
6135041300
ref: 25
61350-41301
TENSIONER,CHAIN
€ 25.00
26
0110706128
ref: 26
01500-06127
BOLT
€ 2.00
27
0832121068
ref: 27
08321-01067
LOCK WASHER
€ 2.50
28
0916006007
ref: 28
09160-06084
WASHER
€ 2.00
29
0944825003
ref: 29
SPRING
€ 3.00
30
6135241300
ref: 30
61352-41301
PLATE,CHAIN TENSIONER
€ 8.00
31
6134541100
ref: 31
RUBBER,CHAIN GUARD
€ 4.50
32
0831921068
ref: 32
08319-2106A
NUT 6MM
€ 2.00
33
0918006067
ref: 33
SPACER(6.5X10.5X22.5)
€ 2.50
34
0110706358
ref: 34
09100-06033
BOLT
€ 2.50
35
6210041311
ref: 35
62100-41312
ABSORBER ASSEMBLY,REAR SHOCK
€ 150.00
36
6221141311
ref: 36
SPRING
€ 0.00
37
6221241311
ref: 37
SPRING
€ 9.50
38
6222540600
ref: 38
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.50
39
6222141650
ref: 39
SPRING
€ 4.50
40
6219141650
ref: 40
GUIDE,SPRING
€ 4.00
41
0910010096
ref: 41
09100-10184
BOLT 10X40
€ 2.50
42
0832211108
ref: 42
08322-01107
WASHER
€ 2.50
43
0832121108
ref: 43
08321-01107
LOCK WASHER
€ 2.00
44
6233141630
ref: 44
CUSHION,RR SHOCK ABSORBER
€ 6.00
45
6233241631
ref: 45
CLAMP
€ 10.00
46
6431128000
ref: 46
64311-28000-019
TORQUE LINK,REAR
€ 10.00
47
0938510001
ref: 47
09385-10005
CLIP
€ 1.50
48
0911108013
ref: 48
BOLT(8X26.5)
€ 3.00
49
0832121088
ref: 49
08321-01087
LOCK WASHER
€ 2.00
50
0914008008
ref: 50
NUT
€ 1.50
51
0911108015
ref: 51
BOLT(8X22)
€ 3.00
