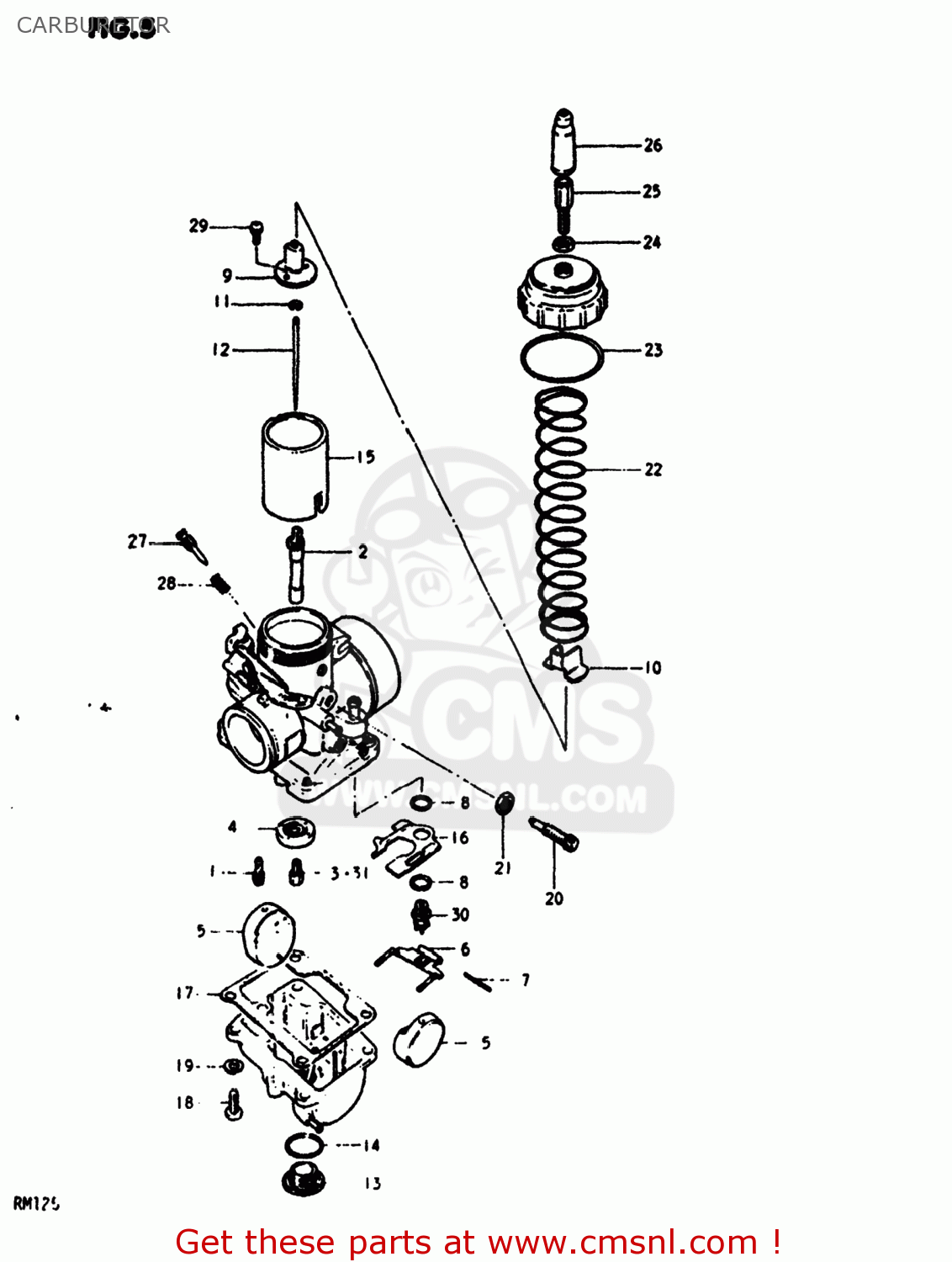

CARBURETOR

ref

part #

description

quantity

0-1

1320040200
ref: 0-1

CARBURETOR ASSEMBLY

€ 0.00

0-2

1320040221
ref: 0-2

CARBURETOR ASSEMBLY

€ 0.00

1-1

0949225003
ref: 1-1
09492-25005

JET

€ 6.50

1-2

0949230003
ref: 1-2
09492-30006

JET

€ 8.50

2

0949400249
ref: 2

JET,NEEDLE

€ 17.00

3

0949150003
ref: 3
09491-50008

JET

€ 12.50

4

1333140200
ref: 4

RING,MAIN JET FIXING

€ 8.00

5

1325216600
ref: 5

FLOAT

€ 17.50

6

1325340200
ref: 6

ARM,FLOAT

€ 10.00

7

1325401010
ref: 7

PIN,FLOAT

€ 3.00

8

1339216600
ref: 8

GASKET,MAIN JET HOLDER (NAS)

€ 3.00

9

1358140200
ref: 9

CONNECTOR

€ 7.00

10

1362940200
ref: 10

COVER,HOLDER

€ 4.00

11

1339410010
ref: 11

CLIP

€ 4.50

12-1

1338397510
ref: 12-1
13383-41510

NEEDLE, JET (6DP5-3)

€ 17.00

12-2

1338341500
ref: 12-2
13383-41510

NEEDLE JET

€ 17.00

13

1324740200
ref: 13

PLUG

€ 9.50

14

1324941320
ref: 14
13249-41310

GASKET,DRAIN PLUG

€ 5.00

15

1355140200
ref: 15

VALVE,THROTTLE

€ 50.00

16

1325940200
ref: 16

PLATE

€ 0.00

17

1325130110
ref: 17

GASKET,FLOAT CAHMBER (NAS)

€ 8.50

18

0211205168
ref: 18
02112-05167

SCREW

€ 2.50

19

0832121058
ref: 19
08321-0105A

LOCK WASHER

€ 2.00

20

1326715110
ref: 20
13267-40230

ADJUSTER

€ 7.50

21

1366116600
ref: 21

NUT

€ 5.00

22

1357341610
ref: 22

SPRING,THROTTLE VALVE RETURN

€ 8.50

23

1326640200
ref: 23

O-RING,MIXING CHAMBER

€ 0.00

24

1366116600
ref: 24

NUT

€ 5.00

25

1357703010
ref: 25
13577-48110

ADJUSTER,CABLE

€ 8.00

26

1368116601
ref: 26

CAP

€ 7.00

27

1326915010
ref: 27

SCREW,PILOT AIR

€ 10.50

28

1326801010
ref: 28

SPRING

€ 3.50

29

0211203088
ref: 29
02112-03087

SCREW

€ 1.50

30

1337016600
ref: 30

VALVE ASSY,NEEDLE

€ 45.00

31-1

0949148001
ref: 31-1
09491-48003

JET

€ 13.00

31-2

0949152001
ref: 31-2
09491-52006

JET

€ 7.50

31-3

0949154001
ref: 31-3
09491-54002

JET

€ 11.50

all assemblies
