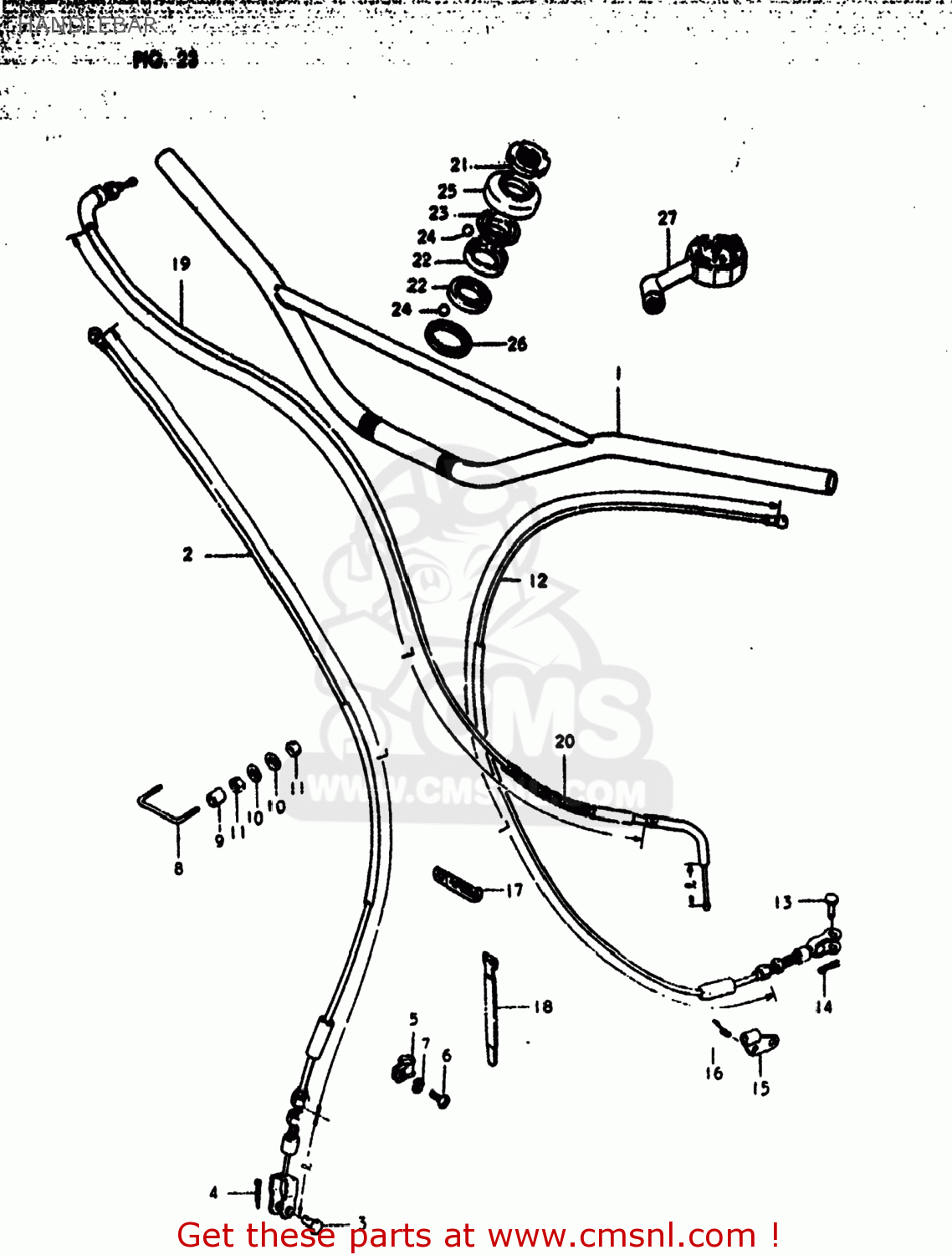

HANDLEBAR

ref

part #

description

quantity

1

561104020008C
ref: 1
56110-40400-08C

HANDLEBAR

€ 94.00

2

5810040400
ref: 2
58100-37200

CABLE ASSEMBLY,FRONT BRAKE

€ 33.50

2

5810040400
ref: 2
58100-37200

CABLE ASSEMBLY,FRONT BRAKE

€ 33.50

3

0920005001
ref: 3

PIN(L:17.5)

€ 1.50

4

0411120158
ref: 4
04111-2015A

PIN

€ 1.50

5

5862140400
ref: 5
58620-40401

GUIDE,CABLE

€ 6.50

6

0211206168
ref: 6
02112-06167

SCREW

€ 2.50

7

0832121068
ref: 7
08321-01067

LOCK WASHER

€ 2.50

8

5862641000
ref: 8

CLAMP,CABLE

€ 5.50

9

0930604002
ref: 9

BUSHING

€ 1.00

10

0832221038
ref: 10
08322-01037

WASHER

€ 2.00

11

0831011038
ref: 11
08310-0003B

NUT 3MM

€ 2.00

12

5820041301
ref: 12

CABLE ASSY,CLUTCH

€ 28.50

13

0920006004
ref: 13

PIN(L:13)

€ 1.50

14

0411120158
ref: 14
04111-2015A

PIN

€ 1.50

15

5863441300
ref: 15

STOPPER,CLUTCH CABLE

€ 9.00

16

0211206108
ref: 16
02112-06107

SCREW

€ 1.50

17

0940406401
ref: 17
09404-06432

CLAMP L:35

€ 2.50

18

0940718301
ref: 18

CLAMP

€ 6.00

19-1

5830040201
ref: 19-1
58300-40X00

CABLE ASSEMBLY,THROTTLE

€ 34.00

19-1

5830040201
ref: 19-1
58300-40X00

CABLE ASSEMBLY,THROTTLE

€ 34.00

19-2

5830040202
ref: 19-2
58300-40X00

CABLE ASSEMBLY,THROTTLE

€ 34.00

19-2

5830040202
ref: 19-2
58300-40X00

CABLE ASSEMBLY,THROTTLE

€ 34.00

20

5839927100
ref: 20

PROTECTOR,CABLE

€ 10.50

21

5163140200
ref: 21

NUT,STEERING STEM

€ 12.00

22

5161140200
ref: 22
51611-40201

RACE,STEERING,INNER,UPPER

€ 8.50

23

5162140200
ref: 23
51621-08D00

RACE,STEERING,OUTER,UPPER

€ 17.00

24

0611108003
ref: 24

BALL

€ 1.50

25

5164340200
ref: 25

SEAL,STEERING UPR DUST

€ 7.50

26

5165140010
ref: 26

DUST SEAL,STEERING HEAD

€ 7.50

27

9620041330
ref: 27

GAUGE ASSY,AIR PRESSURE

€ 77.50

all assemblies
