FRONT FORK (RM125N)
RM125 1980 (T) USA (E03)

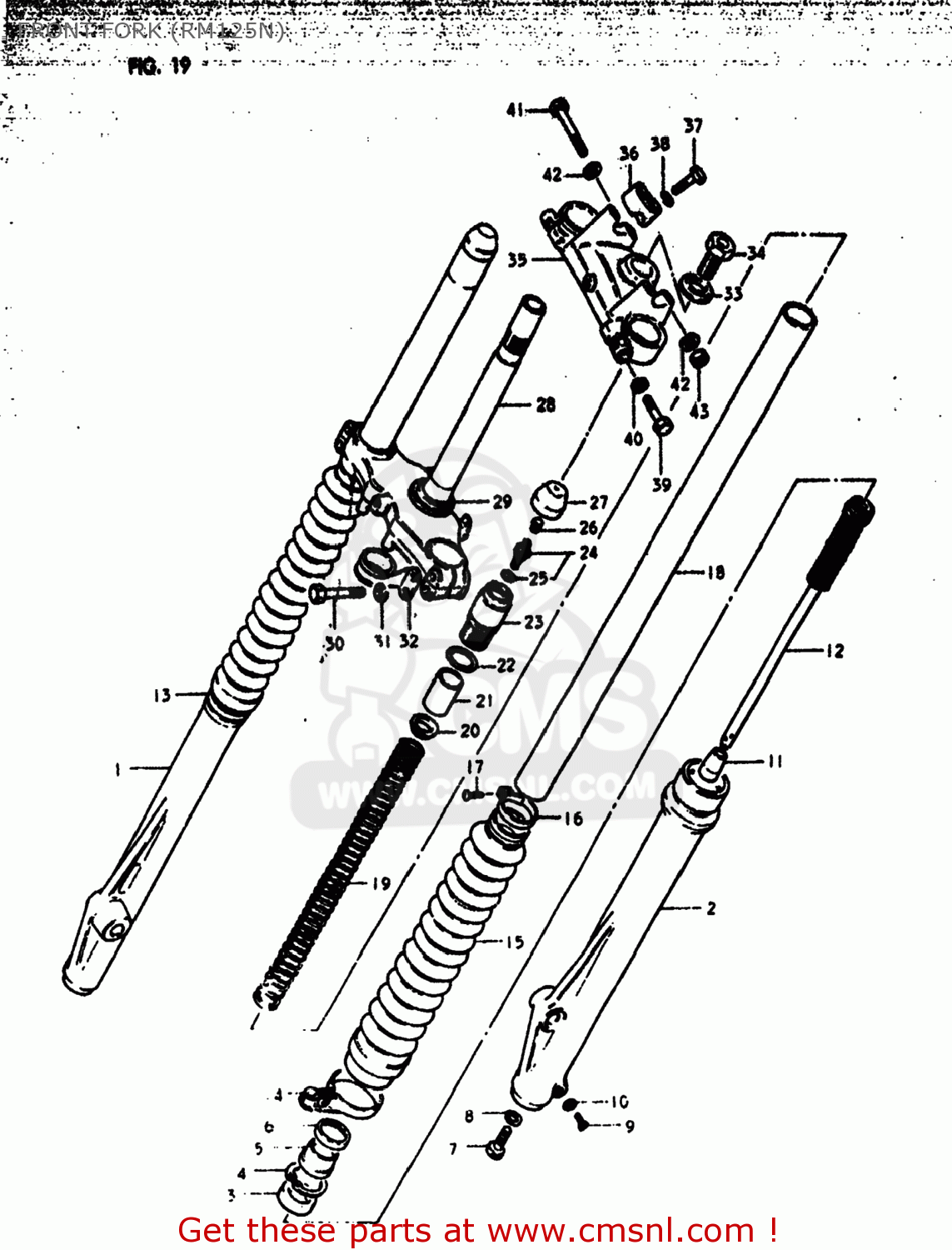

Front fork (rm125n) diagram RM125 1980 (T) USA (E03)
FRONT FORK (RM125N) RM125 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
511004020008C
ref: 0
DAMPER SET
€ 0.00
1
5113040200
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114040200
ref: 2
TUBE,OUTER,LEFT
€ 0.00
3
5115340300
ref: 3
SEAL,OIL
€ 11.50
4
5115640300
ref: 4
CIRCLIP,FORK OIL SEAL
€ 4.00
5
5117340300
ref: 5
51173-40301
DUST SEAL,FRONT FORK
€ 12.50
6
5114940300
ref: 6
CASE,DUST SEAL FRONT FORK
€ 0.00
7
5114740300
ref: 7
BOLT,CYLINDER
€ 5.50
8
5114840300
ref: 8
GASKET,CYLINDER (NAS)
€ 2.50
9
0211104087
ref: 9
02112-04087
SCREW
€ 1.50
10
5118303010
ref: 10
GASKET,DRAIN,PLUG (NAS)
€ 3.00
11
5119540300
ref: 11
PIECE,OIL LOCK
€ 0.00
12
5114640200
ref: 12
CYLINDER,FRONT FORK
€ 31.00
13
5157340300
ref: 13
BAND,FRONT FORK COVER BOOT
€ 5.00
14
5157240300
ref: 14
BAND,FRONT FORK COVER BOOT
€ 9.00
15
5157140300
ref: 15
BOOT
€ 31.50
16
5157540300
ref: 16
51575-44B00
BAND,BOOT
€ 9.00
17
0211204208
ref: 17
02112-0420A
SCREW
€ 1.00
18
5111040300
ref: 18
TUBE,FORK,INNER
€ 0.00
19
5117140200
ref: 19
SPRING
€ 0.00
20
5117240300
ref: 20
GUIDE
€ 5.00
21
5117640300
ref: 21
COLLAR,SPRING
€ 0.00
22
5111740300
ref: 22
O RING
€ 2.50
23
5135140300
ref: 23
CAP,FORK INNER TUBE
€ 37.00
24
5129349001
ref: 24
VALVE
€ 18.00
25
5111741211
ref: 25
O RING
€ 6.50
26
5129440400
ref: 26
CAP,VALVE AIR
€ 4.00
27
5118941220
ref: 27
CAP
€ 6.00
28
514104030008C
ref: 28
STEM,STEERING
€ 0.00
29
5162140030
ref: 29
51621-40X00
RACE,STEERING,OUTER,UPPER
€ 9.00
30
0110708458
ref: 30
01500-08453
BOLT 8X45
€ 2.50
31
0832121088
ref: 31
08321-01087
LOCK WASHER
€ 2.00
32
5862140300
ref: 32
58621-40301
GUIDE,CABLE
€ 14.50
33
5135641310
ref: 33
WASHER
€ 6.00
34
5135141320
ref: 34
BOLT
€ 8.50
35
513114020008C
ref: 35
HEAD,STEERING STEM
€ 155.00
36
562114030008C
ref: 36
HOLDER,HANDLEBAR
€ 7.00
37
0110708358
ref: 37
01500-0835B
BOLT
€ 3.50
38
0832121088
ref: 38
08321-01087
LOCK WASHER
€ 2.00
39
0110710458
ref: 39
01500-1045A
BOLT
€ 2.00
40
0832121108
ref: 40
08321-01107
LOCK WASHER
€ 2.00
41
0110708508
ref: 41
01500-08507
BOLT 8X50
€ 3.00
42
0832221088
ref: 42
08322-01087
WASHER
€ 2.00
43
0831012088
ref: 43
08310-00087
NUT
€ 2.00
