CHAIN GUIDE (RM125N)
RM125 1980 (T) USA (E03)

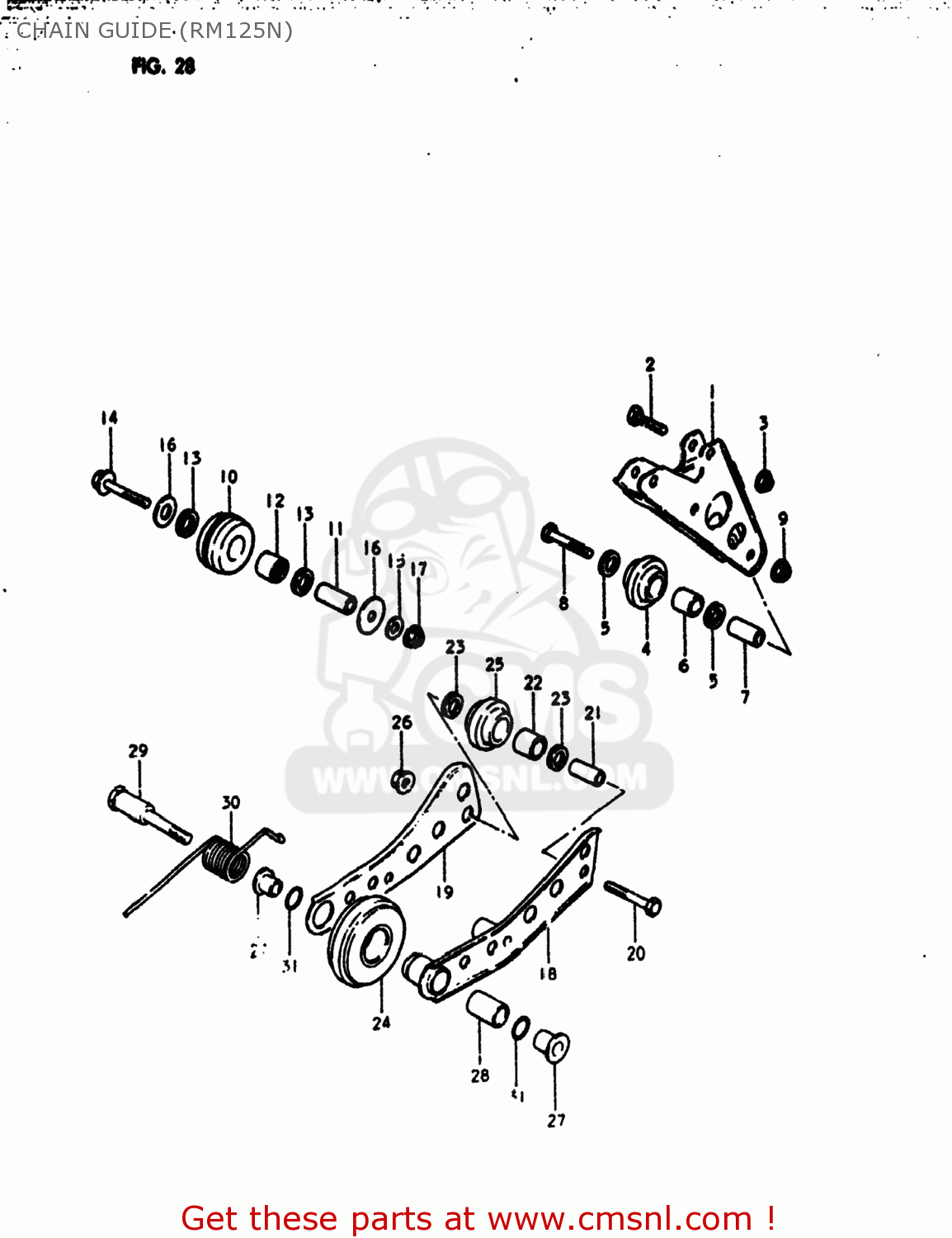

Chain guide (rm125n) diagram RM125 1980 (T) USA (E03)
CHAIN GUIDE (RM125N) RM125 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6134040200
ref: 1
GUIDE,DRIVE CHAIN
€ 16.00
2
0151706258
ref: 2
01550-06257
BOLT
€ 2.50
3
0831921068
ref: 3
08319-2106A
NUT 6MM
€ 2.00
4
6134541501
ref: 4
ROLLER,CHAIN TENSIONER LWR
€ 6.00
5
0928410004
ref: 5
SEAL,OIL(10X14.4X3.5)
€ 2.50
6
6134640400
ref: 6
SPACER,CHAIN GUIDE
€ 3.00
7
0918006075
ref: 7
SPACER(6.2X10X22.5)
€ 4.00
8
0151706358
ref: 8
01550-06357
BOLT 6X35
€ 2.50
9
0831931068
ref: 9
08319-31067
NUT
€ 2.50
10
6134540400
ref: 10
ROLLER,CHAIN GUIDE
€ 10.50
11
0918006075
ref: 11
SPACER(6.2X10X22.5)
€ 4.00
12
0926310007
ref: 12
BEARING(10X14X15)
€ 21.00
13
0928410004
ref: 13
SEAL,OIL(10X14.4X3.5)
€ 2.50
14
0151706408
ref: 14
01550-06407
BOLT
€ 2.50
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
16
0916006028
ref: 16
WASHER(6.5X18X1)
€ 1.50
17
0831921068
ref: 17
08319-2106A
NUT 6MM
€ 2.00
18
6135040402
ref: 18
TENSIONER,CHAIN
€ 14.00
19
6135240401
ref: 19
61352-40402
PLATE,CHAIN TENSIONER
€ 3.00
20
0151706358
ref: 20
01550-06357
BOLT 6X35
€ 2.50
21
0918006075
ref: 21
SPACER(6.2X10X22.5)
€ 4.00
22
6134640400
ref: 22
SPACER,CHAIN GUIDE
€ 3.00
23
0928410004
ref: 23
SEAL,OIL(10X14.4X3.5)
€ 2.50
24
6134540200
ref: 24
ROLLER,CHAIN GUIDE
€ 4.00
25
6134541501
ref: 25
ROLLER,CHAIN TENSIONER LWR
€ 6.00
26
0831931068
ref: 26
08319-31067
NUT
€ 2.50
27
6134740400
ref: 27
SPACER,CHAIN TENSIONER
€ 4.50
28
6135540400
ref: 28
BUSHING,CHAIN TENSIONER
€ 9.50
29
0911108036
ref: 29
BOLT
€ 4.00
30
0944817011
ref: 30
09448-17011-XC0
SPRING
€ 6.00
31
0928010001
ref: 31
O RING(D:1.3,ID:9.6)
€ 2.00
