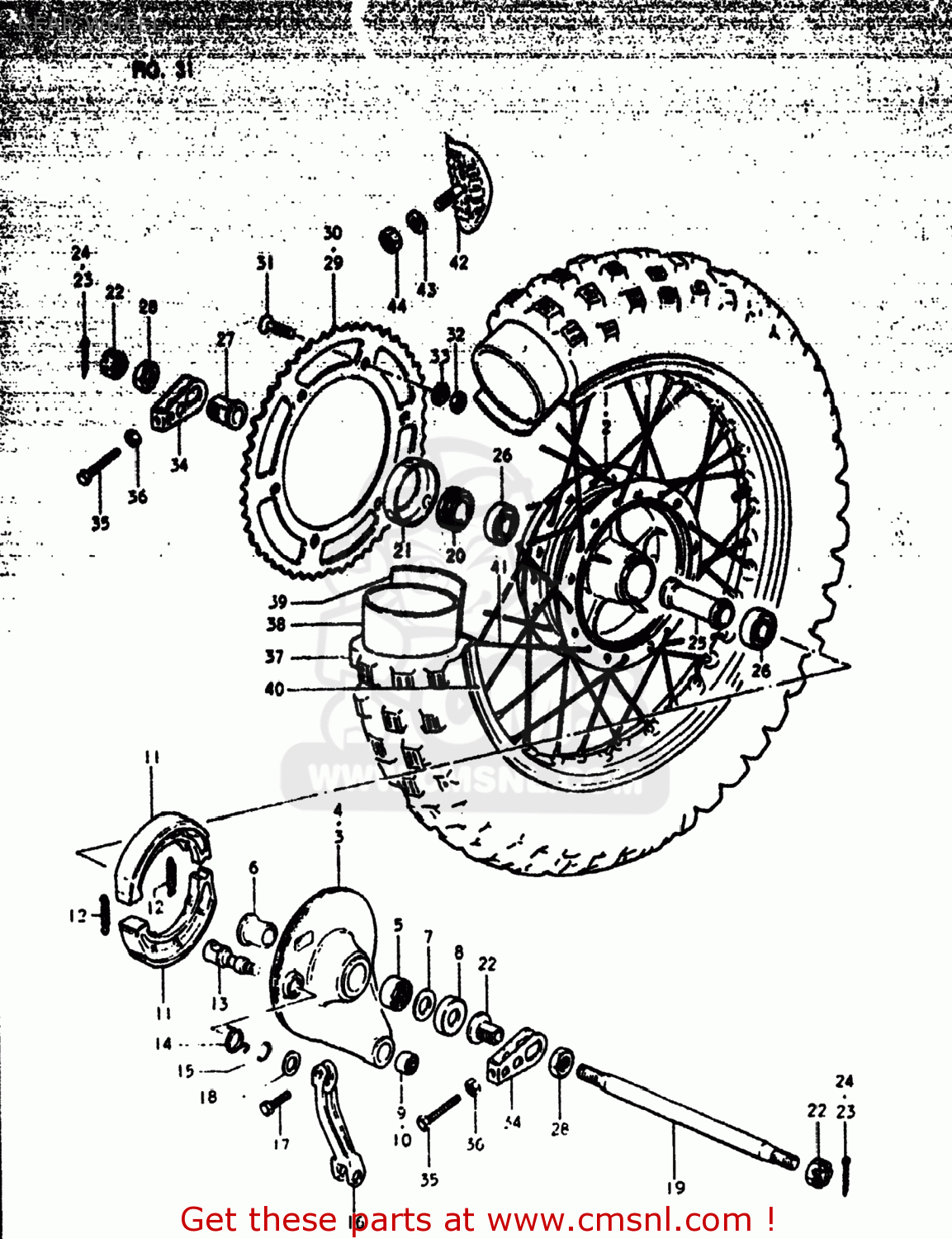

REAR WHEEL

ref

part #

description

quantity

1

6411040200
ref: 1
64110-40202

HUB,REAR

€ 50.50

1

6411040200
ref: 1
64110-40202

HUB,REAR

€ 50.50

2

6411040201
ref: 2
64110-40202

HUB,REAR

€ 50.50

3

6421040200
ref: 3
64210-40202

PANEL,REAR HUB

€ 72.00

4

6420041840
ref: 4
64200-41841

PANEL SET,REAR HUB

€ 80.50

5

0926322025
ref: 5

BEARING(22X29X25)

€ 31.50

6

6421340300
ref: 6

SPACER,REAR HUB PANEL

€ 28.00

7

0916015026
ref: 7
09160-15036

WASHER

€ 3.00

8

6484540300
ref: 8
61262-22A00

COVER, PANEL DUST SEAL

€ 7.50

9

0931910008
ref: 9

BUSH

€ 8.00

10

6435240400
ref: 10
64352-40401

SPHERICAL BEARING,TORQUE

€ 69.50

11

6441040200
ref: 11
64400-13810

SHOE,BRAKE

€ 32.00

12

0944307001
ref: 12
09443-07025

SPRING(L:34)

€ 2.50

13

5444101002
ref: 13

CAM,FR BRAKE

€ 19.50

14

0944830005
ref: 14

SPRING

€ 19.00

15

0928012001
ref: 15

O RING(D:2.5,ID:11.4)

€ 2.50

16

6445140200
ref: 16

LEVER,RR BRAKE CAM

€ 601.00

17

0110706258
ref: 17
01500-06257

BOLT

€ 2.00

18

0916012011
ref: 18

WASHER(12.5X20X1)

€ 1.50

19

6471140200
ref: 19
64711-40201

AXLE,REAR

€ 44.50

20

6475040200
ref: 20

SPACER,REAR AXLE,RIGHT

€ 9.00

21

6475240200
ref: 21

HOLDER,REAR AXLE SPACER

€ 5.00

22

0914114004
ref: 22

NUT

€ 5.00

23

0411130408
ref: 23
04111-3040A

PIN 30X40

€ 1.50

24

0411130308
ref: 24
04111-3030A

COTTER PIN

€ 1.50

25

6473040300
ref: 25
64730-40301

SPACER,REAR HUB BEARING

€ 23.50

26

0812362027
ref: 26

BEARING

€ 14.50

27

6479140200
ref: 27

SPACER,CHAIN ADJUSTER

€ 13.50

28

0914022006
ref: 28

NUT

€ 6.00

29-1

6451140201
ref: 29-1
64511-40202

SPROCKET,REAR

€ 29.00

29-2

6451140211
ref: 29-2
64511-40212

SPROCKET,REAR

€ 52.00

29-3

6451140221
ref: 29-3
64511-40222

SPROCKET,REAR

€ 30.00

30-1

6451140260
ref: 30-1
64511-40261

SPROCKET,REAR

€ 87.50

30-2

6451140270
ref: 30-2
64511-36E00

SPROCKET,REAR

€ 99.00

30-3

6451140265
ref: 30-3
64511-40266

SPROCKET,REAR

€ 118.50

31

0912008004
ref: 31

SCREW(8X33.5)

€ 3.00

32

0831931088
ref: 32
08319-3108A

NUT

€ 2.50

33

0832211088
ref: 33
08322-01087

WASHER

€ 2.00

34

6141040200
ref: 34
61410-40201

ADJUSTER,CHAIN

€ 19.00

35

0910408006
ref: 35
09104-08034

BOLT

€ 3.00

36

0831012088
ref: 36
08310-00087

NUT

€ 2.00

37

6510040230
ref: 37
65100-14130

TIRE

€ 0.00

38

6520041330
ref: 38
65200-42AA0

TUBE ASSEMBLY,WHEEL,INNER

€ 34.00

39

6526133030
ref: 39

PROTECTOR,INNER TUBE

€ 5.50

40

6531140200
ref: 40

RIM,REAR WHEEL

€ 119.00

41-1

6532040200
ref: 41-1

SPOKE SET,REAR

€ 54.50

41-2

6532040201
ref: 41-2

SPOKE SET,REAR

€ 54.50

42

6527030001
ref: 42
65270-43D00

STOPPER,BEAD

€ 30.50

43

0832211088
ref: 43
08322-01087

WASHER

€ 2.00

44

0831012088
ref: 44
08310-00087

NUT

€ 2.00

all assemblies
