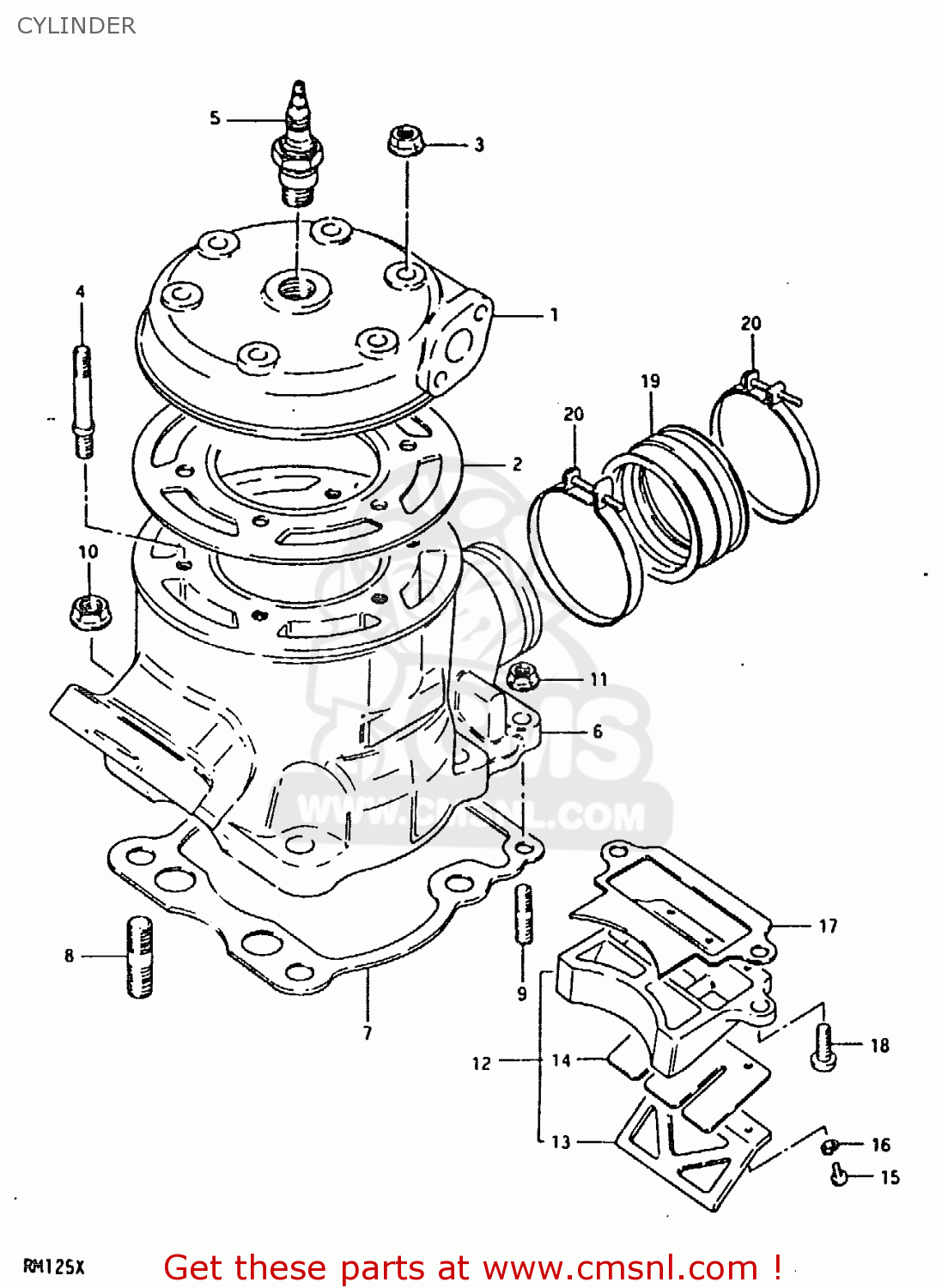

CYLINDER

ref

part #

description

quantity

1

1111114101
ref: 1

HEAD,CYLINDER

€ 95.50

2

1114114101
ref: 2

GASKET,CYLINDER HEAD (MCA)

€ 26.50

3

0831616068
ref: 3

NUT

€ 2.50

4

0910806043
ref: 4

BOLT,STUD

€ 4.50

5-1

0948200208
ref: 5-1

PLUG,SPARK(NGK B-8EN)

€ 16.00

5-2

0948200158
ref: 5-2

SPARK PLUG

€ 10.00

6

1121014102
ref: 6

CYLINDER

€ 315.00

7

1124114101
ref: 7

GASKET,CYLINDER (MCA)

€ 14.00

8

0142108258
ref: 8

STUD 8X25

€ 2.50

9

0142106208
ref: 9

STUD 6X20

€ 2.50

10

0831616088
ref: 10

NUT

€ 2.50

11

0831616068
ref: 11

NUT

€ 2.50

12

1315014100
ref: 12

VALVE ASSEMBLY,REED

€ 90.50

13

1315214100
ref: 13

STOPPER,REED VALVE

€ 4.50

14

1315314100
ref: 14

VALVE,REED

€ 90.50

15

0211203088
ref: 15

SCREW

€ 1.50

16

0832121038
ref: 16

LOCK WASHER

€ 1.50

17

1315614100
ref: 17

GASKET,REED VALVE (MCA)

€ 3.50

18

0211206168
ref: 18

SCREW

€ 2.50

19

1311140210
ref: 19

PIPE,INTAKE

€ 15.50

20

0940250306
ref: 20

CLAMP

€ 6.00
